MT-S-AP Seismic rod hinge

Configurator
Technical Data
Documents
Features & Applications
Related Products
LCG003635_v1 (227718)
LCG003638_v1_cropped (227710)
LCG003640_v1_cropped (227708)
LCG003637_v1_cropped (227709)
IS_MQS-AP_0001 (227386)

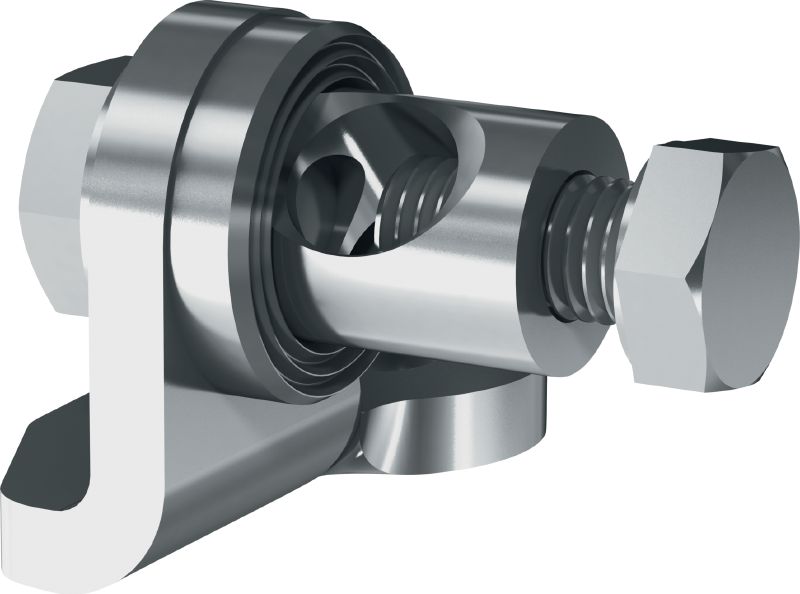

Galvanised threaded rod hinge for seismic bracing of MEP support structures

  • Material composition: Base plate: S355MC - DIN EN 10149-2, Pin: 11SMn30+C - DIN EN 10277-3, Threaded washer: 11SMn30+C - DIN EN 10277-3, Hexagon screws: Steel grade 8.8, Washer: Galvanised steel
  • Surface finish: Indoor Coated - Electro galvanised
  • Material thickness: 6 mm

Choose options

Diameter - D
  • 9.4 mm
  • 11.6 mm
Pack size
  • 10 pc
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
From £34.80

Technical Data

Details
Technical illustrations
Material composition
Base plate: S355MC - DIN EN 10149-2, Pin: 11SMn30+C - DIN EN 10277-3, Threaded washer: 11SMn30+C - DIN EN 10277-3, Hexagon screws: Steel grade 8.8, Washer: Galvanised steel
Surface finish
Indoor Coated - Electro galvanised
Material thickness
6 mm
Environmental conditions
Dry indoor conditions (C1) Indoor with temporary condensation (C2)

Documents

Technical information
Operating Instruction
pdf Seismic_Manual_0522_W4571_EN, English [ 8.8 MB ]

Features & Applications

Features

  • Rapid installation – helps to save time on-site thanks to single-anchor fastening: all you need is the single pre-assembled screw and no additional nuts
  • High load capacity – designed for optimal seismic load transfer to the support
  • Versatile – load range suitable for a wide range of light- and medium-duty MEP installations
  • Engineering support available – contact your local Hilti team for project-specific advice
  • Bracing pre-assembly possible – providing additional productivity in seismic support installation

Applications

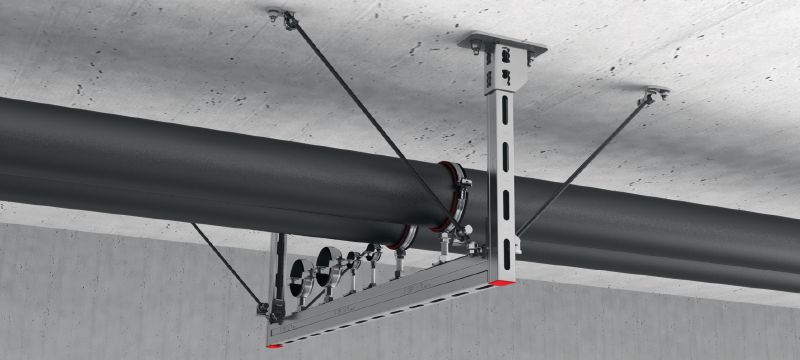

  • Installing pipes, cable trays and air duct supports in seismic-relevant areas
  • Fastening threaded rod seismic bracing to concrete or connecting to MQS-W seismic angles
  • Recommended for use in dry, interior environments

For approval or certificate information, please see individual items.
