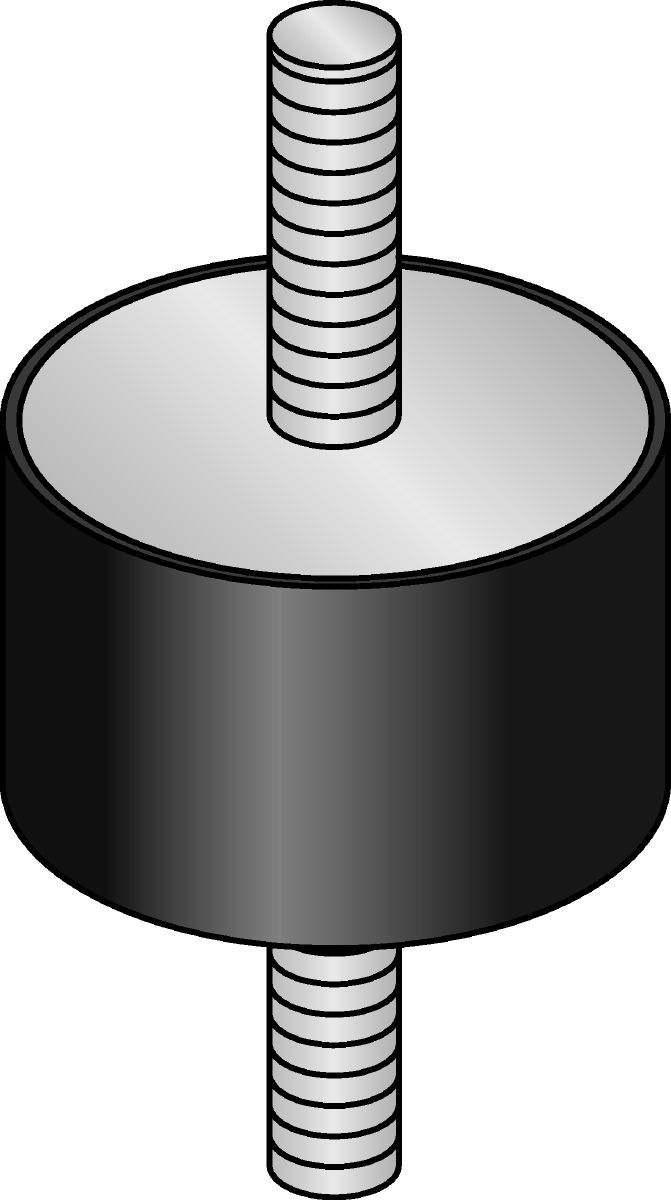

MVI-T Galvanised silencer
Silencer MVI-M10 T2 #386552
Galvanised silencer for use with compressive loads
- Approvals: Acustic insulaton DIN 4109 inspected
- Thread connection - M: M10
- For use with: MQ system
Choose options
Thread connection - M
- M10
For use with
- MQ system
Maximum shear load - F
- 300 N
Width - B
- 25 mm
Pack size
- 20 pc
Quantity
Packs
Total Piece
20
Discounted net
£36.00
£1.80 / 1 Piece
Technical Data
Approvals
Acustic insulaton DIN 4109 inspected
Thread connection - M
M10
For use with
MQ system
Maximum shear load - F
300 N
Maximum compression load - F
700 N
Material composition
Connecting part: chromated galvanized steel, Insulation material: EPDM
Resistance
Sunlight, weathering, environmental influences
Surface finish
Indoor Coated - Electro galvanised
Environmental conditions
Dry indoor conditions (C1) Indoor with temporary condensation (C2)
Hardness insulation material
55° ±5° Shore A
Temperature resistance
-30 - 150 °C

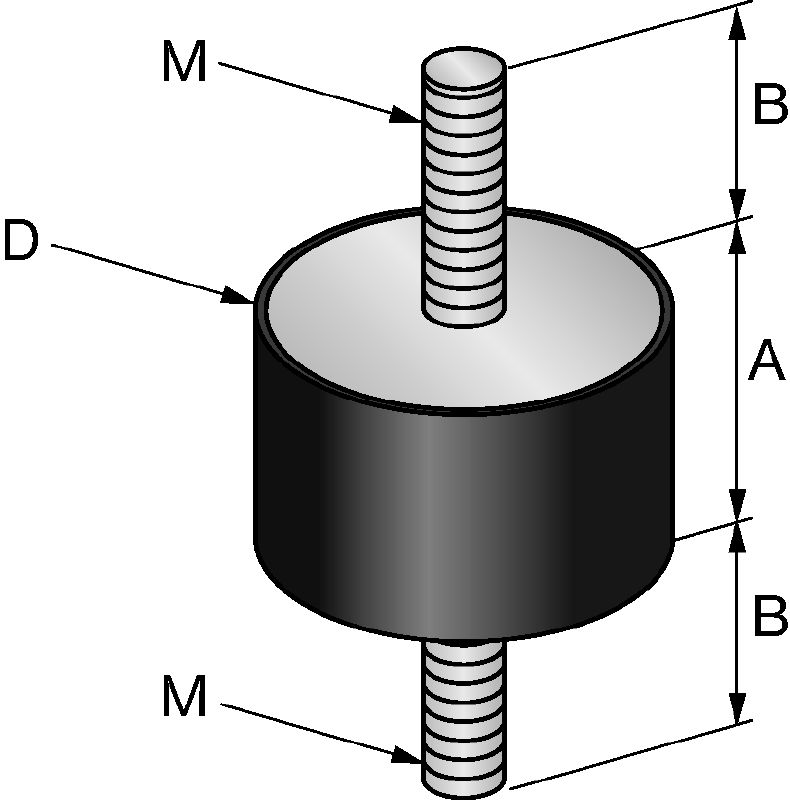

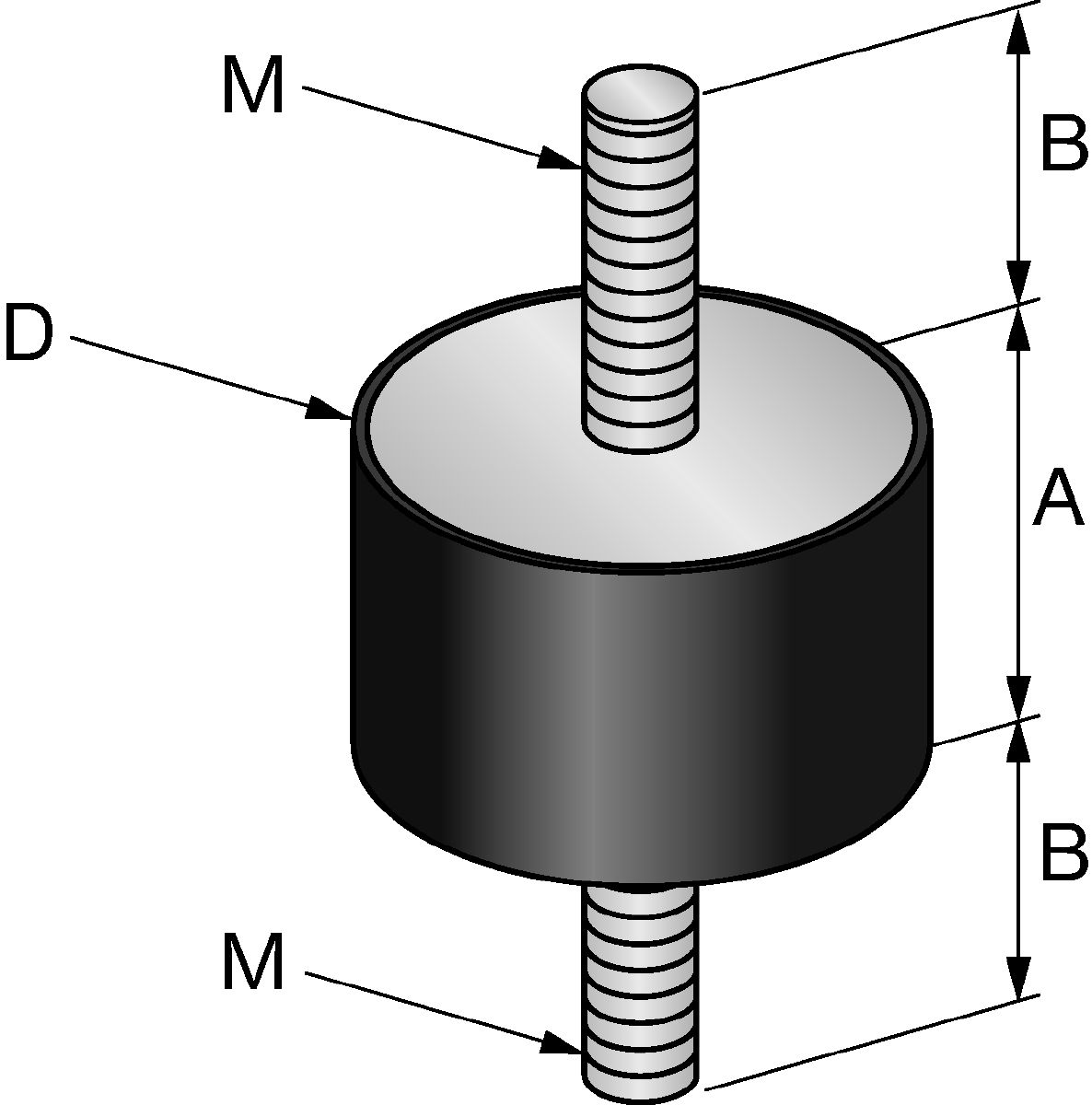

A
30 mm
Width - B
25 mm
Documents
Features & Applications
Features
- Can be fitted directly to installation channels and brackets
- Designed to be reliable and easy to use
Applications
- Sound absorber for compressive loads
- Recommended for use in dry, interior environments
- Suitable for M8 connections
