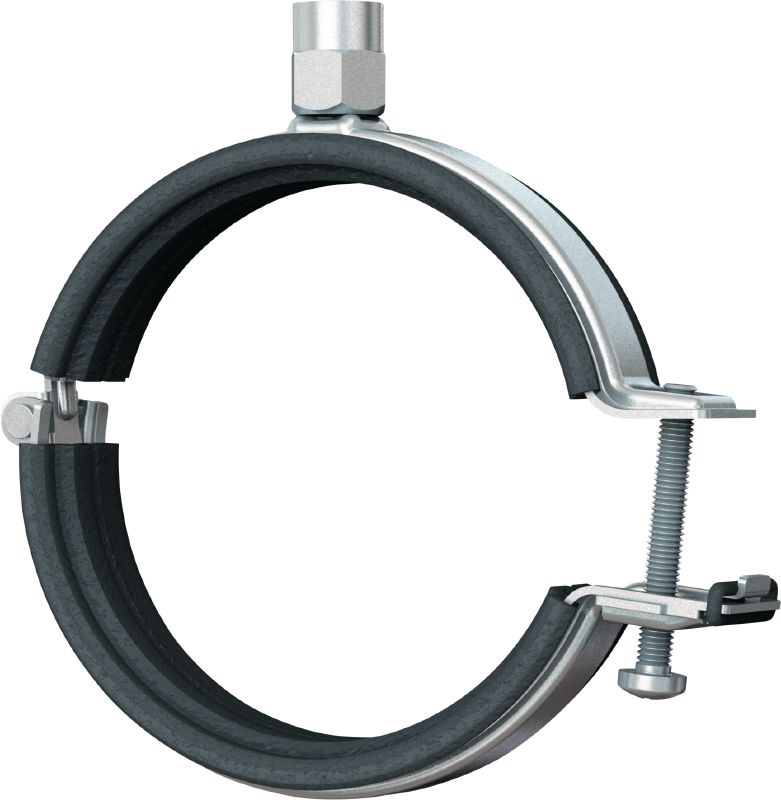

MP-L-I Quick-close light-duty pipe clamp

Pipe clamp MP-L-I 93-103 M8/M10 #2172926

Galvanised pipe clamp with sound insulation and quick closure for high productivity in light-duty applications

  • Clamping range - D: 93 - 103 mm
  • Thread connection - M: M8, M10
  • Maximum load - F: 800 N
premium

Choose options

Clamping range - D
  • 10 - 14 mm
  • 15 - 20 mm
  • 20 - 26 mm
  • 26 - 32 mm
  • 32 - 38 mm
  • 38 - 45 mm
  • 45 - 53 mm
  • 54 - 63 mm
  • 63 - 72 mm
  • 73 - 82 mm
  • 83 - 92 mm
  • 93 - 103 mm
  • 104 - 114 mm
  • 115 - 128 mm
  • 129 - 142 mm
  • 143 - 156 mm
  • 157 - 170 mm
Thread connection - M
  • M8, M10
Pack size
  • 10 pc
  • 25 pc
  • 50 pc
Product options
Quantity
Packs
Total Piece
25
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net

£204.00

£8.20 / 1 Piece

Technical Data

Clamping range - D
93 - 103 mm
Thread connection - M
M8, M10
Maximum load - F
800 N
Approvals
ETA
Noise reduction
18.5 dB (A)
Temperature resistance
-40 - 110 °C
Material composition
DC01 - DIN EN 10130
Surface finish
Indoor Coated - Electro galvanised
Environmental conditions
Dry indoor conditions (C1) Indoor with temporary condensation (C2)
Insulation material
EPDM rubber
Hardness insulation material
60° ±5° Shore A
Clamping screw
M5
Tightening torque
2 Nm
Cross section thickness - s
1.2 mm
Cross section width - b
20 mm
Width - B
138 mm
Product class
Premium
Distance centre pipe to top - h
76 mm
Max. extension from centre - b1
75 mm

Documents

Features & Applications

Features

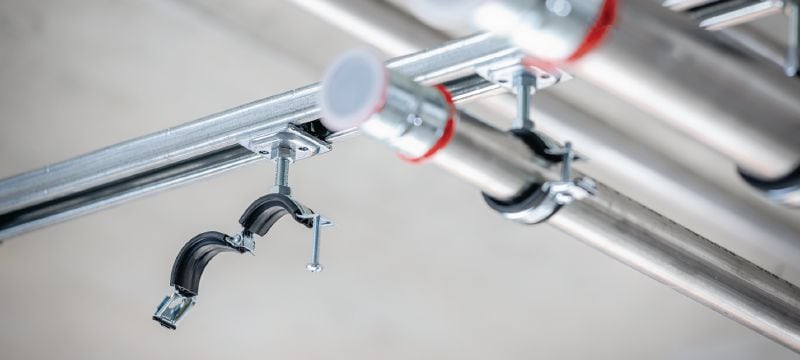

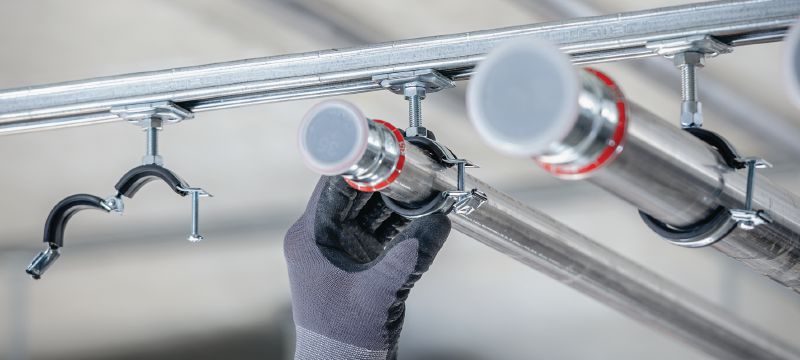

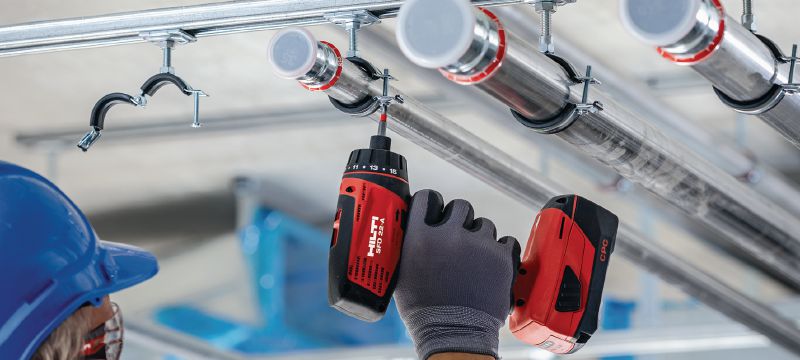

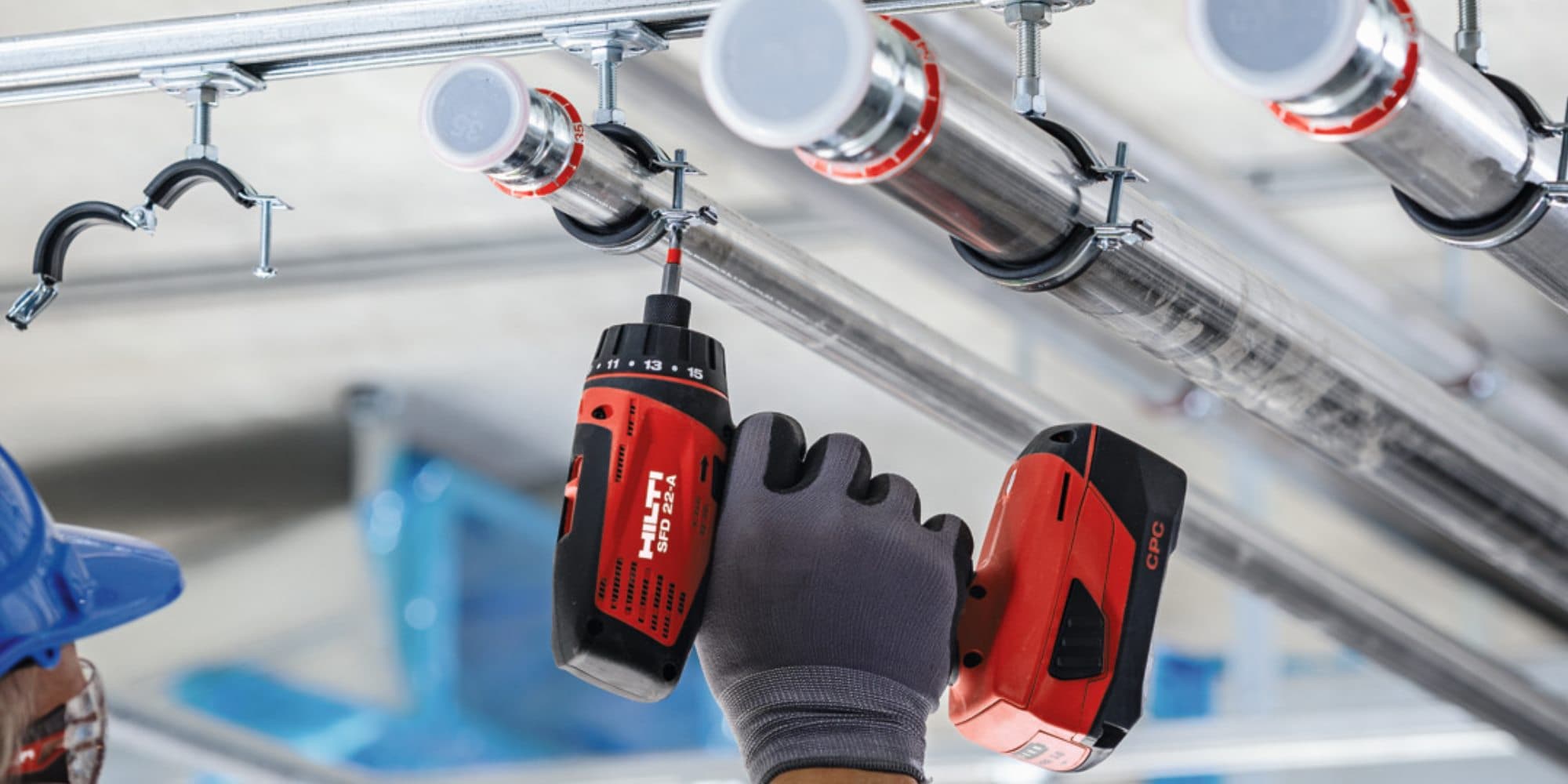

  • One-screw safety flap closure – easy single-handed closing and re-opening
  • Complete clamping range – in every size from the smallest to largest available diameter across the entire product range
  • Secured hinge with wide, infinitely adjustable opening angle
  • Safety flap closure mechanism prevents unintentional re-opening
  • Securely attached profiled rubber inlay with tested sound decoupling values

Applications

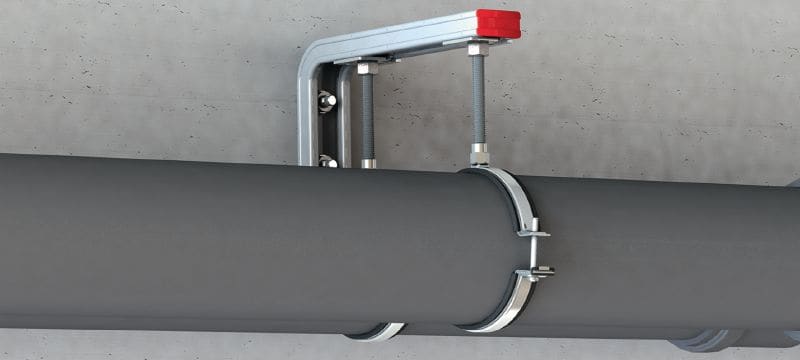

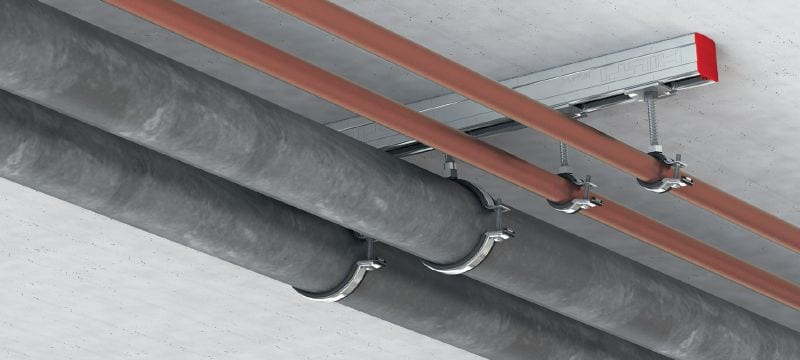

  • Light-duty pipe installations up to 6"
  • Fastening fresh water, waste water and heating pipes
  • Sanitary and heating applications with pipes of various materials
  • Recommended for use in dry, interior environments

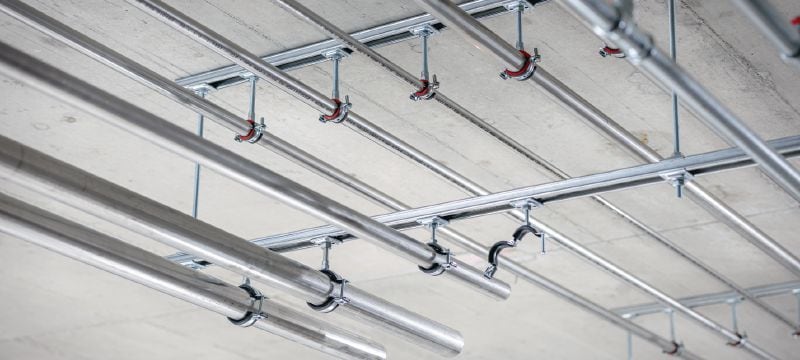

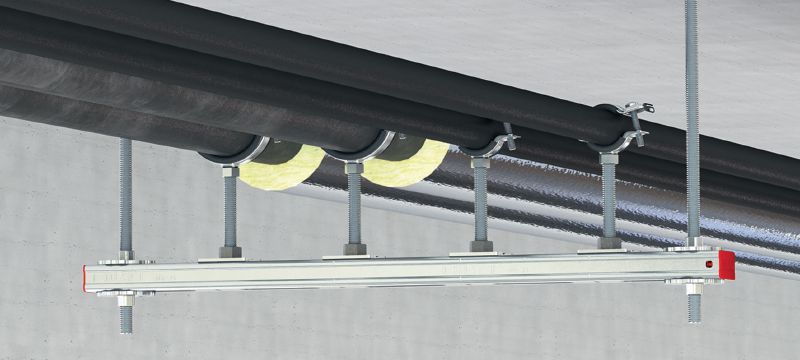

  • Ceiling, floor and wall applications
