MP-H Quick-close light-duty pipe clamp
Galvanised pipe clamp with quick closure for high productivity in light-duty applications
- Approvals: ETA
- Material composition: DC01 - DIN EN 10130
- Surface finish: Indoor Coated - Electro galvanised
standard
Choose options
Clamping range - D
- 20 - 25 mm
- 25 - 31 mm
- 31 - 38 mm
- 38 - 45 mm
- 45 - 52 mm
- 52 - 59 mm
- 59 - 66 mm
- 66 - 74 mm
- 74 - 83 mm
- 83 - 92 mm
- 92 - 101 mm
- 101 - 110 mm
- 110 - 119 mm
- 119 - 127 mm
- 127 - 137 mm
- 155 - 163 mm
- 163 - 172 mm
Thread connection - M
- M8, M10
Pack size
- 10 pc
- 25 pc
Quantity
Packs
Total Pieces
1
Discounted net
From £46.00
Technical Data
Approvals
ETA
Material composition
DC01 - DIN EN 10130
Surface finish
Indoor Coated - Electro galvanised
Environmental conditions
Dry indoor conditions (C1) Indoor with temporary condensation (C2)
Product class
Standard
Documents
Features & Applications
Features
- Two-screw pipe clamp with side swiveling mechanism
- Complete clamping range – in every size from the smallest to largest available diameter across the entire product range
- Click closure for easier and faster pre-fixing
- Welded M8/M10 double connection head for more flexibility
- Clamping range without gaps
Applications

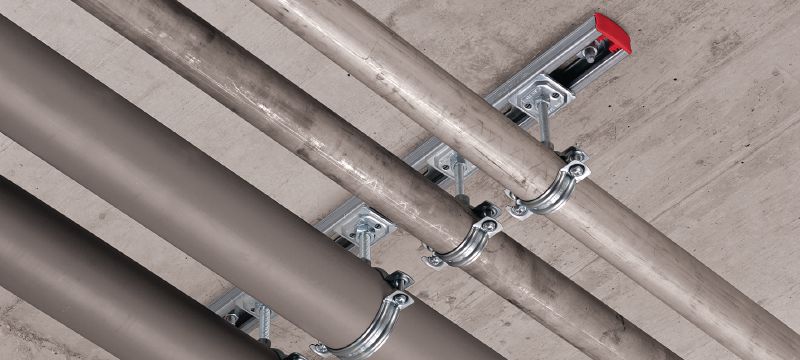

- Light-duty pipe installations up to 6" (or 172mm)
- Fastening fresh water, waste water and heating pipes
- Sanitary, heating and gas applications with pipes of various materials
- Recommended for use in dry, interior environments
- Heating and plumbing pipe installation
For approval or certificate information, please see individual items.
