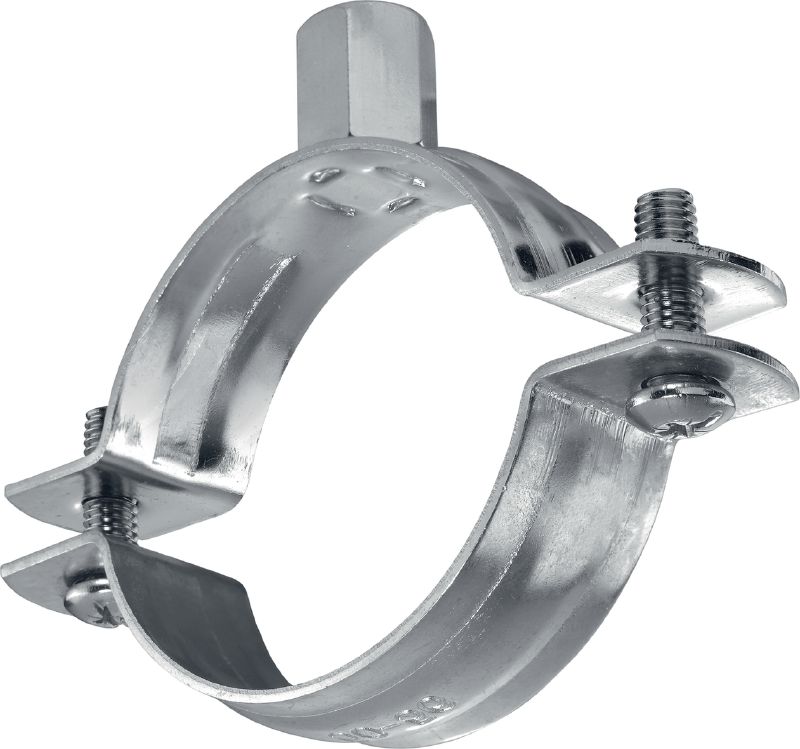

MPN-R pipe clamp
Resid. pipe ring MPN-R 12-14 M8 #432735
Stainless steel (A4) pipe clamp without sound insulation for medium-duty applications
- Clamping range - D: 12 - 14 mm
- Thread connection - M: M8
- Maximum load - F: 1200 N
standard
Choose options
Clamping range - D
- 12 - 14 mm
Thread connection - M
- M8
Pack size
- 25 pc
Quantity
Packs
Total Pieces
25
Discounted net
£305.00
£12.20 / 1 Piece
Technical Data
Clamping range - D
12 - 14 mm
Thread connection - M
M8
Maximum load - F
1200 N
Material composition
Stainless steel, 1.4401 (A4) - EN 10088, AISI 316
Surface finish
Outdoor Plus - Stainless Steel
Environmental conditions
Outdoor high pollution (C4 – high / C5)
Clamping screw
M6
Tightening torque
2 Nm
Cross section thickness - s
1.2 mm
Cross section width - b
20 mm
Width - B
47 mm
Product class
Standard
Distance centre pipe to top - h
14 mm
Documents
Features & Applications
Features
- Short connection head allows closer installation to wall or ceiling
- Double connection head on sizes above 1" for more flexibility
- Combi-slot cheese head screw
Applications
- medium-duty pipe installations up to 220 mm

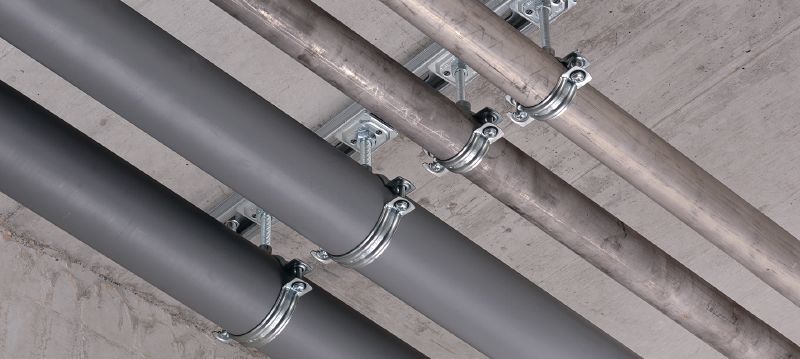

- Fastening fresh water pipes and heating pipes in corrosive environments
