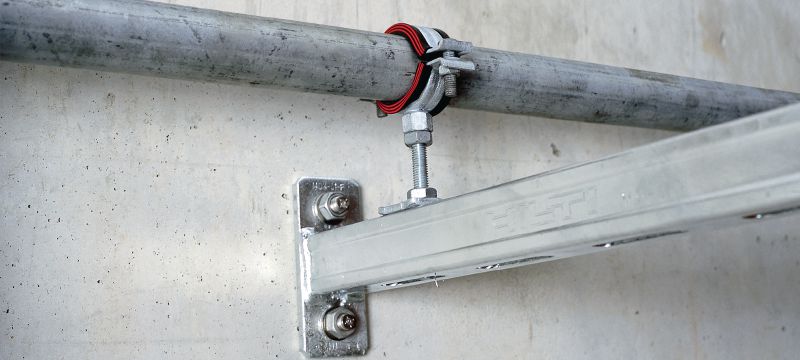

hot-dip galvanised (HDG) pipe clamp with sound insulation for heavy-duty applications

  • Approvals: Fire class B2
  • Noise reduction: 18 dB (A)
  • Temperature resistance: -50 - 120 °C
premium

Choose options

Clamping range - D
  • 20 - 25 mm
  • 25 - 30 mm
  • 32 - 38 mm
  • 40 - 45 mm
  • 48 - 54 mm
  • 57 - 64 mm
  • 70 - 77 mm
  • 82 - 90 mm
Thread connection - M
  • M10
Pack size
  • 10 pc
  • 25 pc
Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net

From £377.00

Technical Data

28513_X15.eps
Approvals
Fire class B2
Noise reduction
18 dB (A)
Temperature resistance
-50 - 120 °C
Material composition
S235JR - DIN EN 10025
Surface finish
Outdoor Coated - HDG
Environmental conditions
Outdoor, low to moderate pollution (C3 / C4 - low)
Insulation material
EPDM rubber
Hardness insulation material
50° ±5° Shore A
Product class
Premium

Documents

Features & Applications

Features

  • Closure screws secured to help prevent loss
  • Solid welded-on connection head
  • Clamping screws secured against loss
  • Profiled clamp band for higher rigidity
  • High resistance to corrosion

Applications

  • heavy-duty pipe installations up to 3"
  • Installing industrial pipes
  • Mounting process and control queues

For approval or certificate information, please see individual items.
