MI-CF Refrigeration pipe clamp

Configurator
Technical Data
Documents
Features & Applications
Related Products
LCG003133_v6 (227417)
LCG003132_v5 (227416)
LCG003134_v7_cropped (227414)
IS_PC_MI-CF_-LS_0001_(M8-10_G_M) (4502005)

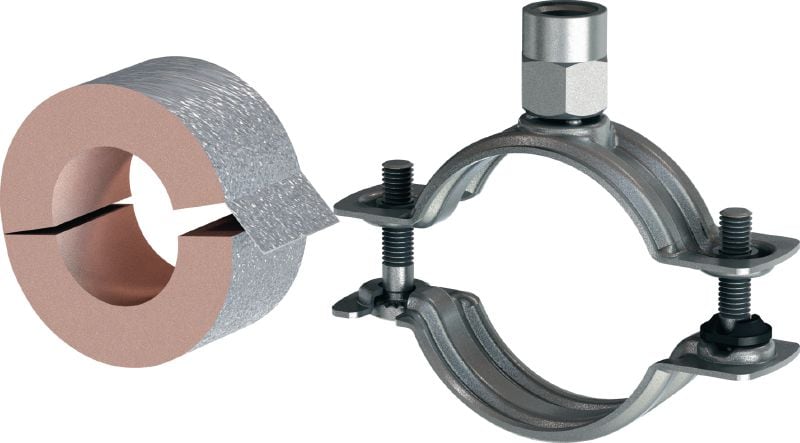

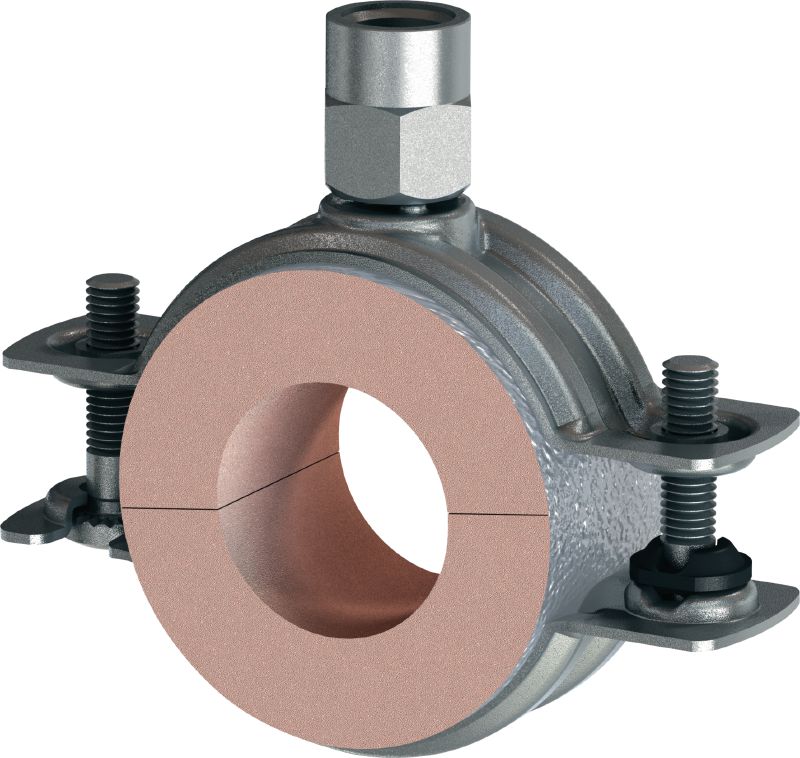

Galvanised pipe clamp without load sharing for refrigeration applications with a variety of insulation thicknesses

  • Approvals: BS 476 Part 6, BS 476 Part 7, Fire class B2
  • Temperature resistance: -70 - 120 °C
  • Material composition: Closed-cell CFC-free polyisocyanurate (PIR) foam, outside aluminium foil

Choose options

Thickness - T
  • 25 mm
  • 30 mm
Diameter - D
  • 21.3 mm
  • 26.9 mm
Thread connection - M
  • M8, M10
Pack size
  • 16 pc
  • 20 pc
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
From £348.80

Technical Data

Details
Technical illustrations
Approvals
BS 476 Part 6, BS 476 Part 7, Fire class B2
Temperature resistance
-70 - 120 °C
Material composition
Closed-cell CFC-free polyisocyanurate (PIR) foam, outside aluminium foil
Surface finish
Indoor Coated - Electro galvanised
Environmental conditions
Dry indoor conditions (C1) Indoor with temporary condensation (C2)
Diffusion resistance
Impermeable
Thermal conductivity (λ approx. value)
0.03 W/mK
Compressive strength
0.7 N/mm²
Approx. density
80 kg/m³

Documents

Documentation
Test Report
Approval document
Sustainability Documentation
Operating Instruction
pdf Pipe clamps selection Poster, English [ 1.4 MB ]

Features & Applications

Features

  • Simpler and faster pre-fitting of most common pipe sizes due to the two-screw pipe clamp with swivel mechanism
  • Large pipe diameters with higher loads can be installed with two-screw heavy-duty pipe clamps
  • All-in-one parcel – pipe clamp and insulation core – simplifies handling on the jobsite and in the warehouse
  • Free of H-CFCs or CFCs
  • Easy initial installation of the pipe thanks to the two-screw pipe ring with pivot mechanism

Applications

  • Fastening pipes for refrigeration and air conditioning systems
  • Mounting refrigeration pipes in industrial and air conditioning applications

For approval or certificate information, please see individual items.
