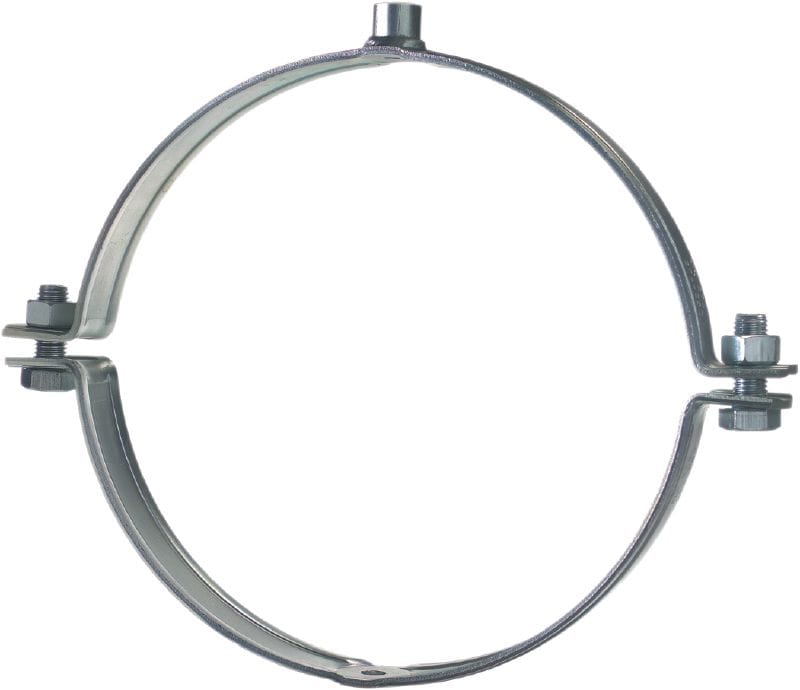

MP-MX heavy-duty pipe clamp

Heavy-d. pipe ring MP-MX 3" M10/M12 #372274

14653.tif
17221.tif
IS_PR_0018_X03.eps

Galvanised pipe clamp without sound insulation for extra heavy-duty applications

  • Clamping range - D: 88 - 93 mm
  • Thread connection - M: M10, M12
  • Maximum load - F: 4000 N
standard

Choose options

Clamping range - D
  • 88 - 93 mm
  • 163 - 170 mm
  • 210 - 218 mm
  • 219 - 228 mm
  • 267 - 274 mm
Thread connection - M
  • M10, M12
  • M16
Pack size
  • 10 pc
  • 25 pc
 Product options
Quantity
Packs
Total Pieces
25
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
£885.00
£35.40
/
1 Piece

Technical Data

Clamping range - D
88 - 93 mm
Thread connection - M
M10, M12
Maximum load - F
4000 N
Material composition
DD11 - DIN EN 10111
Surface finish
Indoor Coated - Electro galvanised
Environmental conditions
Dry indoor conditions (C1) Indoor with temporary condensation (C2)
Clamping screw
M10
Tightening torque
5 Nm
Cross section thickness - s
3 mm
Cross section width - b
30 mm
Width - B
161 mm
Product class
Standard
Distance centre pipe to top - h
74 mm

Documents

pdf Pipe clamps selection Poster, English [ 1.4 MB ]

Features & Applications

Features

  • Solid connection head, welded all around
  • Strong clamping screws for high load values
  • Suitable for installing pipes under dynamic loading if used with vibration-damping components

Applications

  • heavy-duty pipe installations up to 508 mm
  • Installing industrial pipes
  • Mounting process and control queues
  • heavy-duty plumbing and heating applications
  • Suitable for use in conjunction with vibration-reducing elements for pipework under dynamic loading
