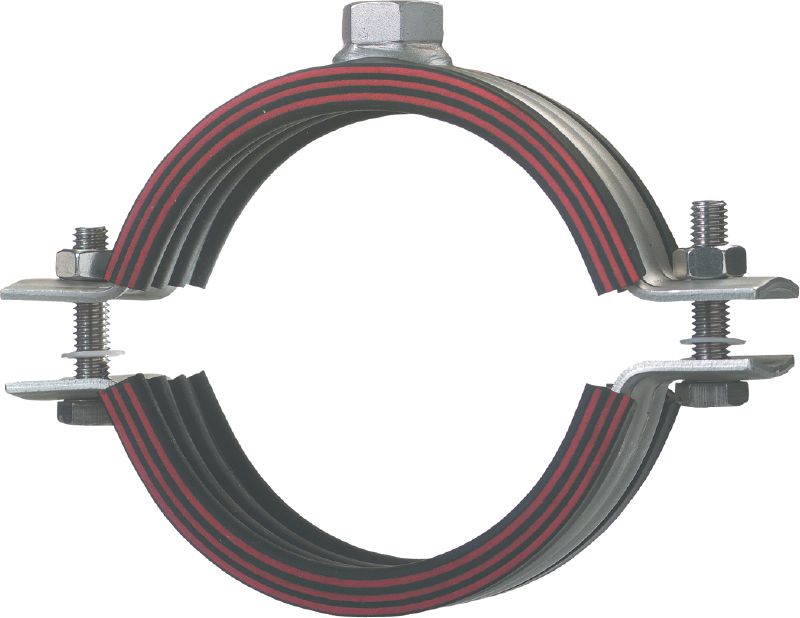

MP-MRI heavy-duty pipe clamp

Pipe ring MP-MRI 159 M16 stnls #372054

Stainless steel (A4) pipe clamp with sound insulation for heavy-duty applications

  • Clamping range - D: 156 - 162 mm
  • Thread connection - M: M16
  • Maximum load - F: 4000 N
premium

Choose options

Clamping range - D
  • 82 - 90 mm
  • 97 - 103 mm
  • 108 - 114 mm
  • 122 - 127 mm
  • 137 - 142 mm
  • 156 - 162 mm
  • 162 - 168 mm
  • 217 - 224 mm
Thread connection - M
  • M10
  • M12
  • M16
Pack size
  • 5 pc
  • 10 pc
Product options
Quantity
Packs
Total Piece
10
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
£2,010.00
£201.00 / 1 Piece

Technical Data

30054_S20_S21.eps
Clamping range - D
156 - 162 mm
Thread connection - M
M16
Maximum load - F
4000 N
Approvals
Fire class B2
Noise reduction
18 dB (A)
Temperature resistance
-50 - 120 °C
Material composition
Stainless steel, 1.4571/1.4404 (A4) - EN 10088, AISI 316Ti / AISI 316L
Surface finish
Outdoor Plus - Stainless Steel
Environmental conditions
Outdoor high pollution (C4 – high / C5)
Insulation material
EPDM rubber
Hardness insulation material
50° ±5° Shore A
Clamping screw
M8
Tightening torque
3 Nm
Cross section thickness - s
2.5 mm
Cross section width - b
30.5 mm
Width - B
232 mm
Product class
Premium
Distance centre pipe to top - h
97 mm

Documents

Features & Applications

Features

  • Increased rigidity due to profiled clamping band
  • Solid connection head, welded all around
  • Pipe ring with verified fire resistance as per DIN 4102, part 2
  • High resistance to corrosion (A4 stainless steel)

Applications

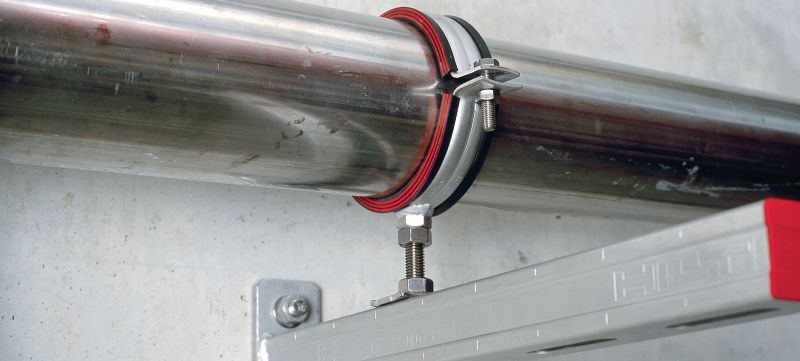

  • heavy-duty pipe installations up to 224 mm
  • Installing industrial pipes
  • Mounting pipes in food industry (except production) and in water treatment
  • heavy-duty plumbing and heating applications
  • Fastening of heavy-duty pipes in corrosive environments
