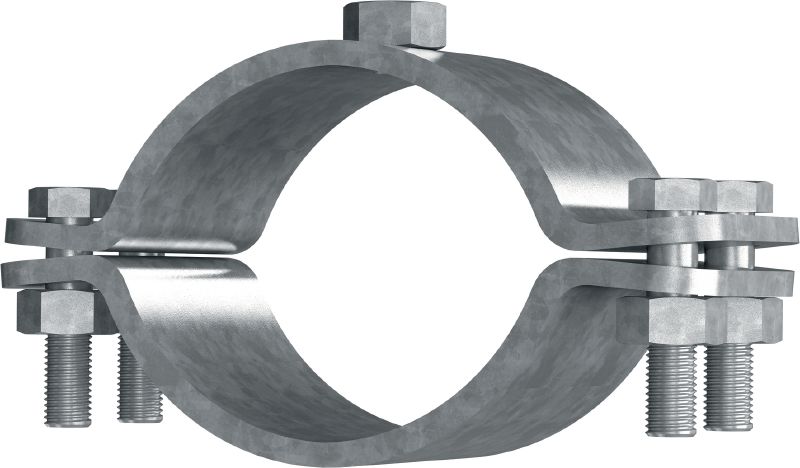

MFP-F fixed point pipe clamp

Fixed point pipe ring MFP-NW 250 M20-F #304250

hot-dip galvanised (HDG) fixed point pipe clamp for maximum performance in heavy-duty applications

  • Clamping range - D: 267 - 273 mm
  • Thread connection - M: M20
  • Material composition: S235JR - DIN EN 10025
premium

Choose options

Clamping range - D
  • 267 - 273 mm
Thread connection - M
  • M20
Pack size
  • 2 pc
Product options
Quantity
Packs
Total Piece
2
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net

£424.00

£212.00 / 1 Piece

Technical Data

IS_PR_0014_M16.eps
Clamping range - D
267 - 273 mm
Thread connection - M
M20
Material composition
S235JR - DIN EN 10025
Surface finish
Outdoor Coated - HDG
Environmental conditions
Outdoor, low to moderate pollution (C3 / C4 - low)
Clamping screw
M16
Cross section thickness - s
8 mm
Cross section width - b
90 mm
Width - B
398 mm
Product class
Premium
Distance centre pipe to top - h
150 mm

Documents

Features & Applications

Features

  • Facilitates quicker and easier installation together with MFP fixed point sets
  • Versatile – modular assembly can be matched to specific technical requirements
  • Tested and verified loads – technical data available

Applications

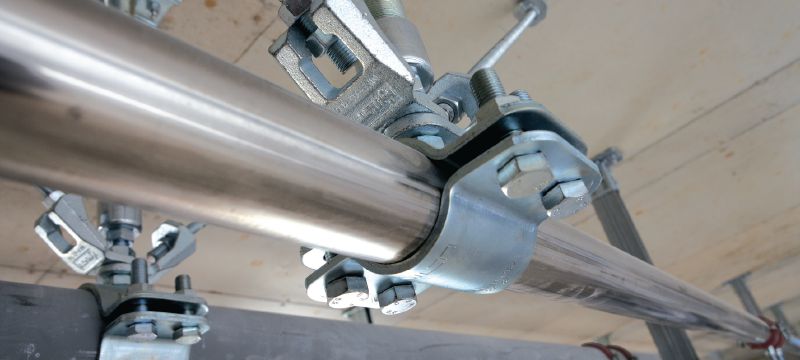

  • Installing pipes up to 273 mm diameter exposed to temperature changes in moderately corrosive environments
  • Installing fixed points in combination with the different MFP fixed point sets
