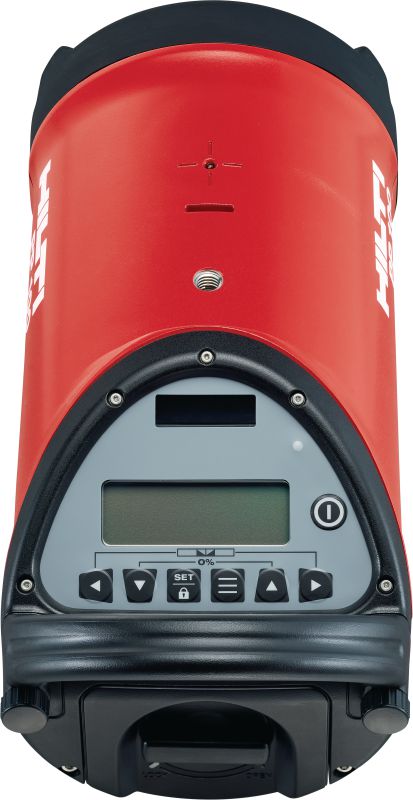

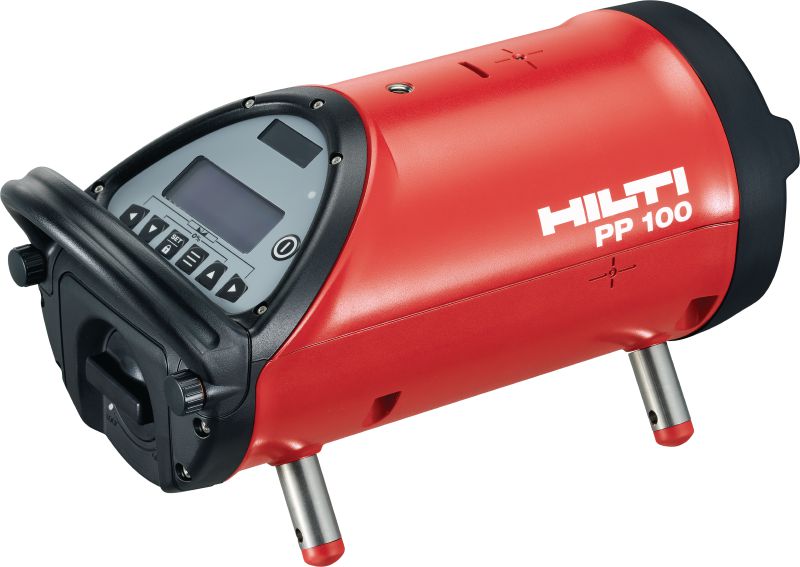

PP 100 Pipe laser

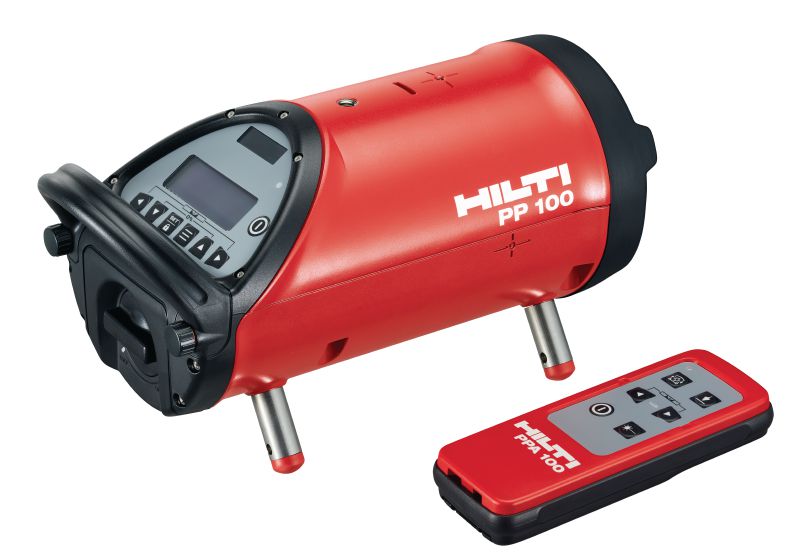

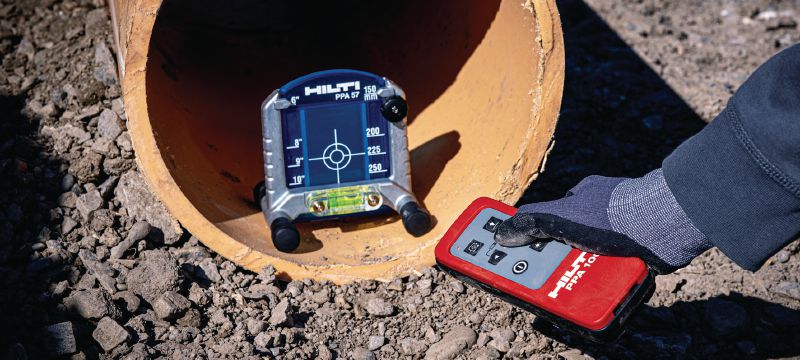

Pipe laser with auto-alignment function, green beam and remote control for faster, more accurate levelling and aligning of pipes
- Laser class: Class 3R (EN 60825), 510-530 nm, <4.5 mW
- Inclination setting X-axis - range: -15 - 40 %
- IP protection class: IP X8
Technical Data
Laser class
Class 3R (EN 60825), 510-530 nm, <4.5 mW
Inclination setting X-axis - range
-15 - 40 %
IP protection class
IP X8
Maximum operating time
45 h
Operating temperature range
-20 - 50 °C
Documents
Features & Applications
Features

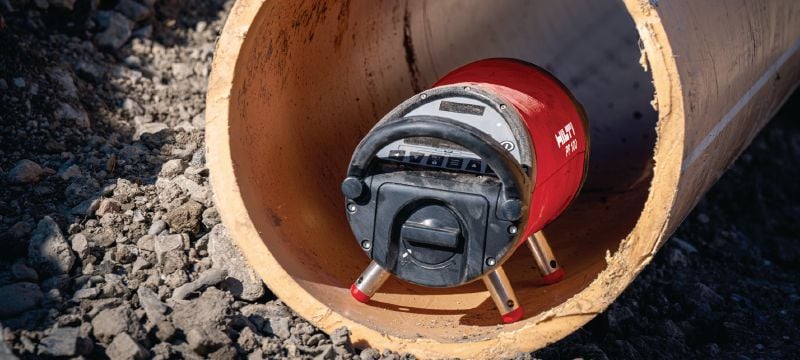

- Fits in small pipes – Hilti’s most compact pipe laser yet fits in 150 mm diameter pipes
- 60-hour battery life – enough for a full working week of cable-free pipe laying without recharging
- High-visibility green laser – the latest beam technology is 4x easier to see than a red laser in bright daylight
- Extreme durability for tough jobsites – IPX8 rating for very high water resistance, including submersion of the pipe laser
- Auto-alignment – one-push auto-search and alignment to the target so you can get the job started faster
Applications

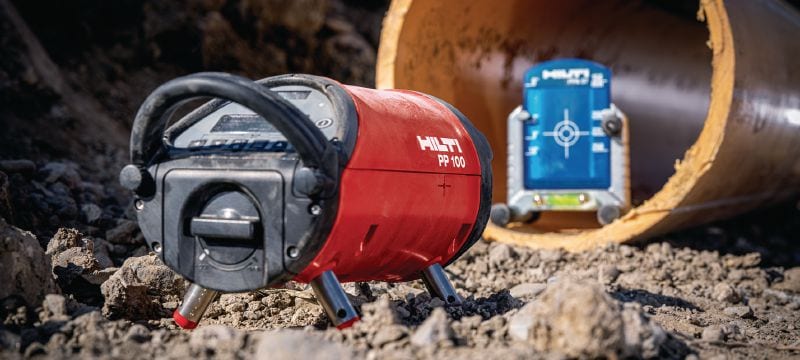

- Laying pipes – determining, transferring and checking levels and precise inclinations
- Checking the line, elevation and grade for installing storm drains, sewers and other gravity-flow pipes
- Tunnelling, boring, pipe alignment and many other construction tasks requiring line, elevation and grade control
For approval or certificate information, please see individual items.
