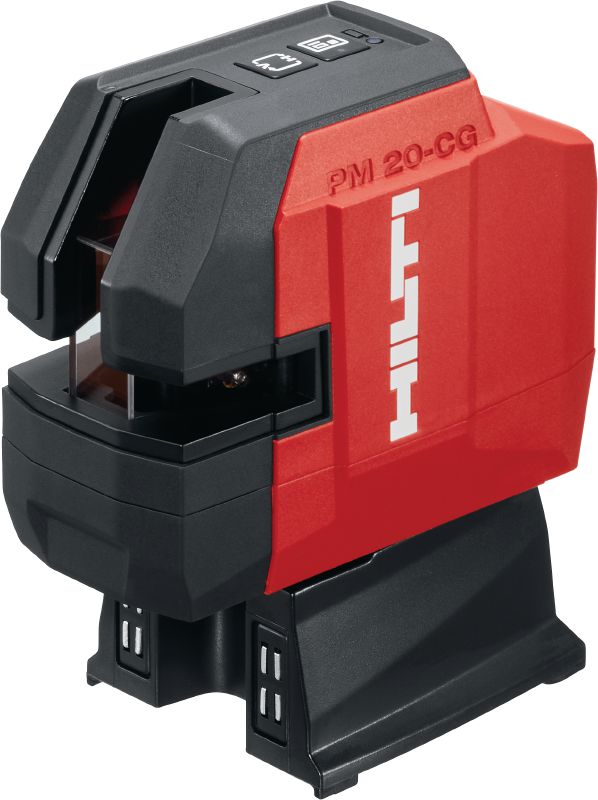

PM 20-CGE High-precision plumb and cross line laser

Combilaser PM 20-CGE #2322753

Configurator
Technical Data
Documents
Features & Applications
Related Products
L125936_v1 (1932489)
L125936 (1932476)
L142442 (228398)
L142452 (228399)
L142468_cropped (228405)
L142475_cropped (228407)

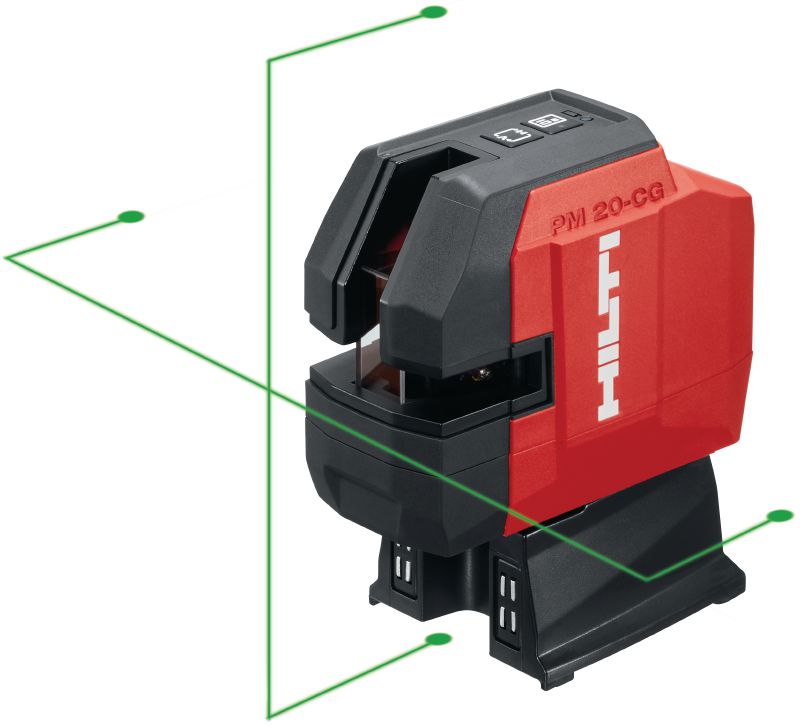

High-precision green beam combi-laser with 2 queues and 4 points for plumbing, leveling, aligning and squaring

  • Accuracy: ±2 mm at 10 m
  • Max. operating distance (diameter): 40 m (lines), 100 m (lines, with receiver)
  • Maximum operating time: 8 h

Choose options

Pack size
  • 1 pc
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
£1,010.00
£1,010.00 / 1 Piece

Technical Data

Accuracy
±2 mm at 10 m
Max. operating distance (diameter)
40 m (lines), 100 m (lines, with receiver) 1
Maximum operating time
8 h
Battery type
4 x 1.5 V (AA)
Self-levelling range at room temperature
+/-4° °
Self-levelling time
3 s
Horizontal fan angle
200 °
Vertical fan angle
160 °
IP protection class
IP 54 (EN 60529)
Laser type
Line and point
  1. Operating distance can be significantly affected by site conditions. See operating instructions.

Documents

pdf Operating Instruction PM 20-CG(E), PM 20-CG A12, Arabic, Bulgarian, cn, Czech, Danish, German, Greek, English, Spanish, Estonian, Finnish, French, Hebrew, Croatian, Hungarian, Italian, Japanese, Kazakh, Korean, Lithuanian, Latvian, Malay, Dutch, Norwegian, Polish, Portuguese, Romanian, Russian, Sardinian, Slovak, Slovenian, Swedish, Thai, Turkish, Ukrainian, Vietnamese, Chinese, Serbian [ 15 MB ]

Features & Applications

Features

  • Higher laser precision – for leveling and plumbing tasks with strict tolerances, such as lift installation, façade or metal fabrication
  • High-speed layout – compact, self-levelling cross line laser with one-button operation so that you can get started with minimal setup time
  • Better visibility up to 20 m – equipped with green beam for easier use indoors and in bright light
  • Ultimate versatility – laser cross, five dots and slope mode make this line laser level suitable for virtually all alignment and layout work, even on inclines
  • Built for jobsite conditions – IP 54 rated protection against dust and moisture and class 2 laser which requires no special precautionary measures

Applications

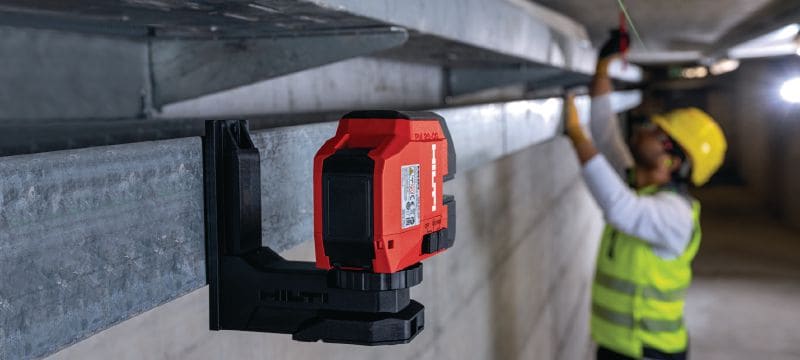

  • Vertical alignment of lift rails
  • Checking, transferring and aligning reference points in lift shafts or on façades
  • Leveling and aligning lift doors and façade elements
  • Transferring fastening points from floors to ceilings (laser plumb bob)
  • Transferring reference heights
