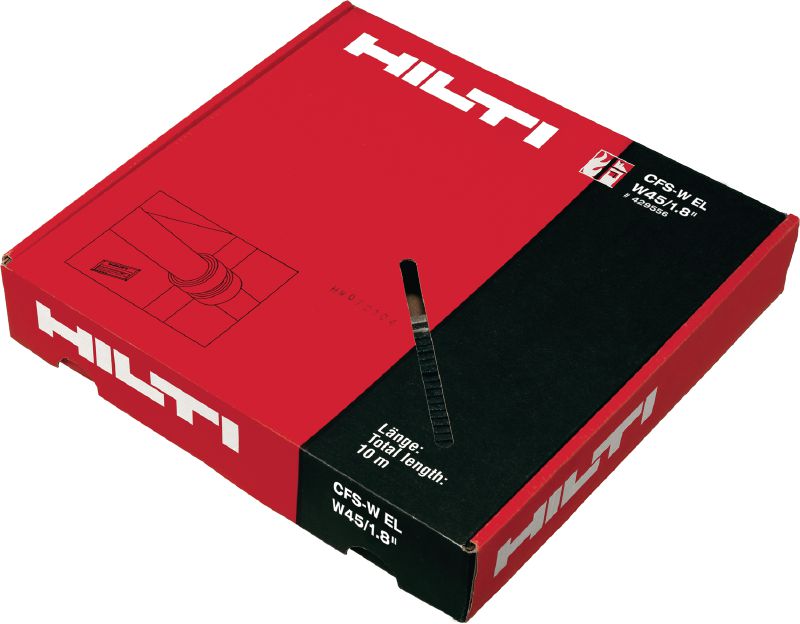

CFS-W EL firestop endless wrap strips

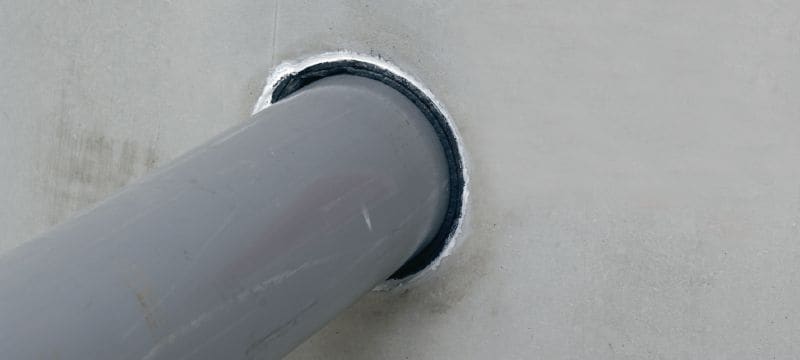

Intumescent, flexible firestop wrap strip to help create a fire and smoke barrier around combustible pipe penetrations
- Dimensions (LxWxH): 10000 x 45 x 4.5 mm
- Approvals: ETA-10/0405
- Base materials: Concrete (aerated), Concrete, Drywall, Masonry
ultimate
Customers also searched for fire wrap or firestop endless wrap.
Choose options
Width
- 45 mm
Pipe diameter - range
- 50 - 160 mm
Pack size
- 1 pc
Quantity
Packs
Total Pieces
1
Discounted net
£334.80
£334.80
/
1 Piece
Technical Data
Dimensions (LxWxH)
10000 x 45 x 4.5 mm
Approvals
ETA-10/0405
Base materials
Concrete (aerated), Concrete, Drywall, Masonry
Can be painted
No
Length
10000 mm
Height
5 mm
Product class
Ultimate
Application temperature range
-5 - 50 °C
Temperature resistance range
-20 - 100 °C
Application
Other
Features & Applications
Features

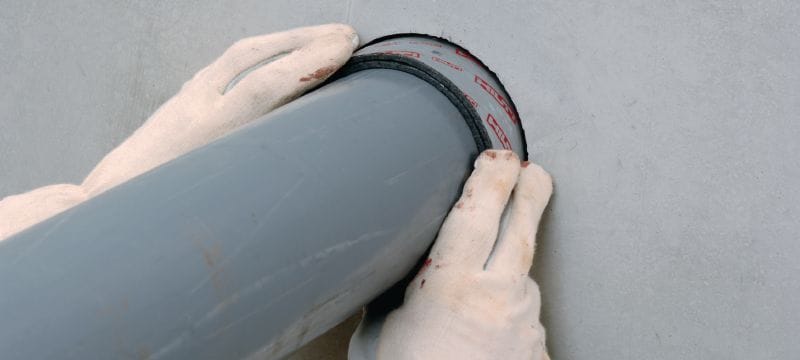

- Quicker and easier installation – no hooks, anchors or drilling
- Installed inside the base material – ideal when space and access are limited
- Endless solution – one product for most penetrant sizes
Applications
- Sealing flammable pipes from 50 mm to 160 mm in diameter in penetrations through fire compartment walls and floors
- Pipe materials: PE, PE-HD, PVC-U, PVC, PVC-C
- Suitable for use in openings in concrete, aerated concrete, masonry and plasterboard
- Different backfilling and sealing materials are covered
For approval or certificate information, please see individual items.
