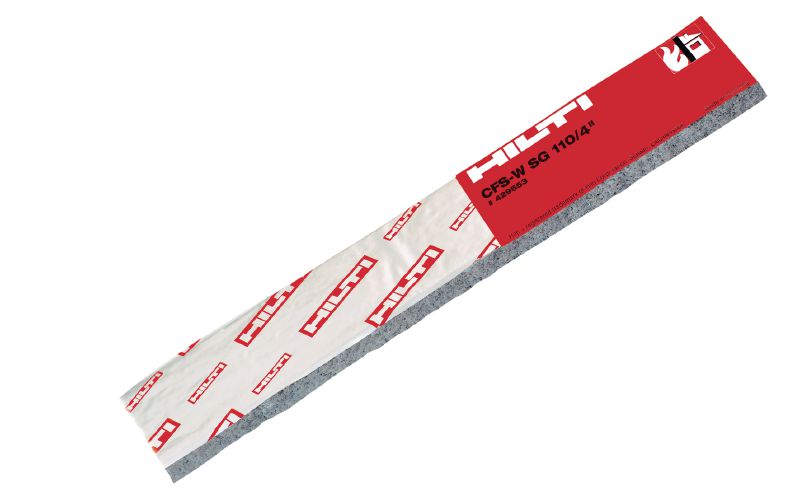

CFS-W SG firestop single wrap strips
Pre-cut intumescent, flexible firestop wrap strip to help create a fire and smoke barrier around combustible pipe penetrations
- Approvals: ETA-10/0405
- Base materials: Concrete (aerated), Concrete, Masonry, Drywall
- Can be painted: No
ultimate
Customers also searched for fire wrap or firestop wrap.
Choose options
Nominal pipe diameter
- 50 mm
- 63 mm
- 90 mm
- 110 mm
- 125 mm
- 160 mm
Width
- 45 mm
Pack size
- 2 pc
Quantity
Packs
Total Pieces
1
Discounted net
From £20.80
Technical Data
Approvals
ETA-10/0405
Base materials
Concrete (aerated), Concrete, Masonry, Drywall
Can be painted
No
Product class
Ultimate
Application temperature range
-5 - 50 °C
Temperature resistance range
-20 - 100 °C
Application
Other
Features & Applications
Features
- Quicker and easier installation – no hooks, anchors or drilling
- Installed inside the base material – ideal when space and access are limited
- Ideal for very tight installations
- Ideal for very tight installations
Applications

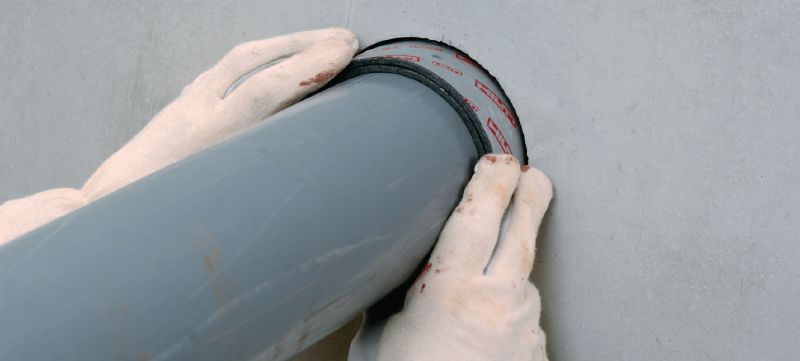

- Sealing flammable pipes from 50 mm to 160 mm in diameter in penetrations through fire compartment walls and floors
- Pipe materials: PE, PE-HD, PVC-U, PVC, PVC-C
- Suitable for use in openings in concrete, aerated concrete, masonry and plasterboard
- Different backfilling and sealing materials are covered
For approval or certificate information, please see individual items.
