CFS-T SB transit frames

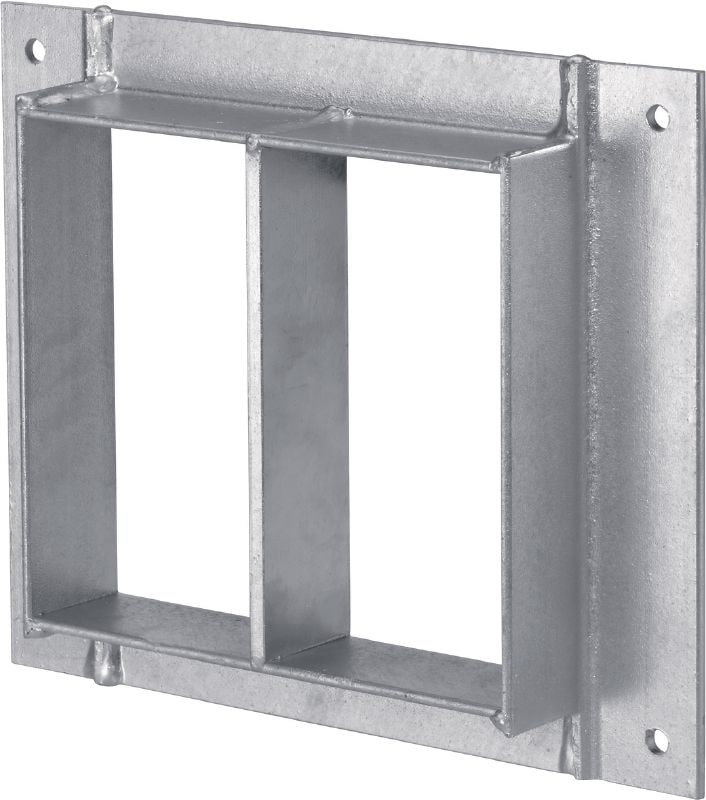

Transit frame CFS-T SB-2x1 GS #2060542
Transit frames for fitting modules to seal cable/pipe penetrations in concrete walls and floors
- Dimensions (LxWxH): 60 x 240 x 181 mm
- Number of frame columns: 1
- Number of frame rows: 1
Customers also searched for Multi Cable Transit.
Choose options
Frame size
- 2
Number of frame columns
- 1
Base materials
- Concrete
Pack size
- 1 pc
Quantity
Packs
Total Piece
1
Discounted net
£62.50
£62.50 / 1 Piece
Technical Data
Dimensions (LxWxH)
60 x 240 x 181 mm
Number of frame columns
1
Number of frame rows
1
Frame size
2
Free from
Halogen (halogen content <= 0.1 weight %)
Application temperature range
50 - -20 °C
Documents
Features & Applications
Features
- Available in hot-dip galvanised steel (grade S235 JR)
- Available with single- and multiple-frame windows in various sizes within single-row, double-row or triple-row frames
Applications
- Wall and floor penetrations in concrete, masonry and lightweight walls
Related Products
Software to assist the planning of sealing and fire protection around cables and pipes, in addition to a 3D PDMS Library
Filler modules for sealing unused space within transit frames when high water- and gas-tightness and fire-resistance are required
Anchor plate sets to secure cable modules within a transit frame and increase pressure-tightness
Wedge compression kit for quickly and easily forming a tight, effective seal within cable transit frames
