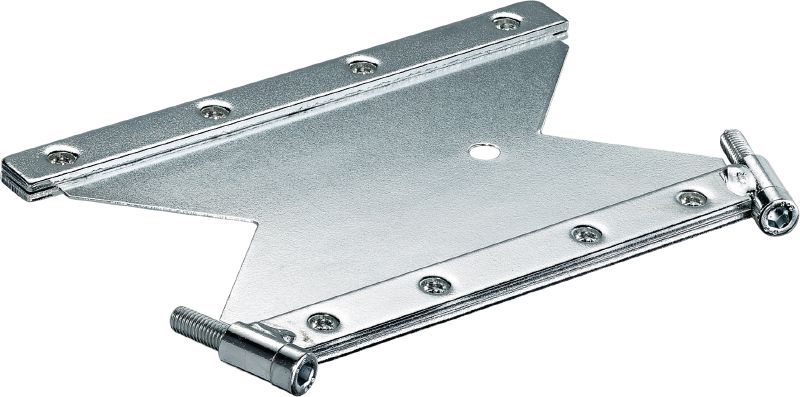

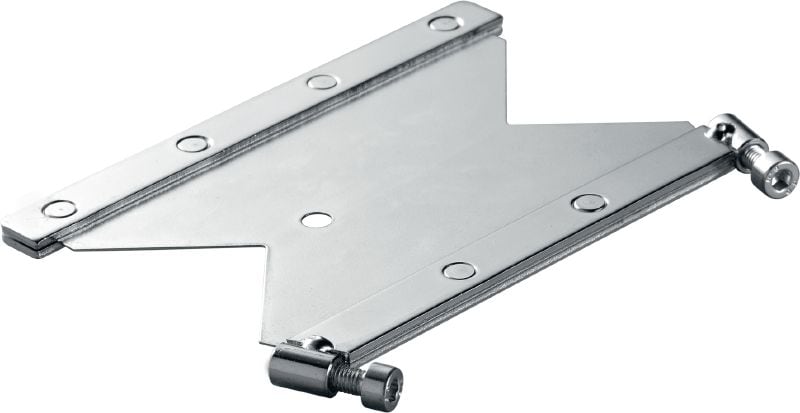

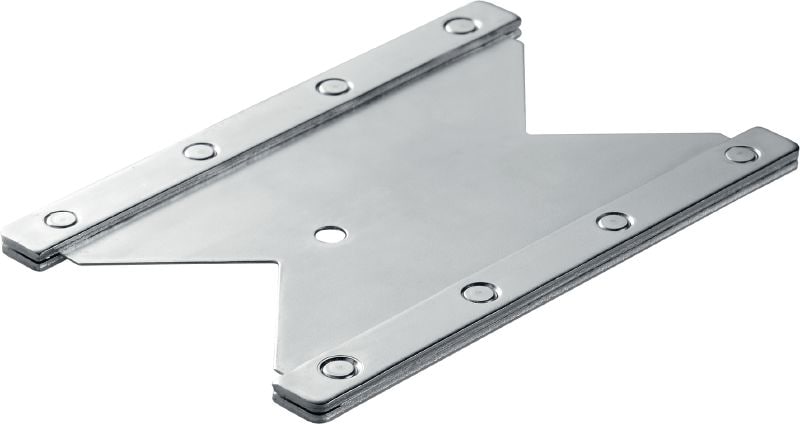

CFS-T anchor plate sets
Anchor plate sets to secure cable modules within a transit frame and increase pressure-tightness
- Approvals: UL
- Free from: Halogen (halogen content <= 0.1 weight %)
- Application temperature range: -20 - 50 °C
Customers also searched for Multi Cable Transit.
Technical Data
Approvals
UL
Free from
Halogen (halogen content <= 0.1 weight %)
Application temperature range
-20 - 50 °C
Documents
Features & Applications
Features
- Sealing against static and dynamic pressure
- Easier installation of modules and insertion of the wedge seal
- Anchor plates available in galvanised steel, stainless steel grade 1.4301 (AISI 304) or aluminium
- Fixing anchor plates available in galvanised steel or stainless steel grade 1.4301 (AISI 304)
Applications
- Penetrations in shipbuilding and offshore applications
- Penetrations in wind power structures

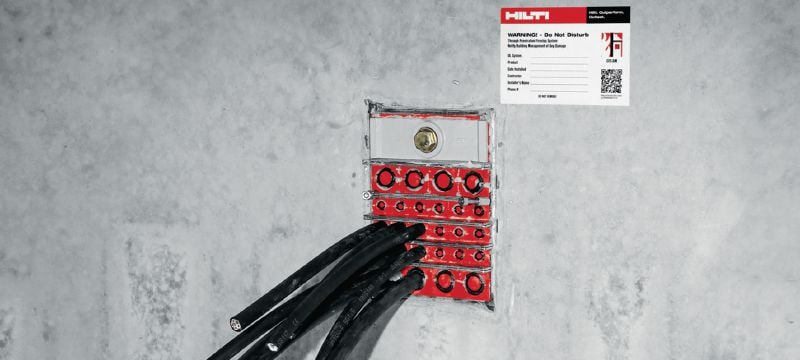

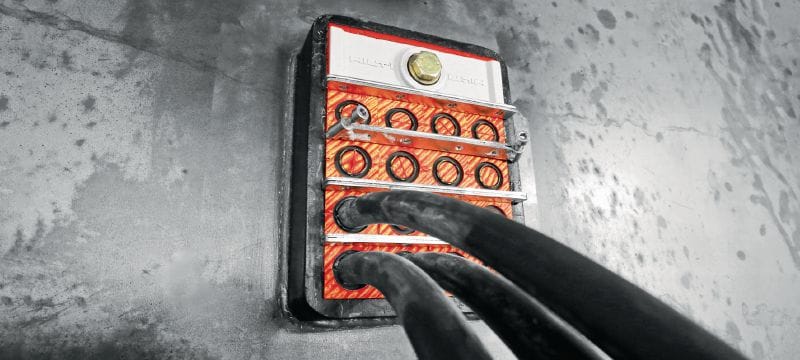

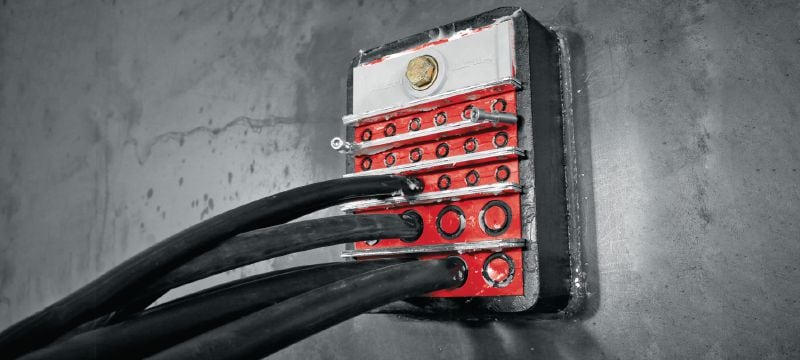

- Use one anchor plate between each row of modules and also to secure the CFS-T WD 120 wedge
- Telecoms, data centre, downstream (oil and gas), petro-chem, control rooms, health care, emergency power, transmission towers
For approval or certificate information, please see individual items.
