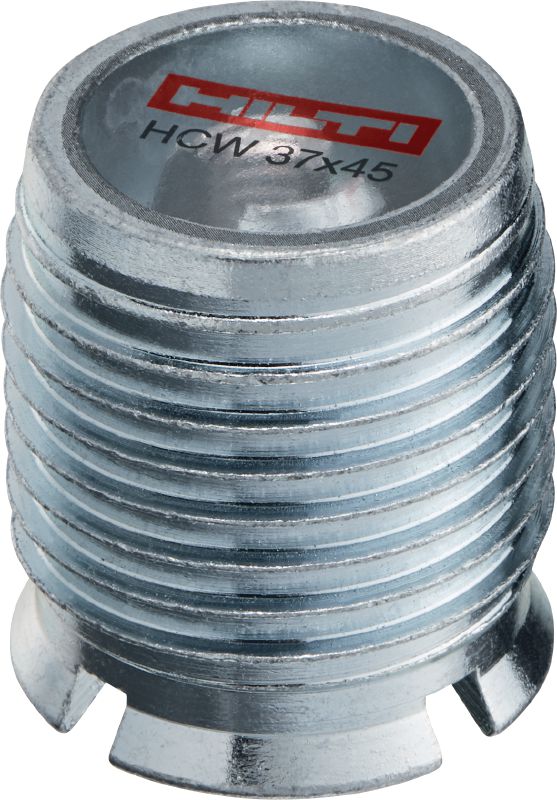

HCW wood connector
Faster and more efficient wood connector system for assembling prefabricated timber structures
- Material, corrosion: Carbon steel, zinc-plated
- Head configuration: Inner thread
- Approvals / test reports: ETA
Choose options
Anchor size
- 37 mm
Pack size
- 20 pc
Quantity
Packs
Total Pieces
1
Discounted net
From £517.60
Technical Data
Material, corrosion
Carbon steel, zinc-plated
Head configuration
Inner thread
Approvals / test reports
ETA
Base materials
Wood
Cleaning procedures
Manual cleaning
PROFIS software
Yes
Environmental conditions
Dry indoor
Material composition
Steel, zinc-plated (min. 5 µm)
Documents
Features & Applications
Features
- Improve design efficiency – the HCW wood connector system helps maximise versatility while minimising calculation workload, with HCW and HCW-S connectors for shear loads and HCW-L for tensile loads and all connectors allowing positioning and leveling

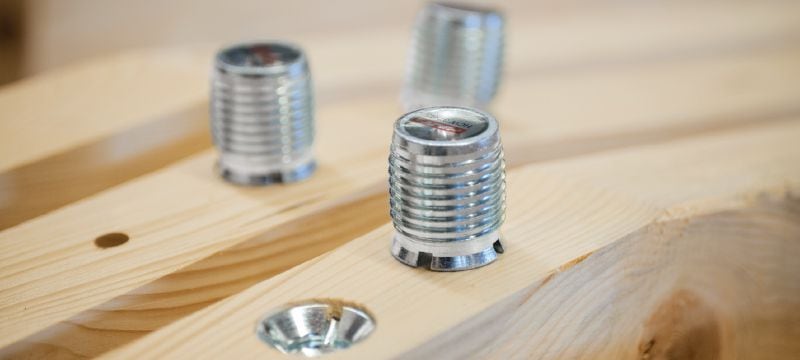

- Designed for factory panel production – wood members can be predrilled for HCW connectors with minimal manual effort using standard industrial joinery/CNC machines
- Simplified planning – cover all requirements with just 3 wood connector types: HCW and HCW-S for concealed connections or HCW-L with nail plate for higher tension loads

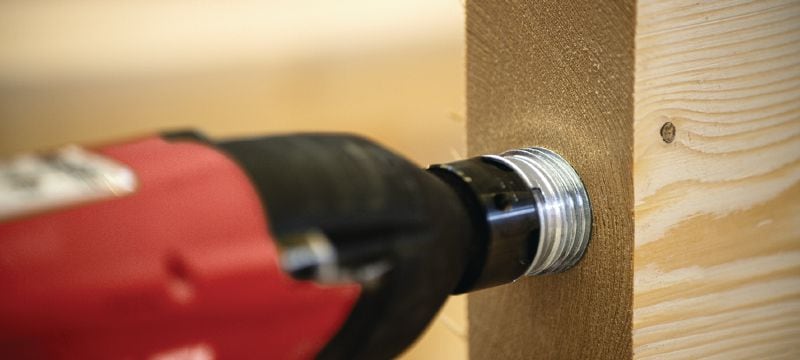

- Quicker progress on the jobsite with less personnel – pre-installed wood couplers help you to save labour, time or the risk of rework by making positioning, leveling and fastening easier
- Improve safety and quality – ETA-21/0357 available when fastened with Hilti ETA approved stud anchors and HAS-U anchor rods for timber-to-concrete applications and HSW hanger bolts for timber-to-timber applications
Applications
- Assembling and fastening prefabricated timber structures on-site, especially at residential scale

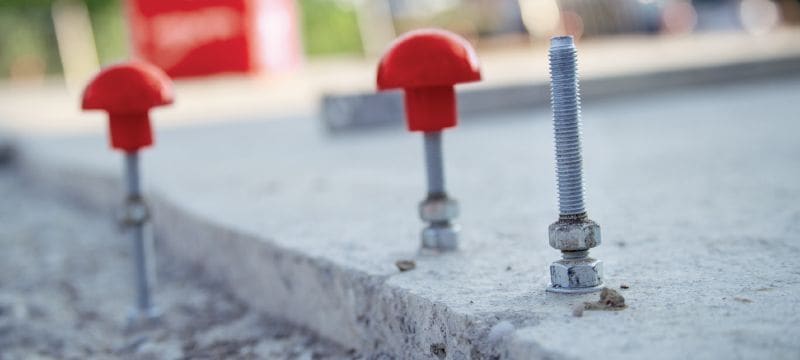

- Wood-to-concrete connections
- Wood-to-wood connections
For approval or certificate information, please see individual items.
