S-MD 23 Z Self-drilling metal screws

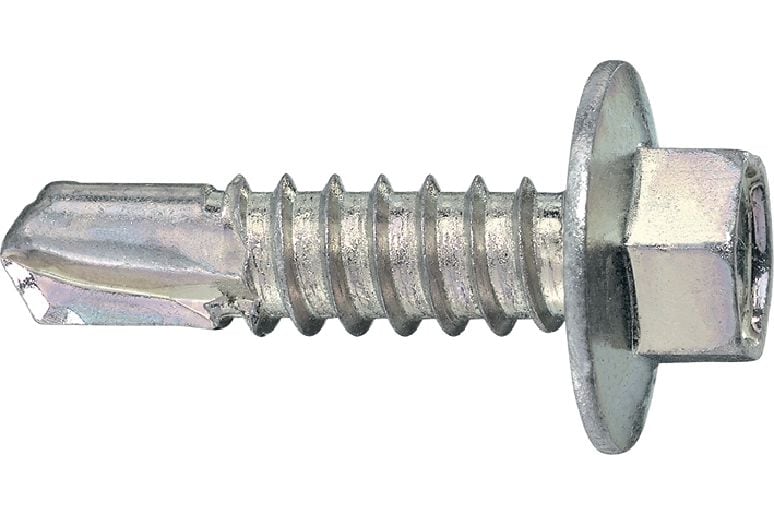

Self-drill screw S-MD23Z 6,3x25 #413432

Self-drilling screw (zinc-plated carbon steel) with pressed-on flange for medium-thick metal-to-metal fastenings (up to 6 mm)

  • Base materials: Carbon steel, HTU (cast-in channel)
  • Environmental conditions: Dry indoor
  • Length: 25 mm
premium

Customers also searched for zinc self drilling screw medium-thick metal-to-metal fasteningshexagon head self drilling screw or racing tip self drilling screw .

Choose options

Thickness fastened range MF
  • 2.6 - 13 mm
Drilling capacity range DC
  • 2.6 - 6 mm
Length
  • 25 mm
Screw drive/recess type
  • Hexagon 8
Pack size
  • 500 pc
Product options
Quantity
Packs
Total Piece
500
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net

£223.00

£0.45 / 1 Piece

Technical Data

Base materials
Carbon steel, HTU (cast-in channel)
Environmental conditions
Dry indoor
Length
25 mm
Screw head diameter
10 mm
Product class
Premium
Washer type
Pressed-on

Documents

Features & Applications

Features

  • Self-drilling screw for fast assembly in one step
  • New drill tip for fast drilling and low failure rate, even in hard steel
  • Fast and robust drill tip with Racing Tip technology – a wave-form cutting edge which removes chips much faster and helps prevents point burn-out
  • Especially suitable for highly stressed connections, such as roofing sheets or decking sheets where not exposed to the weather
  • Attractive final appearance – screw head can be coloured to match the façade

Applications

  • Fastening sheet metal and profiles to steel substructures and framing, with or without intermediate insulation layers
  • Galvanised carbon steel for fastening in dry, indoor environments
  • Thin to medium-thick metal-to-metal connections (up to 6 mm)
  • Especially suitable for cassette system walls on HTU cast-in channels, C/U profiles etc.
