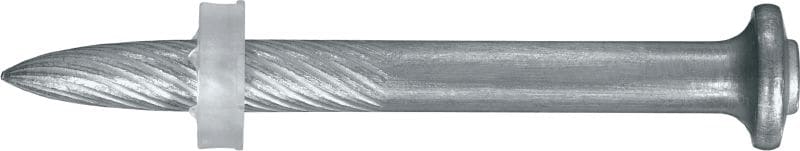

X-U P8 Steel/concrete nails
Universal nail X-U 22 P8 #237332
Ultimate-performance single nail for fastening to concrete and steel using powder-actuated tools
- Base materials: Concrete
- Minimum thickness of base material (concrete): 80 mm
- Minimum thickness of base material (steel): 6 mm
premium
Choose options
Fastener shank length
- 16 mm
- 19 mm
- 22 mm
- 27 mm
- 32 mm
- 37 mm
- 42 mm
- 47 mm
- 52 mm
- 57 mm
- 62 mm
- 72 mm
Pack size
- 1 pc
- 100 pc
Quantity
Packs
Total Piece
100
Discounted net
£90.30
£0.90 / 1 Piece
Technical Data
Base materials
Concrete
Minimum thickness of base material (concrete)
80 mm
Minimum thickness of base material (steel)
6 mm
Corrosion protection
Galvanised zinc coated <20 µm
Environmental conditions
Dry indoor
Material
Carbon steel
Fastener shank diameter
4 mm
Washer size
8 mm
Point type
Ballistic point, knurled
Approvals
DIBt, ICC-ES
For use with (tools)
DX 2, DX 351, DX 351 M/E, DX 36, DX 460 F8, DX 5 F8, DX E72
Product class
Premium
Documents
Features & Applications
Features
- Galvanised nails for fastenings on concrete or steel
- Fully-knurled point for higher application limits on steel and suitability for use on hard concrete
- High application limits, high ultimate tensile loads
- One nail for almost any application
- Thermo-pulled ballistic point for optimum driving characteristics
Applications
- Fastenings on concrete and steel
- Fastening metal track for plasterboard/dry lining to concrete
- Fastening wall ties
- Fastening wood to concrete
- Setting up formwork and safety barriers
