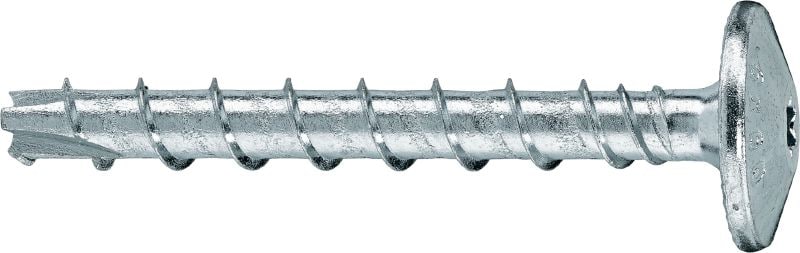

Ultimate-performance screw anchor for quicker permanent fastening in concrete (carbon steel, large pan head)

  • Material, corrosion: Carbon steel, zinc-plated
  • Head configuration: Pan head
  • Approvals / test reports: ETA, Fire, VDS

Customers also searched for concrete screw.

Technical Data

Material, corrosion
Carbon steel, zinc-plated
Head configuration
Pan head
Approvals / test reports
ETA, Fire, VDS
Base materials
Concrete (cracked), Concrete (hollow core), Concrete (uncracked), Masonry (solid)
Type of fastening
Through-fastening
Reusable (and removable)
Not possible
Cleaning procedures
Manual cleaning
PROFIS software
Yes
Environmental conditions
Dry indoor
Installation direction
All
Material composition
Steel, zinc-plated (min. 5 µm)

Documents

Features & Applications

Features

  • Higher productivity – less drilling and fewer work steps than with conventional anchors
  • Flat head for easy adjustment of channel system components
  • Especially fast for overhead installation – greatly simplifies the work
  • Reliable and easy to set – HSE product profile available
  • Reduced edge and spacing distances

Applications

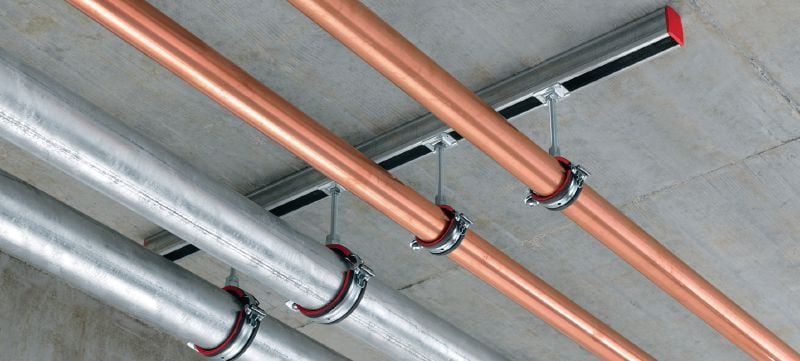

  • Fastening channels directly to the ceiling for the installation of pipes or ventilation ducts
  • Fastening handrails or railings and other ornamental steelwork
  • Suitable for repetitive installation tasks

For approval or certificate information, please see individual items.
