HIF Insulation fastener
Economical plastic insulation anchor for fastening soft insulating materials in light ventilated façades
- Base materials: Masonry (solid), Masonry (hollow), Concrete (tough), Concrete (aerated), Concrete (soft)
- Working principle: Impact anchor
- Insulation material: Mineral wool, Soft board (e.g. EPS)
Choose options
Insulation material thickness fastened - max.
- 60 mm
- 80 mm
- 100 mm
- 120 mm
- 160 mm
- 180 mm
- 200 mm
- 220 mm
Drill bit diameter
- 8 mm
Anchor length
- 85 mm
- 105 mm
- 125 mm
- 145 mm
- 185 mm
- 205 mm
- 225 mm
- 245 mm
Pack size
- 100 pc
- 150 pc
- 200 pc
- 250 pc
Quantity
Packs
Total Pieces
1
Discounted net
From £179.80
Technical Data
Base materials
Masonry (solid), Masonry (hollow), Concrete (tough), Concrete (aerated), Concrete (soft)
Working principle
Impact anchor
Insulation material
Mineral wool, Soft board (e.g. EPS)
Type of fastening
Through-fastening
Material composition
Plastic
Material, corrosion
Plastic
Documents
pdf Technical data sheet for the HIF insulation fastener, English [ 403.2 KB ]
Features & Applications
Features
- Especially for soft insulation material 90mm is ideal not to sink in the surface, no additional plate has to be used
- Speed due to less drilling effort

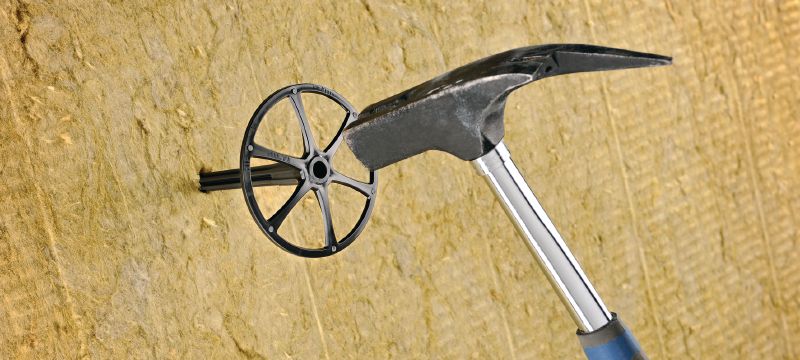

- Drilling, hammering, done
Applications
- Perfect anchor to fasten soft insulation material in the light ventilated facade application
For approval or certificate information, please see individual items.
