HRD-UGS Plastic screw anchor

Configurator
Technical Data
Documents
Features & Applications
Related Products
HRD-UGS 14x110/40
HRD-UGS 14 U
HRD-UGS

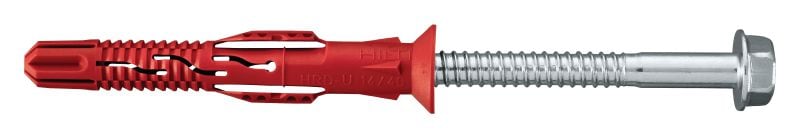

High-performance plastic anchor for concrete and masonry with screw (carbon steel, hex head)

  • Base materials: Concrete (aerated), Concrete (hollow core), Concrete (uncracked), Masonry (grout-filled CMU), Masonry (hollow), Masonry (solid)
  • Head configuration: Hex head
  • Approvals / test reports: N/A

Choose options

Anchor size
  • 14 mm
Anchor length
  • 80 mm
  • 110 mm
  • 140 mm
  • 160 mm
  • 180 mm
  • 230 mm
Pack size
  • 50 pc
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
From £285.75

Technical Data

Base materials
Concrete (aerated), Concrete (hollow core), Concrete (uncracked), Masonry (grout-filled CMU), Masonry (hollow), Masonry (solid)
Head configuration
Hex head
Approvals / test reports
N/A
Material, corrosion
Carbon steel, zinc-plated, Plastic
Environmental conditions
Dry indoor
Type of fastening
Through-fastening

Documents

pdf Technical data sheet for the HRD frame anchor, English [ 691.3 KB ]
pdf Tech_HRD_Redundant_2023_en, English [ 1.2 MB ]

Features & Applications

Features

  • Contact corrosion resistance – extra-large collar helps prevents contact corrosion between different materials, e.g. steel and aluminum
  • Engineered for consistency and reliability – these plastic anchors have a hex head with integrated steel washer for tighter setting
  • Extensive documentation available – see the technical data sheet for essential load, resistance, design and installation information

Applications

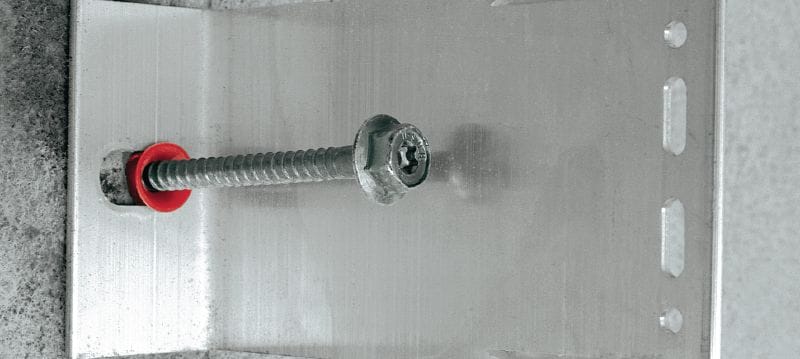

  • Rainscreen/ventilated façades – fastening façade mounting brackets to concrete and masonry
  • Metal fabrication – fastening handrails, balustrades, railings, window bars and other architectural metalwork to concrete and masonry
  • Minimum embedment depth in concrete and hollow brick: 70 mm

For approval or certificate information, please see individual items.
