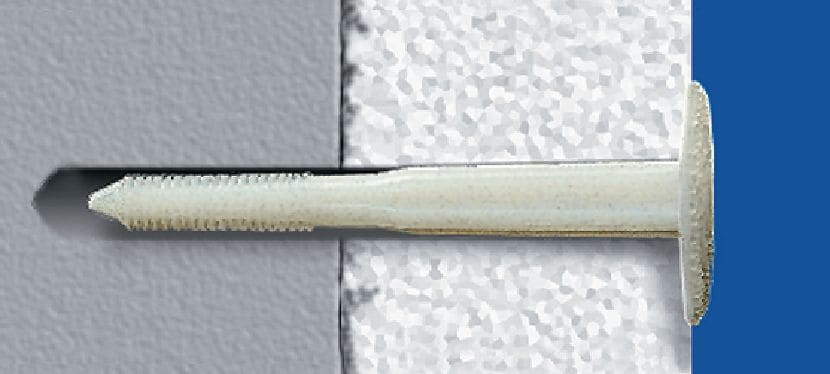

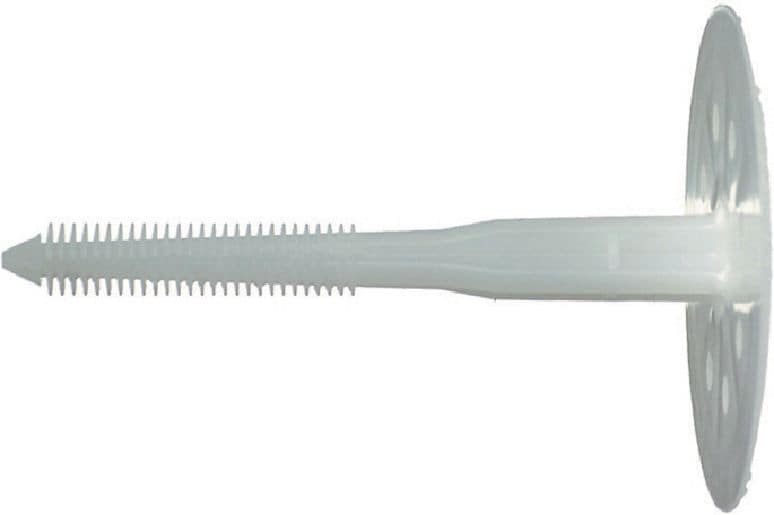

Economical plastic insulation anchor for fastening hard insulating materials to concrete and masonry

  • Base materials: Masonry (solid), Masonry (hollow), Concrete (tough)
  • Working principle: Impact anchor
  • Insulation material: Mineral wool, Soft board (e.g. EPS), Hard board (e.g. XPS, PUR, PIR)

Choose options

Insulation material thickness fastened - max.
  • 20 mm
  • 40 mm
  • 60 mm
  • 80 mm
  • 100 mm
  • 120 mm
  • 150 mm
Drill bit diameter
  • 8 mm
Anchor length
  • 50 mm
  • 70 mm
  • 90 mm
  • 110 mm
  • 130 mm
  • 150 mm
  • 180 mm
Pack size
  • 250 pc
Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net

From £312.50

Technical Data

Base materials
Masonry (solid), Masonry (hollow), Concrete (tough)
Working principle
Impact anchor
Insulation material
Mineral wool, Soft board (e.g. EPS), Hard board (e.g. XPS, PUR, PIR)
Approvals / test reports
N/A
Environmental conditions
Outdoor (more than 1 km from coast)
Type of fastening
Through-fastening
Material composition
Polyamide
Material, corrosion
Plastic

Documents

Features & Applications

Features

  • Quick and easy impact installation
  • Insulating material thickness: up to 150 mm
  • Depth of embedment: 25 mm

Applications

  • Fastening hard, self-supporting, insulating materials such as expanded polystyrene

For approval or certificate information, please see individual items.
