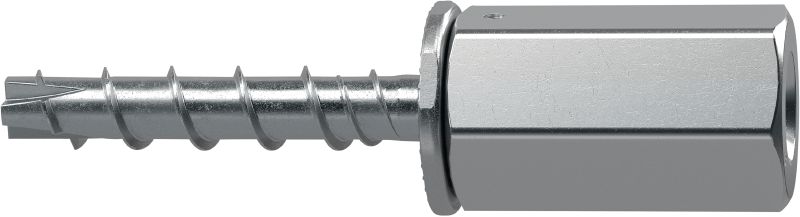

HUS3-IQ Click-fit concrete screw anchor

Threaded rod hanger, with fast click-to-connect system for fastening trapeze installations to concrete (carbon steel, click-fit head)

  • Material, corrosion: Carbon steel
  • Head configuration: Hex head, Internally Threaded
  • Reusable (and removable): Not possible

Technical Data

Material, corrosion
Carbon steel
Head configuration
Hex head, Internally Threaded
Reusable (and removable)
Not possible
PROFIS software
Yes
Material composition
Steel, zinc-plated (min. 5 µm)

Documents

Features & Applications

Features

  • Faster installations – click-to-connect system allows you to prefab trapezes to install up to 50% faster than conventional rod hangers
  • Easy assembly – pre-assemble and click-in the entire trapeze all at once, helping reduce straining overhead work
  • Perfect pairing – HUS3-IQ for faster installations for static installations or HUS3-I for deeper embedment for single point fastenings and seismic C1/C2 applications
  • Full system solution – combine with Hilti modular support systems and tools for an all-in-one solution for pipe, ventilation, sprinkler and electrical applications
  • Innovative cutting-edge geometry for superior setting characteristics

Applications

  • Trapeze installations with M8/M10 threaded rod
  • Suitable for repetitive installation tasks
  • Threaded rod hangers for multiple or single pipes
  • Various pipe or ventilation system installation applications
  • ETA 10/0005 for redundant fastenings

For approval or certificate information, please see individual items.
