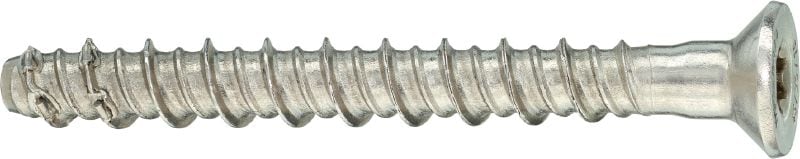

HUS4-CR Screw anchor


High-performing countersunk head screw anchor for fastening to concrete (stainless steel)
- Material, corrosion: Stainless steel, A4
- Head configuration: Countersunk
- Approvals / test reports: ETA, Fire
Choose options
Anchor size
- 6 mm
- 8 mm
- 10 mm
Anchor length
- 40 mm
- 60 mm
- 65 mm
- 70 mm
- 75 mm
- 85 mm
- 95 mm
- 105 mm
Pack size
- 25 pc
- 50 pc
Quantity
Packs
Total Pieces
1
You can not see your company prices
Discounted net
From £113.75
Technical Data
Material, corrosion
Stainless steel, A4
Head configuration
Countersunk
Approvals / test reports
ETA, Fire
Base materials
Concrete (aerated), Concrete (cracked), Concrete (uncracked), Masonry (solid)
Reusable (and removable)
Not possible
Cleaning procedures
Manual cleaning, Non-cleaning
PROFIS software
Yes
Environmental conditions
Dry indoor, Outdoor, low to moderate pollution (C3), Outdoor with heavy industrial pollution
Material composition
Stainless steel, A4
Documents
pdf ETA-20/0867 HUS4 screw anchor in concrete , English, German [ 33.9 MB ]
pdf ETA 10/0005 for HUS3 screw anchor size 6 multiple applications, German, English, French [ 11.1 MB ]
pdf ETA-18/1160 HUS4-MAX Bonded screw, English, German [ 3.3 MB ]
pdf UKTA-0836-23/6698, English [ 1.3 MB ]
Features & Applications
Features
- Removable and high corrosion resistance – ideal for outdoor applications
- Faster, simpler, safer installation – no cleaning, torque wrench or hammering required, now compatible with the SI-AT-22 Adaptive Torque Module
- Improved setting with less blocking – thanks to smaller core diameter and new thread design
- Countersunk head – to fasten flush to a baseplate for improved aesthetics and trip safety
- Cost-saving design – pair with PROFIS Engineering software to optimise designs and reduce material costs
Applications
- Fastening non-structural baseplates – such as handrails, staircases and balustrades
- Suitable for use in uncracked and cracked concrete
- Assessed for use in a range of conditions: static, quasi-static, seismic (C1) and fire
- Suitable for dry indoor and outdoor use, including high corrosion environments
For approval or certificate information, please see individual items.
