HUS4-H Screw anchor

Configurator
Technical Data
Documents
Features & Applications
Related Products
L144887 (1918698)
L144891 (1918707)
L144823_cropped (1918649)
L144831_cropped (1918557)
L144860_cropped (1918402)
L144862_cropped (1918383)
L155913_cropped (4335940)
L155936_cropped (4341690)
L155937_cropped (4341696)
L156302_cropped (4393580)

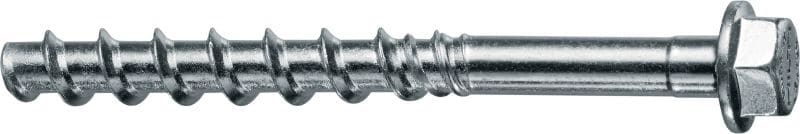

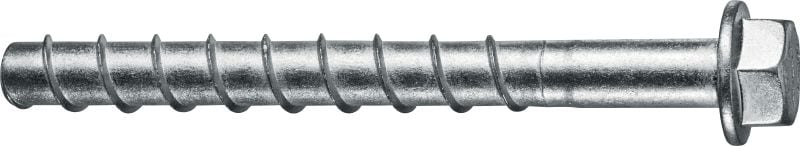

High-performing hexagonal head screw anchor for fastening to concrete and masonry (carbon steel)

  • Material, corrosion: Carbon steel, zinc-plated
  • Head configuration: Hex head
  • Approvals / test reports: ETA, Fire, Seismic

Customers also searched for HUS4 or Screw anchor.

Choose options

Anchor size
  • 8 mm
  • 10 mm
  • 12 mm
  • 14 mm
  • 16 mm
Anchor length
  • 45 mm
  • 55 mm
  • 60 mm
  • 65 mm
  • 70 mm
  • 75 mm
  • 80 mm
  • 85 mm
  • 90 mm
  • 100 mm
  • 110 mm
  • 120 mm
  • 130 mm
  • 140 mm
  • 150 mm
  • 165 mm
  • 180 mm
  • 200 mm
  • 205 mm
  • 240 mm
  • 280 mm
  • 305 mm
Pack size
  • 16 pc
  • 25 pc
  • 50 pc
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
From £49.50

Technical Data

Material, corrosion
Carbon steel, zinc-plated
Head configuration
Hex head
Approvals / test reports
ETA, Fire, Seismic
Base materials
Concrete (aerated), Concrete (cracked), Concrete (hollow core), Concrete (uncracked), Masonry (solid)
Reusable (and removable)
Yes
Cleaning procedures
Manual cleaning, Non-cleaning
PROFIS software
Yes
Environmental conditions
Dry indoor
Material composition
Steel, zinc-plated (min. 5 µm)

Documents

Approval document
Certificate
Technical information
Test Report
Brochure
Declaration of performance
Sustainability Documentation
Operating Instruction
pdf ETA-20/0867 HUS4 screw anchor in concrete , English, German [ 33.9 MB ]
pdf ETA-18/1160 HUS4-MAX Bonded screw, English, German [ 3.3 MB ]
pdf DIBt_Z-21.8-2137_temporary fastening_210325, English, German [ 2.5 MB ]
pdf ETA-23/0936 HUS4 screw anchor in masonry, English, German, Polish [ 22.1 MB ]
pdf UKTA-0836-23/6698, English [ 1.3 MB ]

Features & Applications

Features

  • Removable, adjustable (nominal embedment ≥ 60 mm) and reusable – ideal for temporary fastenings
  • Faster, simpler, safer installation – no cleaning, torque wrench or hammering required, now compatible with the SI-AT-22 Adaptive Torque Module
  • Improved setting with less blocking – thanks to smaller core diameter and new thread design

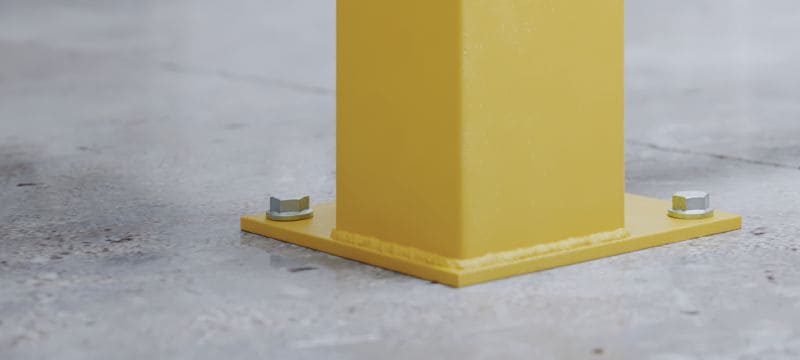

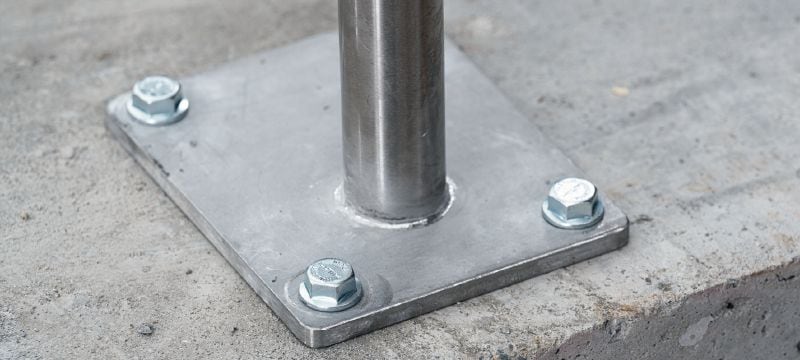

  • Hexagonal head – with an integrated washer for a neat appearance of through-fastened baseplates
  • Cost-saving design – pair with PROFIS Engineering software to optimise designs and reduce material costs

Applications

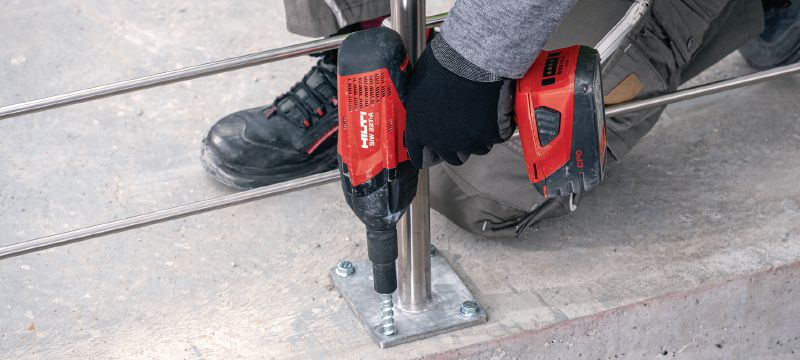

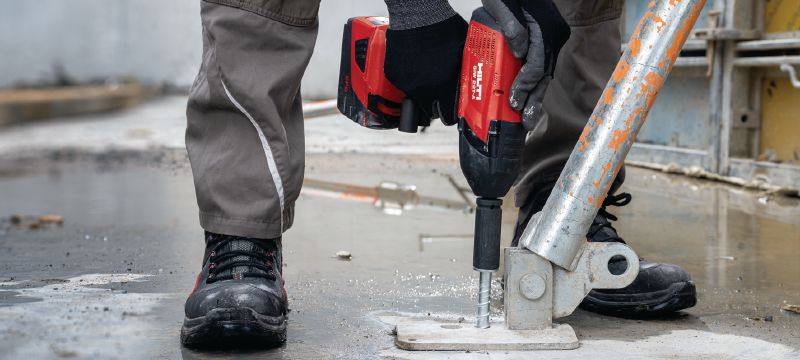

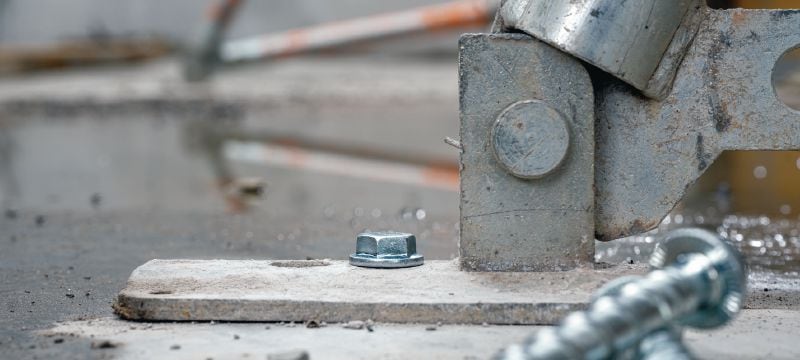

  • Temporary fastenings to concrete – such as traditional formwork, propping systems and protection barriers
  • Suitable for use in uncracked and cracked concrete, steel-fibre reinforced concrete, hollow core slabs (size 8-14), metal decks (size 8-10), low-strength concrete and masonry (size 8-10)
  • Assessed for use in a range of conditions: static, quasi-static, seismic (C1 & C2) and fire
  • Suitable for permanent fastenings in dry, indoor environments and temporary outdoor use

For approval or certificate information, please see individual items.
