HSC-A Shallow undercut anchor

Configurator
Technical Data
Documents
Features & Applications
Related Products
5945.tif
HKD
5306.tif
HSC Safety self-cutting anchors
HDA

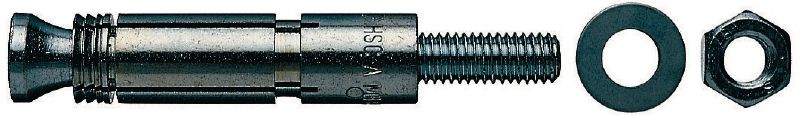

Ultimate-performance shallow undercut anchor (carbon steel, external threaded)

  • Material, corrosion: Carbon steel, zinc-plated
  • Head configuration: Externally threaded
  • Approvals / test reports: ETA, Fire, Seismic

Choose options

Anchor size
  • M8
  • M10
  • M12
Standard embedment depth
  • 40 mm
  • 50 mm
  • 60 mm
Max. fixture thickness at standard embedment depth
  • 15 mm
  • 20 mm
Pack size
  • 20 pc
  • 25 pc
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
From £408.25

Technical Data

Material, corrosion
Carbon steel, zinc-plated
Head configuration
Externally threaded
Approvals / test reports
ETA, Fire, Seismic
PROFIS software
Yes
Type of fastening
Pre-fastening

Documents

Approval document
Technical information
Brochure
Declaration of performance
Instruction for use
pdf ETA 02/0027 for HSC undercut anchor, French, English, German, Polish [ 3.5 MB ]
pdf BZS D 06-601 for HSC self-cutting undercut anchor, English [ 48.6 KB ]
pdf UKTA-0836-23/6688, English [ 725.8 KB ]

Features & Applications

Features

  • Shallow embedment depth for thin concrete slabs or where permissible drilling depth is limited
  • Combines high working loads with small edge distances and close spacing thanks to very low expansion forces
  • Self-undercutting facilitates fast and reliable installation – no separate undercutting tool or handling needed

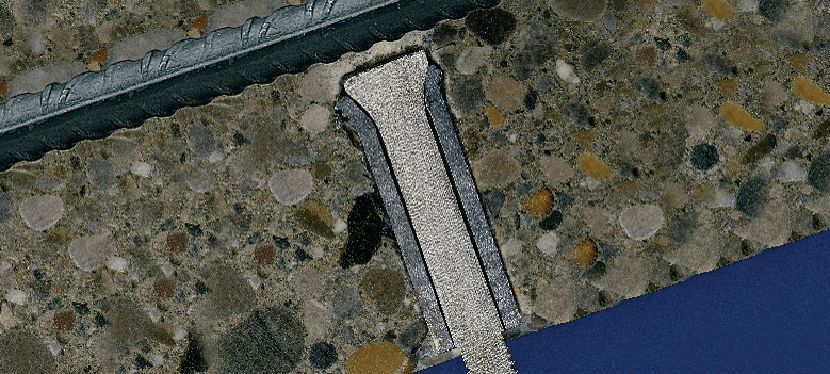

  • The resulting keying effect keeps the anchor secure even in cracked concrete under shock loads
  • Requires a plain cylindrical drilled hole, no separate undercutting operation

Applications

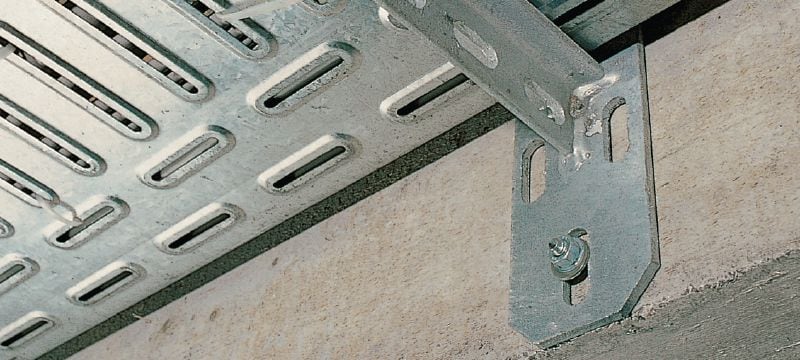

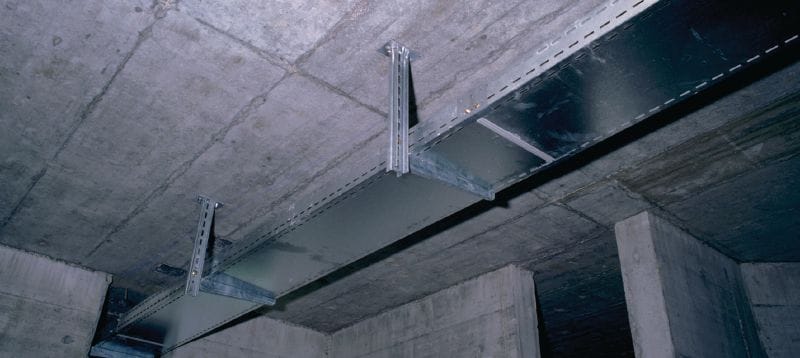

  • Safety-relevant, medium-duty fastenings in cracked or uncracked concrete, especially where shallow embedment and/or small edge distance or close spacing is required

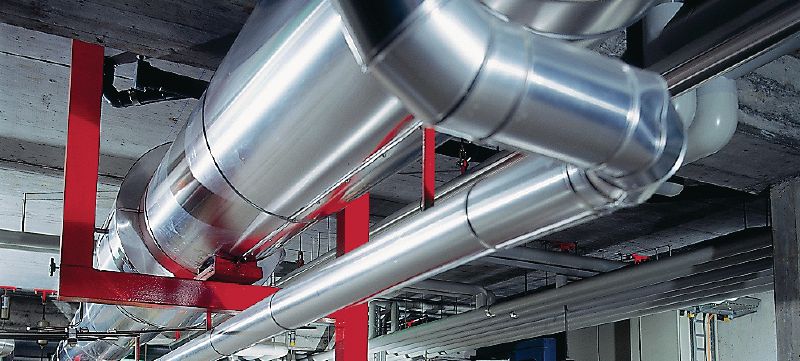

  • Examples: stair hand rails, sprinkler pipes, air ducts, seating, facade substructures, car park barriers, etc.

For approval or certificate information, please see individual items.
