X-IE 9 Insulation fastener

Configurator
Technical Data
Documents
Features & Applications
Related Products
L056658.tif
L054657 (141011)
L064225.tiff

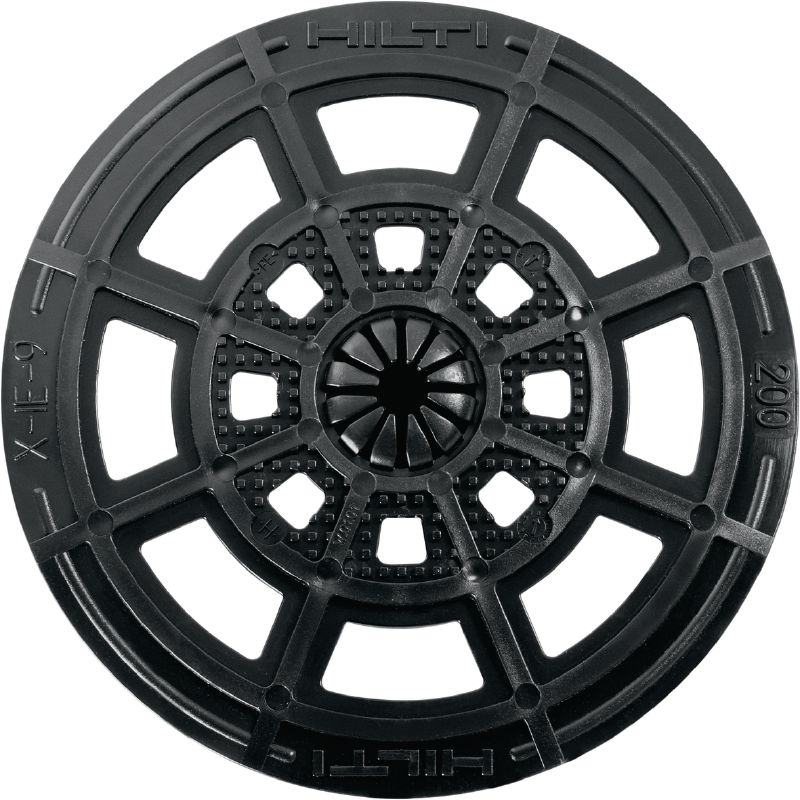

Black insulation fastener for mineral wool on concrete

  • Application: Mineral Wool Insulation
  • Insulation material: Mineral wool
  • Base materials: Concrete (soft), Concrete (tough), Concrete (uncracked), Steel, Masonry (solid limestone brick)
ultimate

Choose options

Insulation thickness
  • 50 mm
  • 60 mm
  • 80 mm
  • 90 mm
  • 100 mm
  • 120 mm
  • 140 mm
  • 160 mm
  • 180 mm
  • 200 mm
Pack size
  • 50 pc
  • 100 pc
  • 150 pc
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
From £315.60

Technical Data

Application
Mineral Wool Insulation
Insulation material
Mineral wool
Base materials
Concrete (soft), Concrete (tough), Concrete (uncracked), Steel, Masonry (solid limestone brick)
Approvals
ITB
For use with (tools)
DX-IE
Minimum thickness of base material (concrete)
80 mm
Minimum thickness of base material (steel)
4 mm
Material
High-density polyethylene (HDPE), Halogen-free, Silicone-free
Colour
Black
Product class
Ultimate

Documents

Technical information
Test Report
pdf Direct Fastening Technology Manual, English [ 6 MB ]
pdf X-IE Data Sheet, English, German, Spanish, French [ 10.6 MB ]
pdf IFU_X-IE 9 [ 2.3 MB ]

Features & Applications

Features

  • Extremely quick insulation fastening system – up to five times faster than conventional methods
  • High-strength fastener with low failure rate
  • Collapsible section: no crushing of the insulation material
  • Gauge included for easy visual control of fastener driving depth
  • Excellent thermal efficiency in a one-step solution – no cap is required

Applications

  • Fastening insulation on facades
  • Ceiling insulation
  • Fastening insulation on cellar exteriors
  • Fastening mineral wool insulation
  • Fastening EPS insulation

For approval or certificate information, please see individual items.
