MFT-VSI S Brackets

Configurator
Technical Data
Documents
Features & Applications
Related Products
CG004079_v3 (3662934)
CG004079_v4 (3662935)
CG004080_v3 (3662936)
CG004080_v4 (3662943)
LCG004110_v2_cropped (3708754)
LCG004109_v1_cropped (3708749)
Bracket_MFT-VSI-220-S_6.5 (3663377)

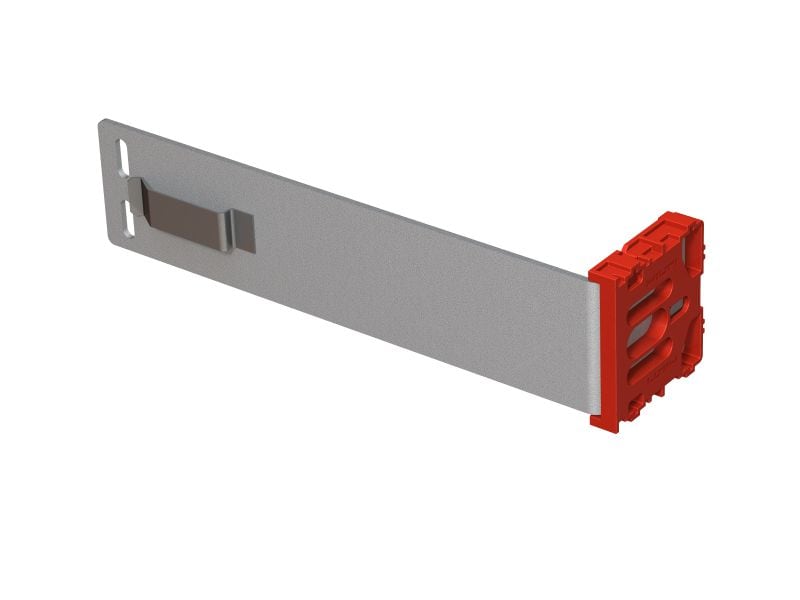

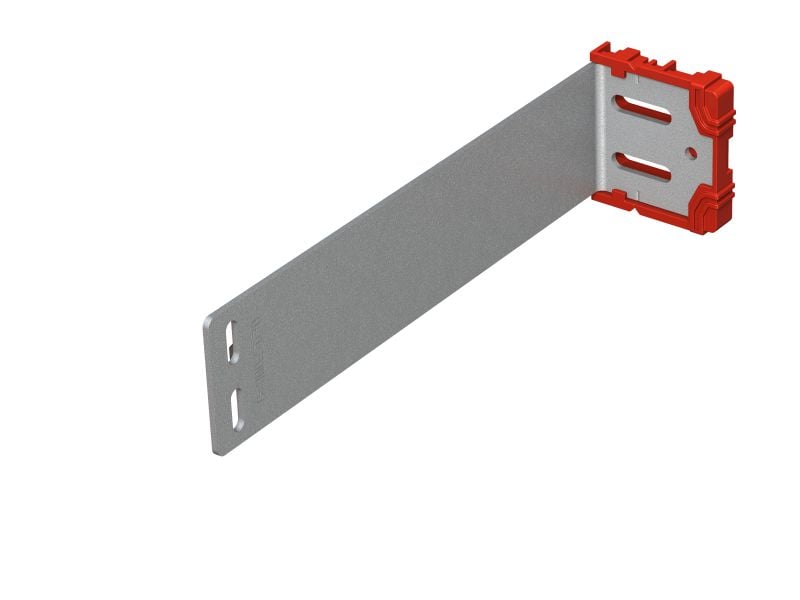

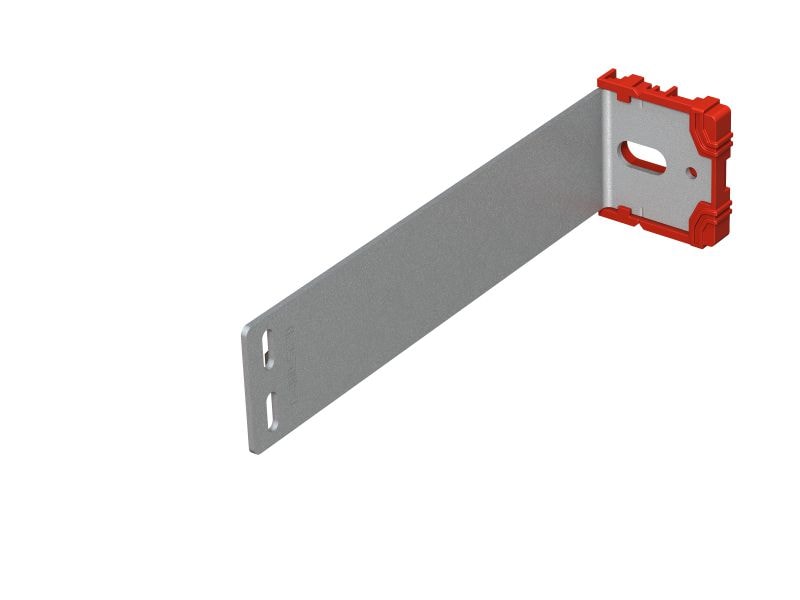

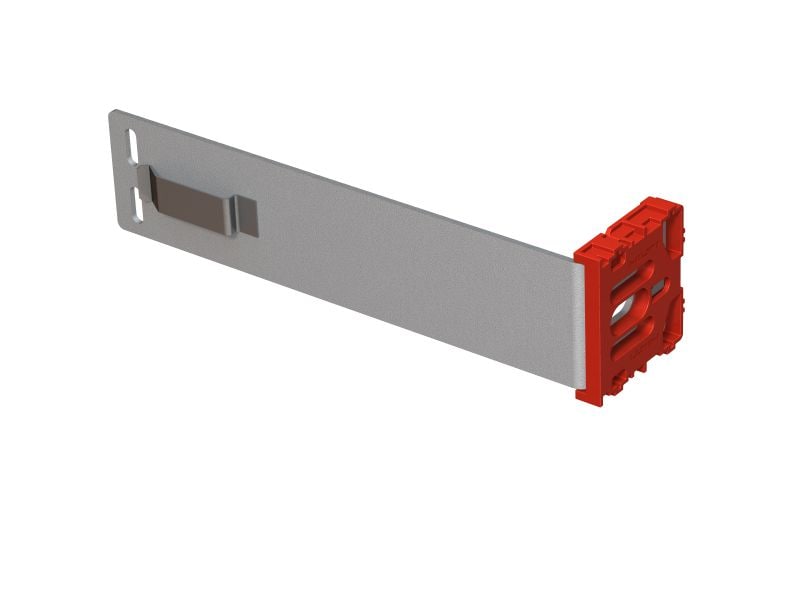

Small stainless steel bracket with pre-mounted isolator for installing ventilated façades on buildings with high thermal efficiency and fire compliance requirements

  • Material composition: Stainless steel, 1.4162 - EN 10088, S32102/S32101 - ASTM A959/UNS
  • Insulation material: Polypropylene copolymer
  • Thickness insulation material: 6 mm

Customers also searched for Façade bracket, rainscreen bracket, single bracket, double bracket or stainless steel bracket.

Choose options

Length
  • 60 mm
  • 80 mm
  • 100 mm
  • 120 mm
  • 140 mm
  • 160 mm
  • 180 mm
  • 200 mm
  • 220 mm
  • 240 mm
  • 260 mm
  • 280 mm
  • 300 mm
Hole diameter - D
  • 6.5 mm
  • 11 mm
Pack size
  • 15 pc
  • 25 pc
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
From £216.00

Technical Data

Details
Technical illustrations
Material composition
Stainless steel, 1.4162 - EN 10088, S32102/S32101 - ASTM A959/UNS
Insulation material
Polypropylene copolymer
Thickness insulation material
6 mm
Width
53 mm
Height
58 mm

Documents

Declaration of performance
Sustainability Documentation
Operating Instruction
pdf Declaration of performance Hilti-MFT CPR-1346 (EN) [ 158.6 KB ]

Features & Applications

Features

  • Improved performance – new duplex steel bracket with a pre-mounted isolator is designed for higher loads and corrosion resistance while reducing thermal bridging and carbon footprint
  • Increased design optimisation and value engineering – the expanded range of bracket sizes increase design efficiency to reduce installation costs and material wastage. Contact your local Hilti team for project-tailored engineering services
  • Higher productivity – the pre-mounted isolator saves on- site bracket assembly time and the "helping hand" clip temporarily holds profiles in place to help ensure correct installation
  • Versatile and easy-to-instal – the bracket's baseplate has 6.5mm or 11mm holes for fastening with anchors, screws or direct fastening (DX) and can fasten profiles at sliding points.
  • Certified and tested – EN 1090 (CE mark), fire rating A, heat loss assessed by an independent company according to EN ISO 10211

Applications

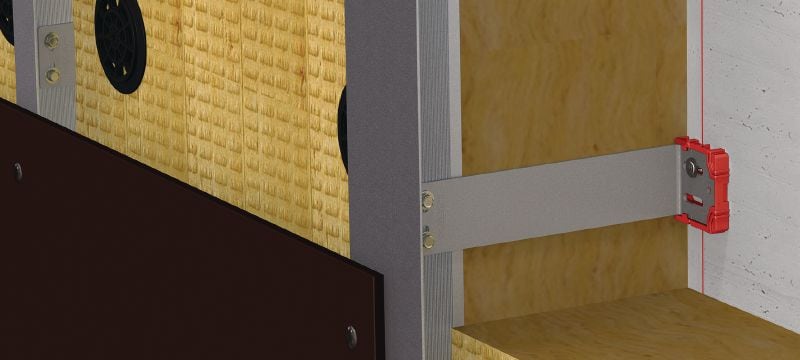

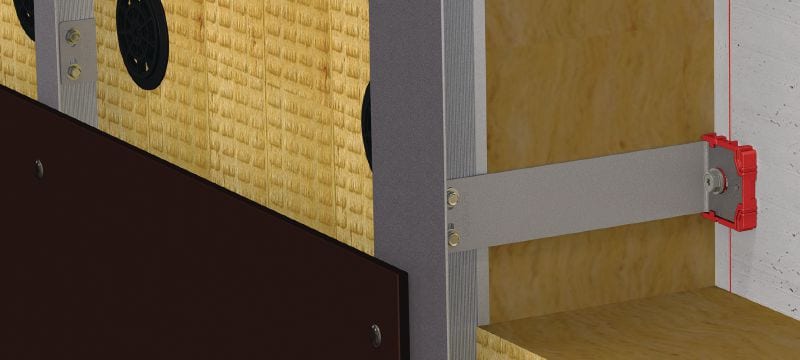

  • Mounting the entire ventilated façade system substructure on primary building structures made of concrete, masonry, SFS or wood
  • Ideal for projects requiring high levels of fire compliance, thermal efficiency and low carbon footprint requirements such as in green buildings
  • Accomodates fastening profiles with various configurations, allowing a large range of façade panel types to be installed
  • Suitable for all rainscreen cladding in corrosive (C3) environments

For approval or certificate information, please see individual items.
