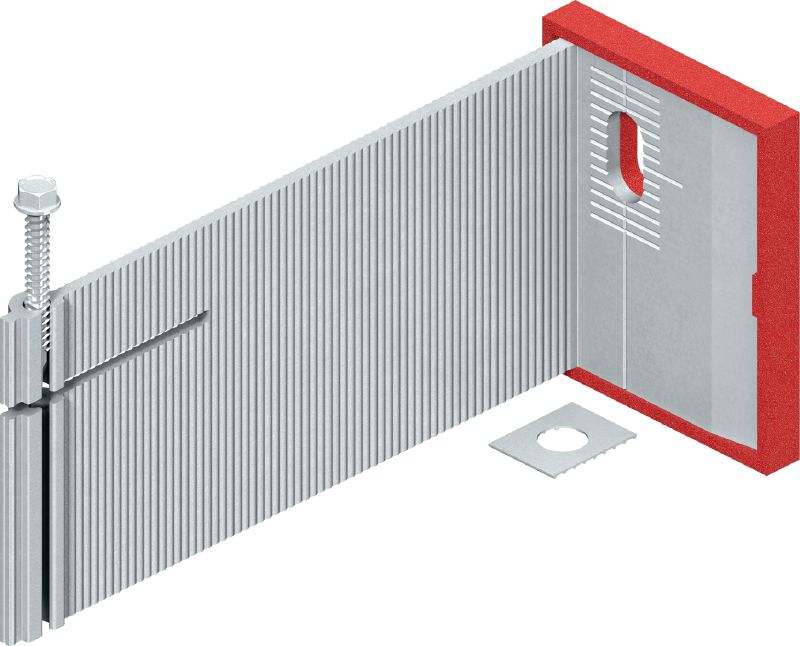

MFT-FOX HI Bracket
Horizontal aluminum bracket with thermal pad
- Material composition: EN AW-6063 T66
- Insulation material: Polypropylene
- Thickness insulation material: 5 mm
Customers also searched for Helping Hand Bracket, Rainscreen Cladding or Ventilated Facade.
Choose options
Length
- 60 mm
- 80 mm
- 100 mm
- 120 mm
- 140 mm
- 160 mm
- 180 mm
- 200 mm
- 220 mm
- 240 mm
- 260 mm
- 280 mm
- 300 mm
Hole diameter - D
- 5 mm
- 6.5 mm
- 11 mm
Pack size
- 25 pc
- 50 pc
- 100 pc
Quantity
Packs
Total Pieces
1
Discounted net
From £497.50
Technical Data
Material composition
EN AW-6063 T66
Insulation material
Polypropylene
Thickness insulation material
5 mm
Width
68 mm
Height
86 mm
Documents
Features & Applications
Features
- Pre-assembled A4 screw for easy fastening of support profile
- Pre-assembled insulator
- Up to 40 mm adjustability of the support profile
- Grooved washer for precise vertical alignment
- 11 mm hole for use of anchors on concrete and masonry

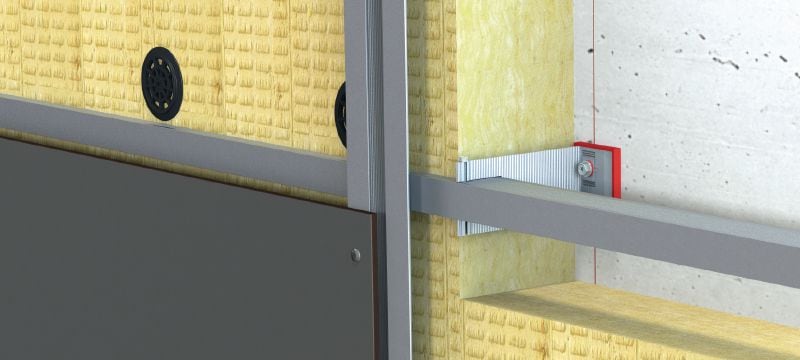

Applications
- Suitable for all facade cladding
- Single-layer system with horizontally-mounted support profiles
- Dual-layer system with horizontally- and vertically-mounted substructure profiles
For approval or certificate information, please see individual items.
Related Products
Pre-assembled plastic anchor for concrete and masonry with screw (carbon steel, hex head)
Single nail (stainless steel) for fastening to concrete and steel using powder-actuated nailers in corrosive environments
Self-drilling screw (A2 stainless steel) with 16 mm washer for thin metal-to-metal fastenings (up to 2mm)
