MFT-FOX VI S bracket

Configurator
Technical Data
Documents
Features & Applications
Related Products
LCG003219_v1 (221953)
L141277_cropped (224382)
L141282_cropped (224384)
L141310_cropped (224431)
L141371_cropped (224483)
21_MFT_FOX_VI_200_S_6_5 (221850)
22_MFT_FOX_VI_200_S_11 (221851)

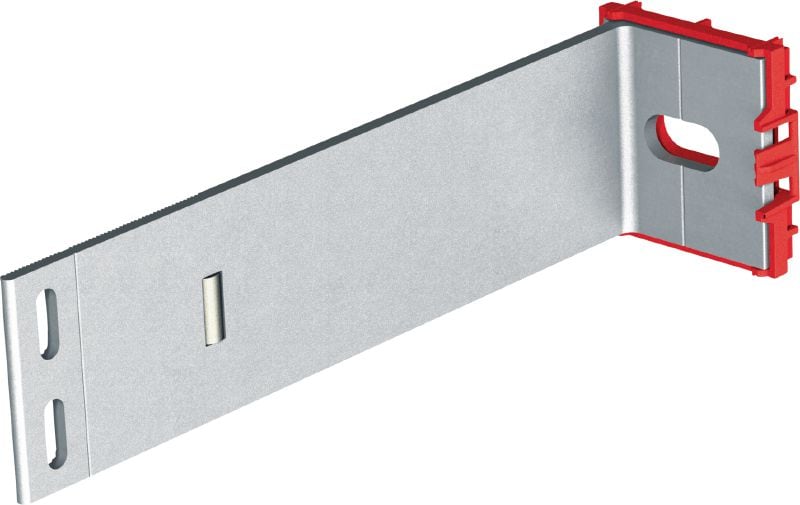

Versatile wall bracket for installing rainscreen façade substructures

  • Material composition: Aluminium EN AW-6063 T66
  • Insulation material: Polypropylene
  • Thickness insulation material: 6 mm

Choose options

Length
  • 40 mm
  • 60 mm
  • 80 mm
  • 100 mm
  • 120 mm
  • 140 mm
  • 160 mm
  • 180 mm
  • 200 mm
  • 220 mm
  • 240 mm
  • 260 mm
  • 280 mm
  • 300 mm
Hole diameter - D
  • 6.5 mm
  • 11 mm
Pack size
  • 50 pc
  • 100 pc
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
From £432.50

Technical Data

Details
Technical illustrations
Material composition
Aluminium EN AW-6063 T66
Insulation material
Polypropylene
Thickness insulation material
6 mm
Width
53 mm
Height
55 mm

Documents

HSE Information
Certificate
Approval document
Technical information
Declaration of performance
Sustainability Documentation
Operating Instruction
pdf ENVIRONMENTAL PRODUCT DECLARATION MFT-FOX V, English [ 819.9 KB ]

Features & Applications

Features

  • Labour saving – optimised bracket design and innovative fastening solutions help to lower your total cost of installation
  • Easier installation – optimised helping hand and clearer markings to simplify bracket fastening and rail alignment

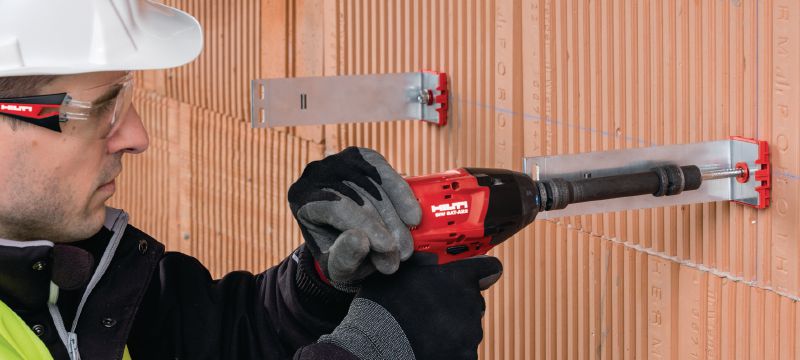

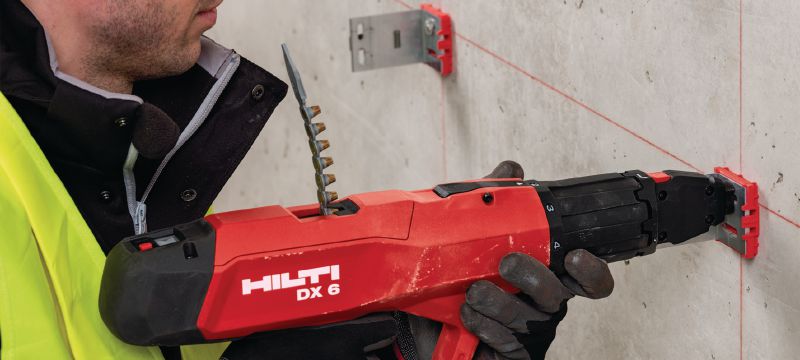

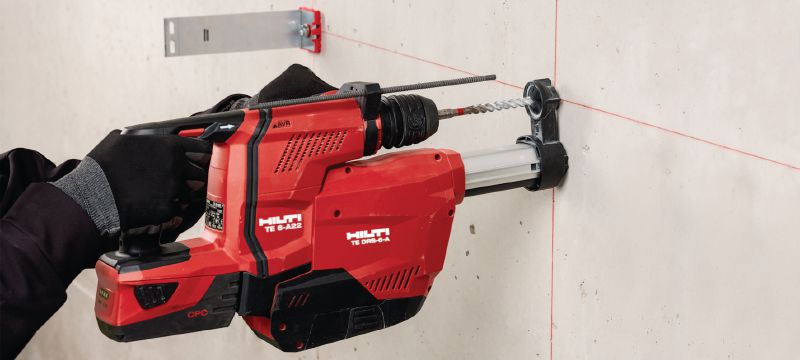

  • Multiple fastening options – can be installed using suitable anchors, screws or direct fastening (DX)
  • Pre-assembled bracket – arrives on-site ready to fasten to the wall or slab
  • Engineering support available – contact your local Hilti team for project-specific advice on optimising the ventilated façade substructure

Applications

  • Fastening rainscreen façade substructure to concrete, masonry, metal studs and wood

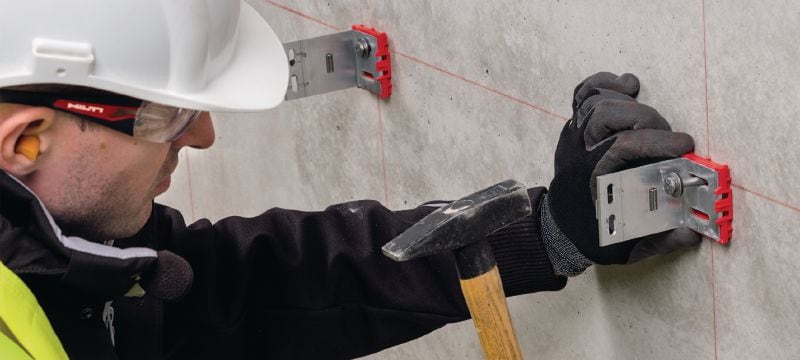

  • Mounting façade substructures on the primary structure (helping hand bracket)
  • Installing vertical support rails
  • Suitable for all façade cladding

For approval or certificate information, please see individual items.
