Resin anchor design on masonry wall with more than 4 anchors

Posted by  Stuart F about 2 years ago
Resin anchor design on masonry wall with more than 4 anchors

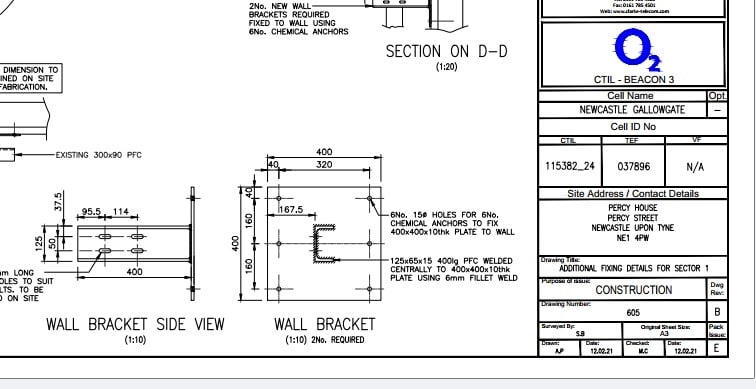

I have a site a bracket has been designed and installed with 6 anchors. I need to analyse this existing bracket and want to use profis is there some form of custom layout I can use?

Masonry fixings,more than 4

1 Reply
Posted by Ask HILTI Teamabout 2 years ago
Hilti Verified

Thanks for your question with Profis Engineering following the current design code for resin anchors within masonry
structures the anchor arrangement is limited to 1 , 2 or 4 anchor layouts with no option to customise outside of this criterion. I can only suggest checking a 4-bolt arrangement say the middle and top based upon a pro rata of the load to
assess if the masonry locally can resist the load however it would mean you using your own engineering judgement as to whether the masonry structure can resist the full load when applied.
