Edge connection failing. Any tips for designing with large moments and shears at edge of slab?

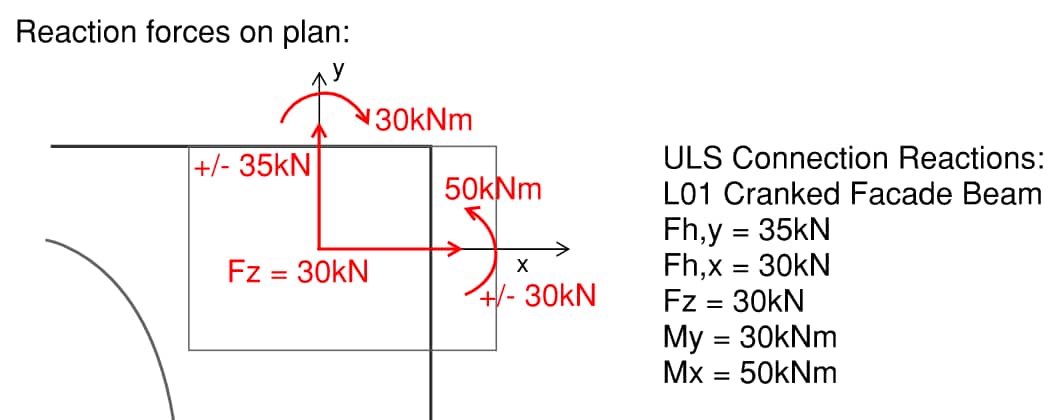

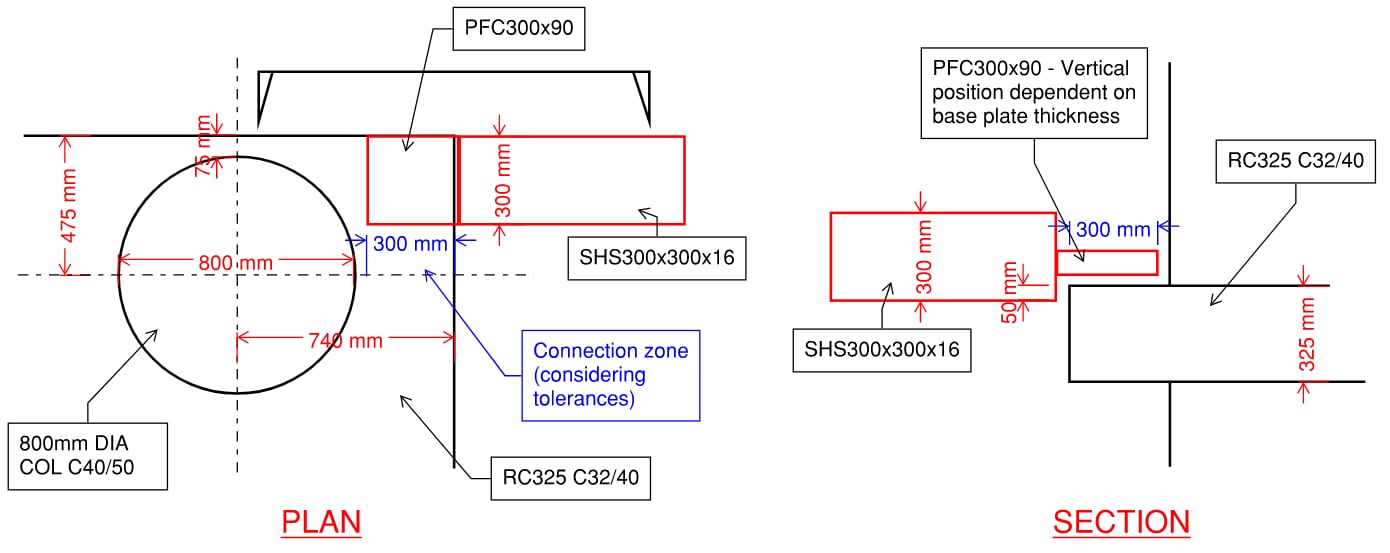

Designing connection of a steel facade beam to edge of concrete slab. Size of connection zone limited to 300mm due to concrete column nearby and construction tolerances. Steel facade beam is cranked creating a moment and shear force around both axis at connection. Currently connection in PROFIS is always failing in edge pull out. Please see attached images for forces and geometry constraints.
1 Reply
Posted by Ask HILTI Teamover 4 years ago
Thank you for your question. I'd suggest direct your question along with your .pe file to your local technical support team for assistance. You will be able to contact them via the website , business optimisation, contact your engineering team or if you are in the UK then you can email gbtas@hilti.com
