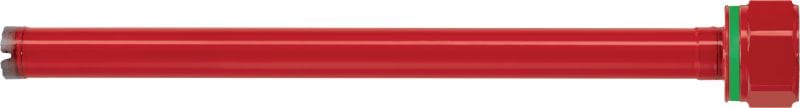

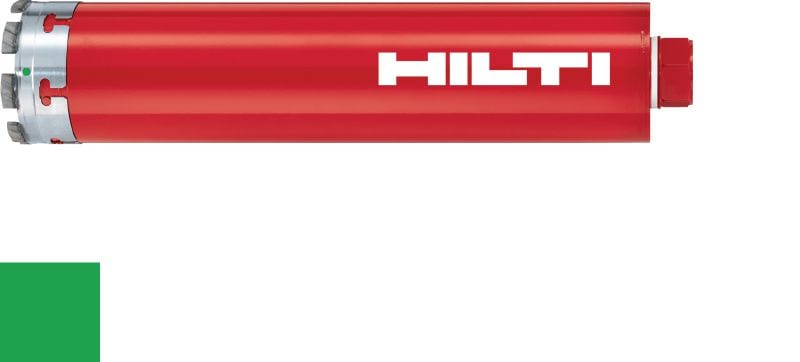

SPX-L abrasive core bit
Ultimate core bit for coring in very abrasive concrete – for <2.5 kW tools (without connection end)
- For use with: DD 120, DD 130, DD 150-U, DD 160
- Base materials: Concrete (abrasive)
- Drilling mode: Rig-mounted
Choose options
Diameter
- 32 mm
- 52 mm
- 57 mm
- 62 mm
- 67 mm
- 72 mm
- 77 mm
- 82 mm
- 87 mm
- 92 mm
- 102 mm
- 107 mm
- 112 mm
- 122 mm
- 132 mm
- 142 mm
- 152 mm
- 162 mm
- 182 mm
- 202 mm
Working length
- 320 mm
- 430 mm
Connection end
- BI (Hilti)
- BR (1/2 in)
- BS (1-1/4 in)
Pack size
- 1 pc
Quantity
Packs
Total Pieces
1
Discounted net
From £204.00
Technical Data
For use with
DD 120, DD 130, DD 150-U, DD 160
Base materials
Concrete (abrasive)
Drilling mode
Rig-mounted
Wet or dry operation
Wet
X-Change module
Yes (52-202 mm)
Laser-welded segments
Yes
Segment height
10 mm
Documents
Features & Applications
Features
- Hilti Equidist technology (35 mm diameter and above) – precisely positioned diamonds for unmatched drilling performance and constant drilling speeds over the entire life of the core bit
- Unique Hilti X-Change module system (52-202 mm diameter) enables easy core removal, fast stuck core bit recovery and on-site retipping using just a flat-tip screwdriver
- Save significant space and weight by replacing traditional core bits with a single barrel and multiple modules (X-Change module)
- Designed for the most challenging conditions, the core bit excels in concrete with a high rebar content
- Free your stuck core bit from the base material in less time and with less damage than when removing conventional core bits (X-Change module)
Applications
- Rig-based wet coring in very abrasive concrete
For approval or certificate information, please see individual items.
