new
TE-Y (SDS Max) Metric hammer drill bit
Premium SDS Max (TE-Y) hammer drill bit for high drilling performance in reinforced concrete (metric)
- Connection end: TE-Y (SDS-max)
- Base material: Reinforced concrete, Concrete, Masonry, Brick, Sand-lime block
- Working mode: Hammer drilling
premium
Choose options
Diameter
- 12 mm
- 16 mm
- 18 mm
- 20 mm
- 22 mm
- 24 mm
- 30 mm
- 35 mm
Working length
- 200 mm
- 220 mm
- 400 mm
- 420 mm
Length
- 320 mm
- 340 mm
- 520 mm
- 540 mm
Pack size
- 1 pc
Quantity
Packs
Total Pieces
1
Discounted net
From £56.60
Technical Data
Connection end
TE-Y (SDS-max)
Base material
Reinforced concrete, Concrete, Masonry, Brick, Sand-lime block
Working mode
Hammer drilling
Head shape
2-cutter and side cutters
Head material composition
Tungsten carbide
Product class
Premium
Features & Applications
Features
- Combination of 2-cutter head with side cutters for fast reinforced concrete drilling
- Double-fluted helix for effective and fast dust removal from the borehole
- Robust head design withstands rebar hits, reducing jamming
Applications

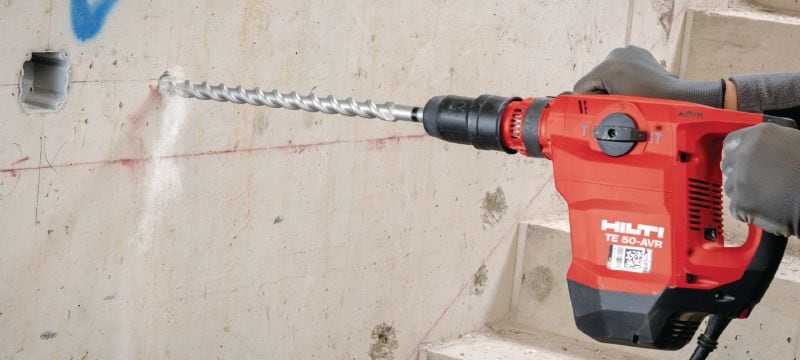

- Hammer drilling in reinforced concrete, concrete, masonry and other construction materials
- Drilling holes for all chemical anchor installation purposes
- Drilling anchor holes for all mechanical anchor installation purposes
- Installing rebar using Hilti injectable adhesive mortar
For approval or certificate information, please see individual items.
Related Products
Extension for SDS Max (TE-Y) hammer drill bits - 2 components required (TE-FY extension plus TE-Y-AD adapter)
