Nuron

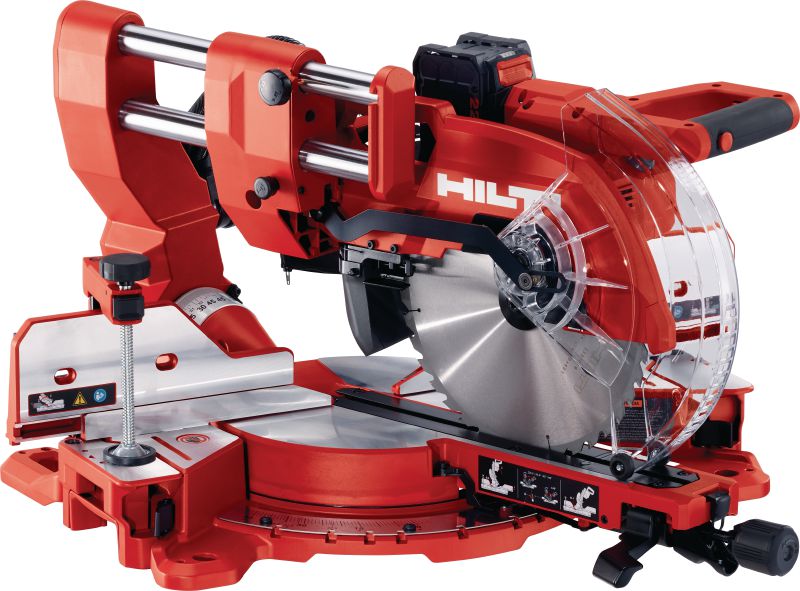

SM 60-22 cordless Mitre Saw
Dual-bevel sliding compound Mitre Saw with a cross cut capacity up to 100x355mm│4"x 13-3/4" (Nuron battery platform)
- Blade diameter: 305 mm
- Base material: Wood, Plastic
- No load RPM: gear 1: 4300 rpm
Technical Data
Blade diameter
305 mm
Base material
Wood, Plastic
No load RPM
gear 1: 4300 rpm
Guiding rail compatibility
No
Max. bevel angle
48 °
Max. mitre angle
60 °
Maximum Cross Cut Capacity
100 x 355 mm
A-weighted emission sound pressure level
101 dB (A) 1
Triaxial vibration value for sawing into wood (ah,W)
2.5 m/s² 2
- According to the applicable product standard (see the Operating Instruction for more details)
- According to the applicable product standard (see Operating Instruction for more details)
Documents
Features & Applications
Features
- Precision cutting – miter (≤ 60° right ≤ 52° left) and bevel (up to 48°) adjusts in both directions for smooth compound cuts and accurate straight cuts throughout the saw's lifetime
- Variable speed control – 6 speeds (2000-4300 RPM) allow you to match blade speed with material to optimise cutting quality, performance and battery life when paired with our blades
- Ergonomic and efficient – forward-sliding rail saves space while front-facing bevel adjustments help streamline your workflow
- Integrated LED shadow queue – queue up your workpiece for faster and more accurate cuts, even in low-light conditions
- Safer and cleaner – fast blade brake and effective dust removable for a safer and cleaner working environment
Applications
- Commercial wood framing, especially precise, serial cuts in beams, structural elements and temporary supports
- Clean cuts for concrete formwork such as tilt walls and architectural concrete
- Bevel and miter cuts for case work, mill work and interior woodwork such as cabinets, molding and trim
- Cutting aluminium extrusions on-site for building envelope applications
- Straight cuts in PVC, ABS and occasional cuts in aluminium and conduit for flush connections in plumbing and electrical installations
For approval or certificate information, please see individual items.
