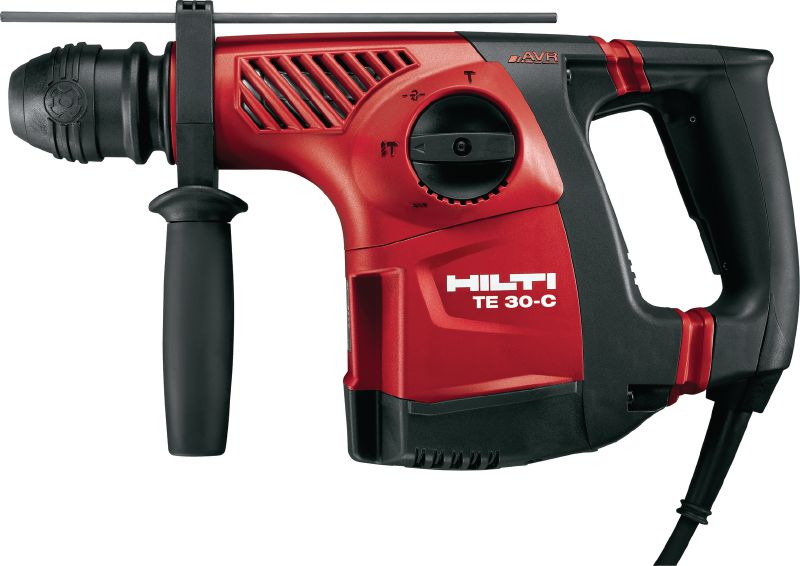

TE 30-C-(AVR) Rotary hammer
Rotary hammer TE 30-C-AVR 230V #402590
Powerful SDS Plus (TE-C) rotary hammer for heavy-duty concrete drilling and corrective chiselling, with Active Vibration Reduction (AVR)
- Weight according to EPTA-Procedure 01/2003 without battery: 4.2 kg
- Optimum hammer drilling range: 10 - 20 mm
- Single impact energy: 3.3 J
Customers also searched for TE-C, hammerdrill or SDS.
Choose options
Pack size
- 1 pc
Quantity
Packs
Total Piece
1
Discounted net
£1,200.00
£1,200.00 / 1 Piece
Technical Data
Weight according to EPTA-Procedure 01/2003 without battery
4.2 kg
Optimum hammer drilling range
10 - 20 mm
Single impact energy
3.3 J
Working mode
Hammer drilling, Drilling only, Chiselling, Chisel setting
Hammer drilling diameter range
5 - 28 mm
Hammer drilling RPM
750 rpm
Full hammering frequency
4080 impacts/minute
Functionality
Active Vibration Reduction (AVR), Chiselling, Removable chuck, Reverse mode, Depth gauge
Triaxial vibration value for hammer drilling into concrete (ah,HD)
12 m/s² 1
Triaxial vibration for chiselling in concrete
12 m/s² 2
A-weighted emission sound pressure level
90 dB (A) 3
Rated input power
850 W
Dimensions (LxWxH)
379 x 93 x 213 mm
- According to the applicable product standard (see the Operating Instruction for more details)
- According to the applicable product standard (see the Operating Instruction for more details)
- According to the applicable product standard (see the Operating Instruction for more details)
Documents
Features & Applications
Features
- Includes drilling-only and chiselling-only modes for maximum versatility
- Active Vibration Reduction (AVR) makes the tool less tiring to use – helping to increase daily productivity
- Exceptionally high power-to-weight ratio
- Superior working comfort thanks to perfect balance, low weight, compact design and low vibration
- Ruggedly built from high-grade materials and components for unbeaten, extra-long lifetime
Applications
- Drilling anchor and through-holes in concrete and masonry, diameter range 4-28 mm, recommended range 8-20 mm
- Drilling anchor holes, openings in concrete, stone and masonry, diameter range 4-28 mm; recommended diameter range 12-20 mm
- Light chiselling on brick and block, corrective chiselling and finishing on concrete
- Drilling in wood and metal using the optional keyless chuck and smooth-shank drill bits up to 13 mm diameter
- Driving anchor screws and concrete screw anchors
