Nuron

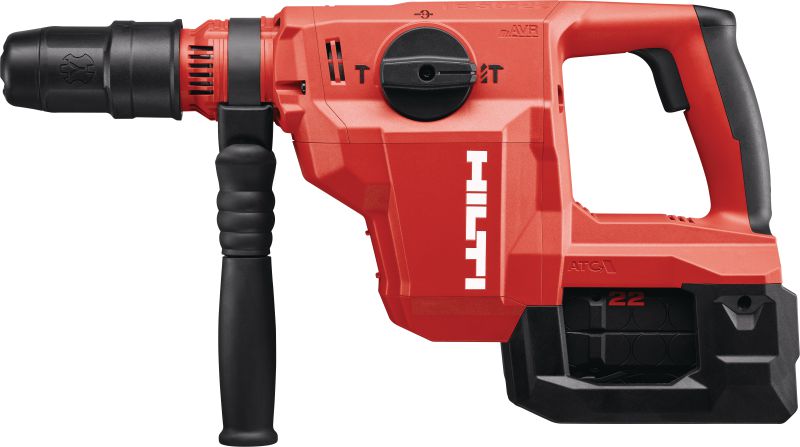

TE 50-22 Cordless rotary hammer
Compact and cordless SDS Max (TE-Y) rotary hammer drill with lighter weight, more power and less vibration for drilling and chiseling in concrete (Nuron battery)
- Weight according to EPTA-Procedure 01/2003 without battery: 5.5 kg
- Optimum hammer drilling range: 16 - 35 mm
- Hammer drilling diameter range: 12 - 82 mm
Technical Data
Weight according to EPTA-Procedure 01/2003 without battery
5.5 kg
Optimum hammer drilling range
16 - 35 mm
Hammer drilling diameter range
12 - 82 mm
Single impact energy
6 J
Hammer drilling RPM
360 rpm
Full hammering frequency
3510 impacts/minute
Functionality
Active Torque Control (ATC), Active Vibration Reduction (AVR), Chiselling, Hammer drilling
Triaxial vibration value for hammer drilling into concrete (ah,HD)
8.6 m/s² 1
Triaxial vibration for chiselling in concrete
6.8 m/s² 2
A-weighted emission sound pressure level
99 dB (A) 3
A-weighted emission sound power level
107 dB (A) 4
- According to the applicable product standard (see the Operating Instruction for more details)
- According to the applicable product standard (see the Operating Instruction for more details)
- According to the applicable product standard (see the Operating Instruction for more details)
- According to the applicable product standard (see the Operating Instruction for more details)
Documents
Features & Applications
Features
- Power and versatility for tough jobs - broad range of inserts combined with brushless motor for higher performance drilling, chiseling, and coring
- Work more comfortably - ergonomic design and Active Vibration Reduction (AVR) technology helps reduce user fatigue on the jobsite
- Safer work environments - Hilti´s innovative Active Torque Control (ATC) provides more protection from tool over-rotation when drill bits get stuck
- Drop protection - more robust battery plus metal battery garage protect against rotary hammer failures after accidental drops
- On the Nuron battery platform - cordless tools without compromise thanks to longer-lasting batteries and a range of services to keep you more productive, today and tomorrow
Applications

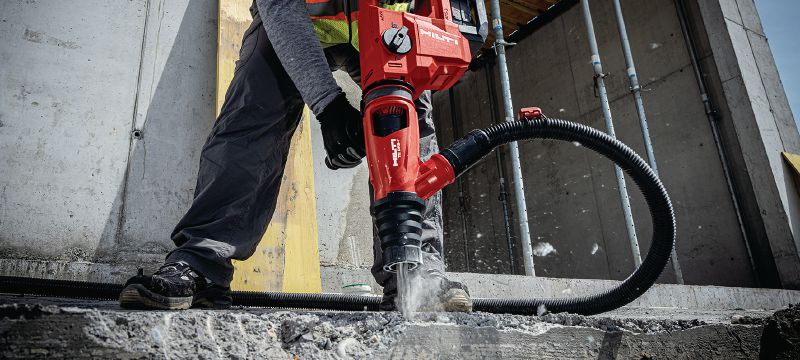

- Versatile rotary hammer drill for concrete construction work and building services installation

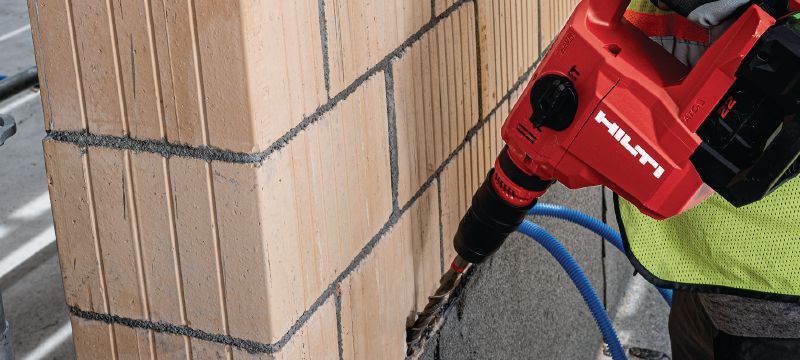

- Drilling holes for pipe penetrations or electrical outlets through concrete and masonry.
- Chiseling in concrete, masonry, tiles and plaster for demolition
- Ideal for repetitive drilling in rebar
For approval or certificate information, please see individual items.
Related Products
Nuron
Top-performance 22V Li-ion battery to maximise the output and run time of heavy-duty Nuron hammer drilling and cutting tools
Top-speed charger optimised for high-capacity Nuron B 22-170 and B 22-255 batteries

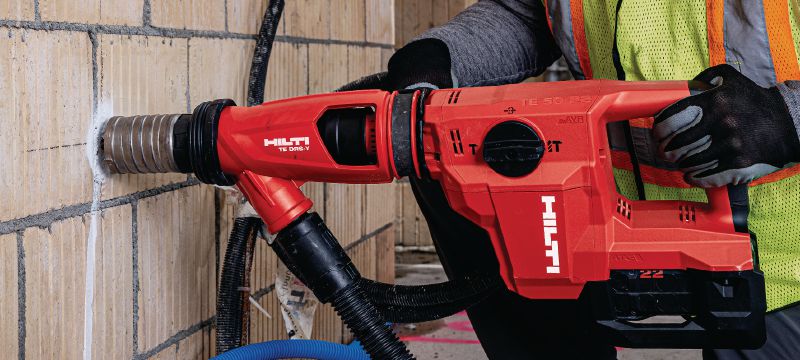

Dust removal system for concrete drilling and chiselling with Hilti SDS Max (TE-Y) rotary hammers
