Nuron

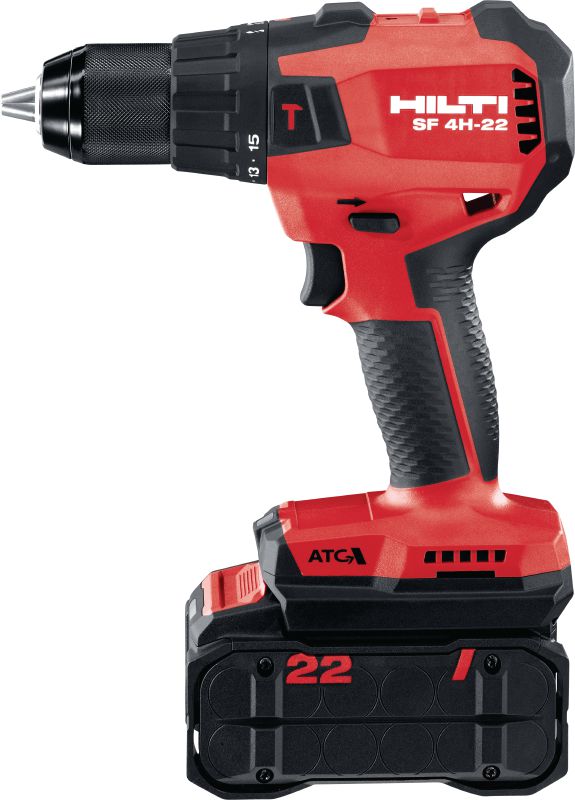

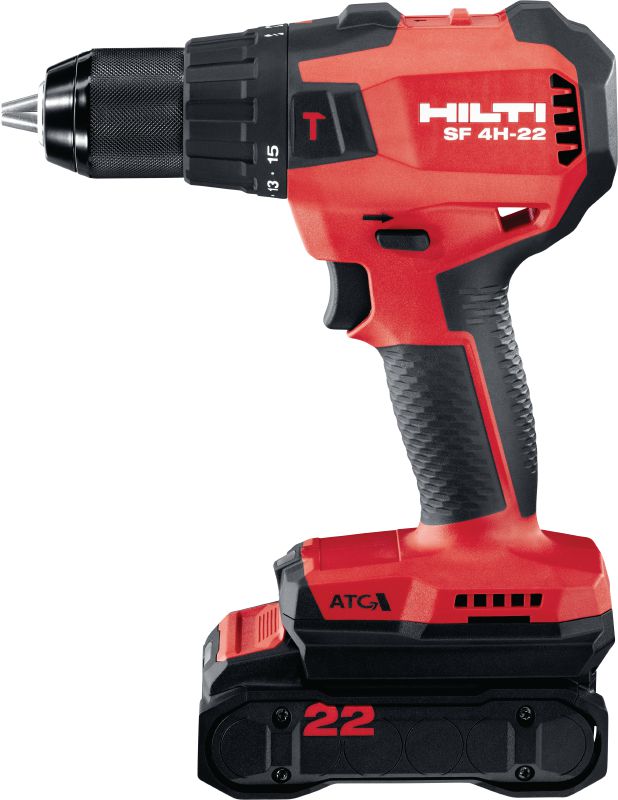

Nuron SF 4H-22 Cordless hammer drill driver

Cordl. drill driver SF 4H-22 box #2253855

Configurator
Technical Data
Documents
Features & Applications
Related Products
Services
L125840 (226234)
L142202_cropped (227343)
L142141_cropped (227279)
L142132_cropped (227288)

Compact-class hammer drill driver with Active Torque Control for everyday drilling and driving, especially in hard-to-reach places (Nuron battery platform)

  • Maximum torque (soft/hard joint): 36 Nm (soft joint), 62 Nm (hard joint)
  • No load RPM: gear 1: 610 rpm; gear 2: 2100 rpm
  • Chuck clamping range: 2 - 13 mm

Customise your kit

Tool body
Tool body with cardboard box
How many kits do you want to order?
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
£165.00

Technical Data

Maximum torque (soft/hard joint)
36 Nm (soft joint), 62 Nm (hard joint)
No load RPM
gear 1: 610 rpm; gear 2: 2100 rpm
Chuck clamping range
2 - 13 mm
Number of gears
2
Torque increments
15
Dimensions (LxWxH)
190 x 68 x 215 mm
Tool body weight
1.4 kg
A-weighted emission sound pressure level
92 dB (A) 1
Rated voltage
21.6 V
Triaxial vibration value for drilling into metal (ah,D)
1.4 m/s² 2
  1. According to the applicable product standard (see the Operating Instruction for more details)
  2. According to the applicable product standard (see Operating Instruction for more details)

Documents

pdf Operating Instruction SF 4-22 (02), SF 4H-22 (02), Arabic, cn, Danish, English, Spanish, Estonian, Finnish, French, Japanese, Kazakh, Korean, Lithuanian, Latvian, Norwegian, Portuguese, Russian, Swedish, Turkish, Ukrainian, Chinese [ 3.3 MB ]

Features & Applications

Features

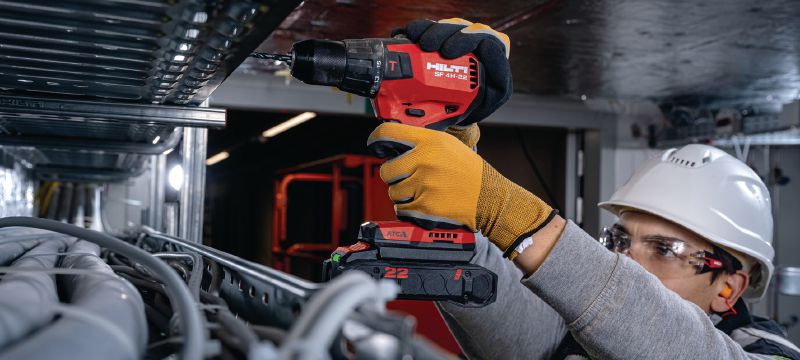

  • More productive work – compact and capable cordless hammer drill driver for working in tight spaces or overhead – including on masonry – without compromising on efficiency
  • Faster drilling and driving – delivers the highest-RPM and torque from any Hilti compact hammer drill driver thanks to high-output Nuron batteries
  • Built to last – full metal chuck, brushless motor and optimised cooling to better withstand intense use under tough jobsite conditions
  • Advanced safety features – Active Torque Control (ATC) helps to prevent the tool body from uncontrolled spinning if the drill bit sticks, and an LED work light in the base provides a clear view of your work area
  • On the Nuron battery platform – cordless tools without compromise thanks to longer-lasting batteries, energy-saving drill bits and a range of services to keep you more productive, today and tomorrow

Applications

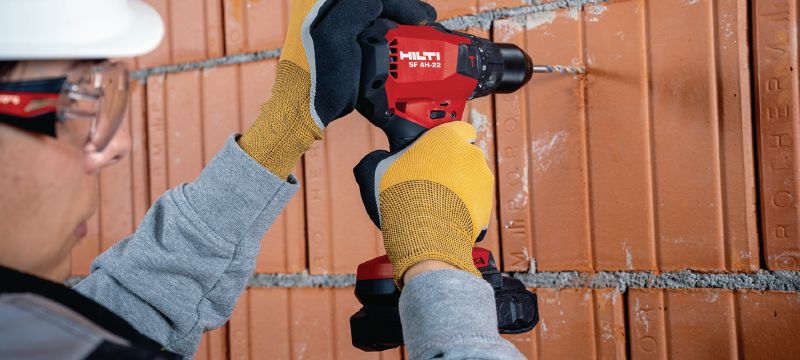

  • Hammer drilling in brick, masonry and aerated concrete (max. diameter 8 mm)
  • Drilling in wood (max. diameter 25 mm) and steel (max. diameter 8 mm)

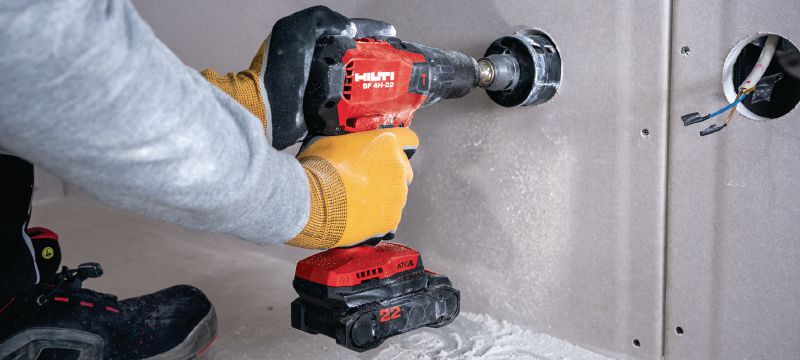

  • Hole sawing in wood (max. diameter 82 mm)
  • Drilling with auger and spade bits in wood (max. diameter 25 mm)
  • Driving screws in steel (max. diameter 4.8 mm)

Services

Fleet Management

  • Monthly usage fee covering all tool, service and repair costs helping to ensure absolute cost control and back-office efficiency.
  • High-performing tools and latest technology help to increase jobsite productivity.
  • Loan tools during repair to reduce downtime.
  • Temporary tools for peak times and special applications help to reduce investments.
  • Theft coverage helps to reduce financial risk and unexpected expenses.
