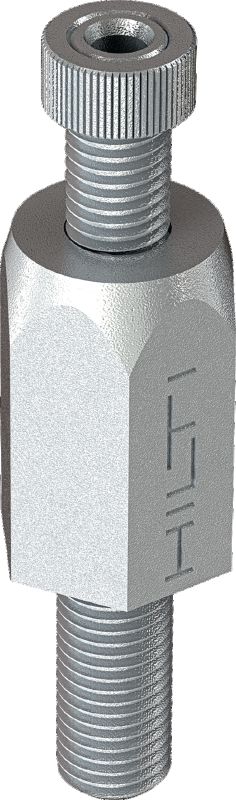

MW-CL Channel lock
Channel lock MW-CL 2.0-3.0 #2277562
Adjustable channel lock for fastening strut to wire rope when assembling trapeze
- Material composition: Body: brass
- Surface finish: Indoor Coated - Electro galvanised
- Environmental conditions: Dry indoor conditions (C1) Indoor with temporary condensation (C2)
Choose options
Diameter - D
- 3 mm
Length - L
- 58 mm
Pack size
- 10 pc
Quantity
Packs
Total Pieces
10
Discounted net
£29.90
£2.99 / 1 Piece
Technical Data
Material composition
Body: brass
Surface finish
Indoor Coated - Electro galvanised
Environmental conditions
Dry indoor conditions (C1) Indoor with temporary condensation (C2)
Diameter
3.8 mm
Length
58 mm
Width - B
15 mm
Height - H
19 mm
Documents
pdf Declaration of performance MW (EN) [ 258.1 KB ]
Features & Applications
Features
- Shorter installation time – wire suspension kits give you a much faster alternative to threaded rod
- Extra-secure wire locking – pre-mounted nuts can be tightened to help fix the wire rope securely in place
- Easier to adjust – self-closing channel lock can be adjusted tool-free, making levelling, retrofitting and long drop lengths much simpler
- Aesthetic – wire rope suspension is a discreet installation method for exposed building services and open soffits
- Compatible with Hilti strut channels – you can get solutions for virtually every MEP installation from one supplier
Applications

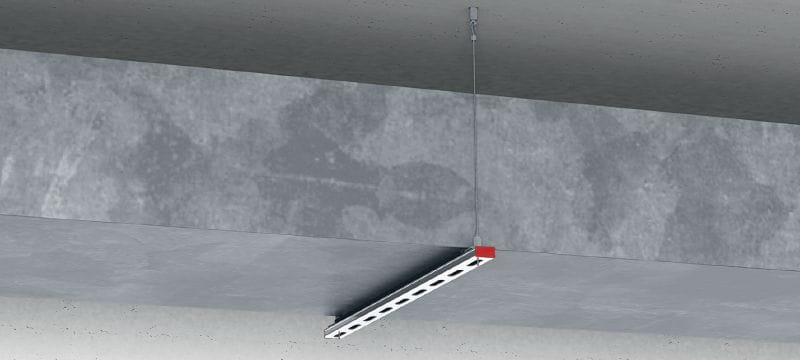

- Suspending strut trapeze from concrete or steel
- Suitable for use in dry, indoor environments only
