MQN-B channel connector

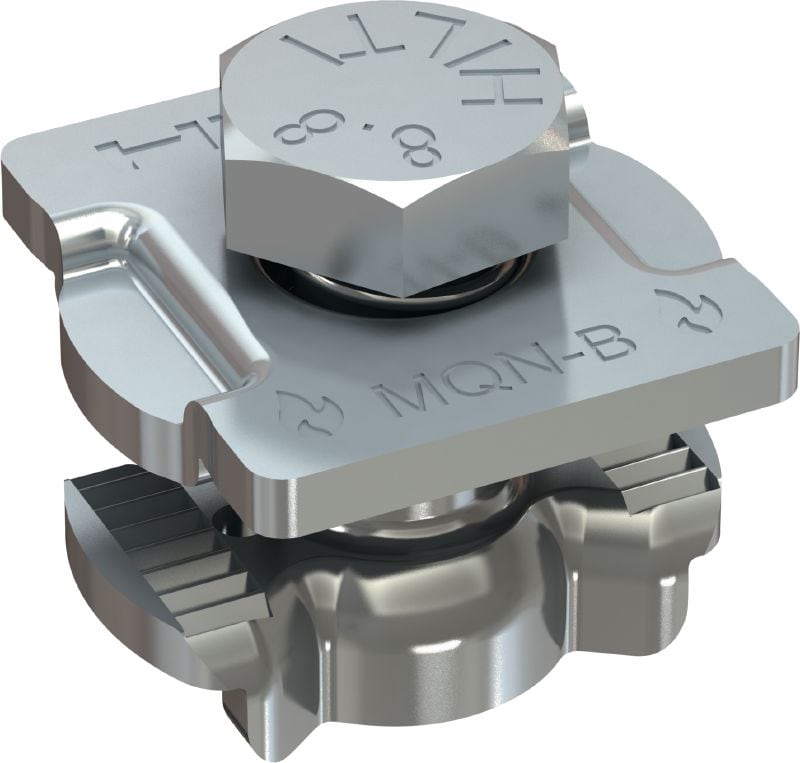

Channel connector MQN-B #2184853

Configurator
Technical Data
Documents
Features & Applications
Related Products
LCG001764_v1 (187390)
eps-file
L_CG001822_v3_cropped (188119)
L108451_cropped (187521)

Ultimate galvanised channel connector – fire-tested according to ETA

  • Approvals: ETA
  • Product class: Premium
  • Tightening torque: 40
premium

Choose options

Pack size
  • 50 pc
 Product options
Quantity
Packs
Total Pieces
50
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
£385.00
£7.70 / 1 Piece

Technical Data

Approvals
ETA
Product class
Premium
Tightening torque
40
Material composition
Plate: steel S355J2 DIN EN 10025-2, Nut: S355MC - DIN EN 10149-2, Bolt: grade 8.8 - DIN EN ISO 898
Surface finish
Indoor Coated - Electro galvanised
Environmental conditions
Dry indoor conditions (C1) Indoor with temporary condensation (C2)

Documents

Approval document
Declaration of performance
Operating Instruction
pdf ETA_Modular_support_system_V1.4_en, English [ 14.4 MB ]
pdf 10_04_2022 Eurocode Product Qualification Document MQ System [ 2.3 MB ]

Features & Applications

Features

  • Designed to be simple, compact and time-saving
  • Universal – one connection element for all MQ strut channels
  • ETA-approved push button channel connector

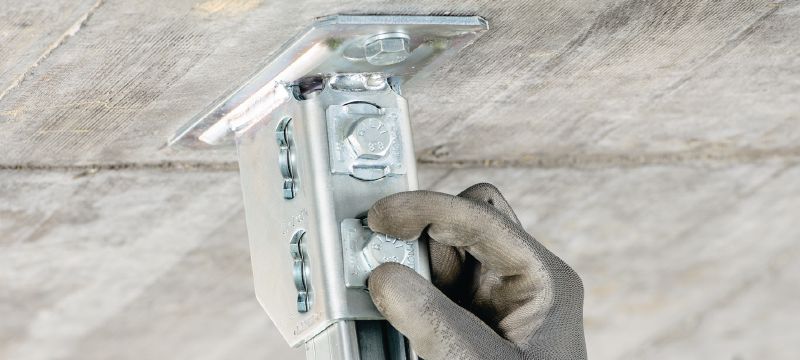

  • Holds securely once it has been pressed, turned and tightened correctly
  • Visible fire mark for easier recognition of fire-tested parts

Applications

  • heavy-duty connections of angles to channels
  • Connections requiring fire approval according to ETA

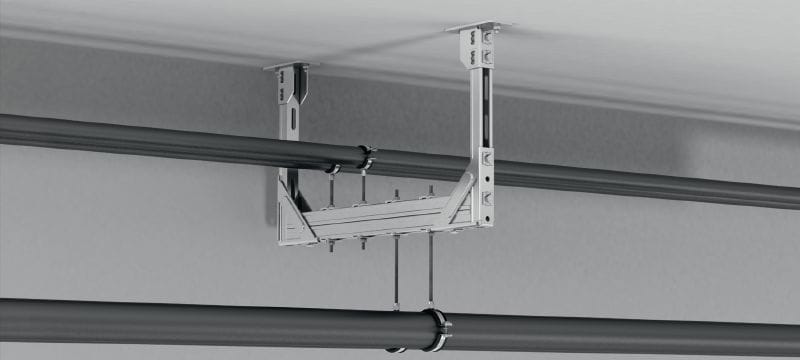

  • U-frame/crossbeam structures
  • Connecting strut channels and structural elements
  • One-part fastener replaces a spring nut, bolt and washer for quick installation
