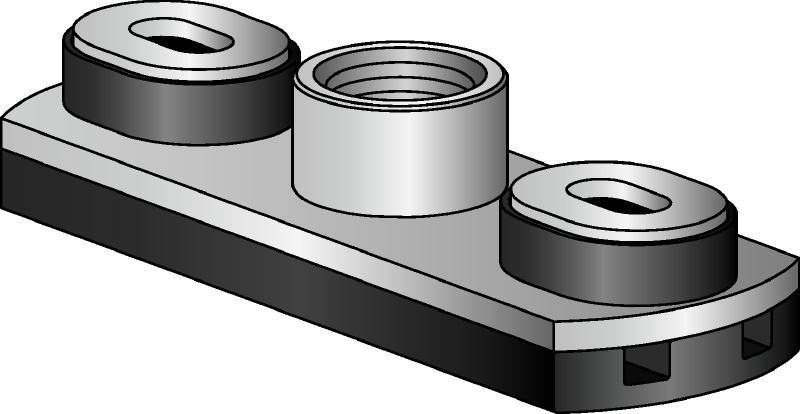

Galvanised base plate for use when sound insulation is required

  • Thread connection - M: M10, M12
  • Height - H: 35 mm
  • Maximum tensile load - F: 2 kN

Choose options

Thread connection - M
  • M10, M12
Height - H
  • 35 mm
Maximum tensile load - F
  • 2 kN
Pack size
  • 10 pc
Product options
Quantity
Packs
Total Piece
10
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net

£183.00

£18.30 / 1 Piece

Technical Data

Thread connection - M
M10, M12
Height - H
35 mm
Maximum tensile load - F
2 kN
Material composition
DD11 MOD - HN 547, S235JR - DIN EN 10025
Surface finish
Indoor Coated - Electro galvanised
Environmental conditions
Dry indoor conditions (C1) Indoor with temporary condensation (C2)
Insulation material
EPDM
Number of holes
2
Weight
0.22 kg

Features & Applications

Features

  • Provides acoustic insulation by decoupling the pipes from the base material

Applications

  • Fastening medium-duty pipes to concrete with two fastening points and sound insulation
  • Recommended for use in dry, interior environments
