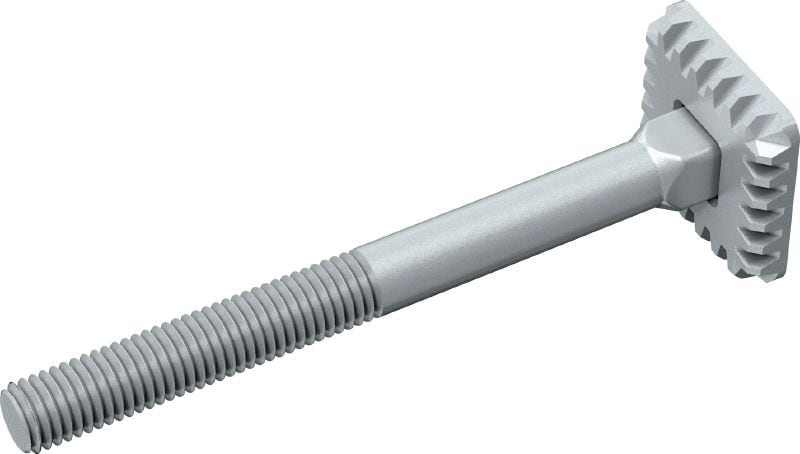

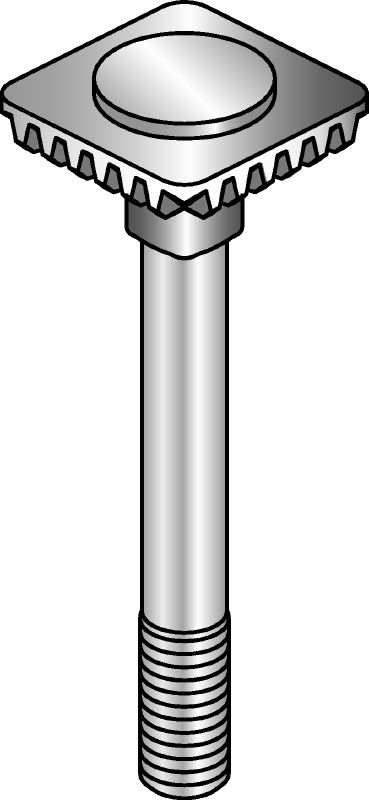

MIA-EH Screw
Hot-dip galvanised (HDG) screw with an integrated toothed plate for easier fastening and one-handed adjustment of MI and MIQ connectors
- Material composition: Bolt: 8.8 grade steel; toothed plate: EN-GJMW-400-5 - DIN EN 1562, EN-GJMW-450-7 - DIN EN 1562
- Surface finish: HDG: 45 µm - DIN EN ISO 1461
- Environmental conditions: Outdoor, low to moderate pollution (C3 / C4 - low)
Technical Data
Material composition
Bolt: 8.8 grade steel; toothed plate: EN-GJMW-400-5 - DIN EN 1562, EN-GJMW-450-7 - DIN EN 1562
Surface finish
HDG: 45 µm - DIN EN ISO 1461
Environmental conditions
Outdoor, low to moderate pollution (C3 / C4 - low)
Tightening torque
84 Nm
Documents
Features & Applications
Features
- Parts designed for easy assembly (shaped to prevent rotation)
- Integrated toothed plate allows easier one-handed adjustment
Applications
- Fastening connectors that are part of the MI and MIQ modular support systems
For approval or certificate information, please see individual items.
