MIC-MI/MQ M8

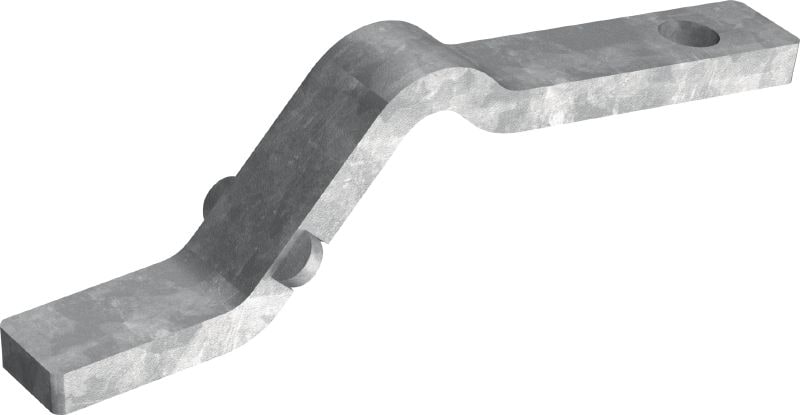

Connector MIC-MI/MQ-M8 #304882

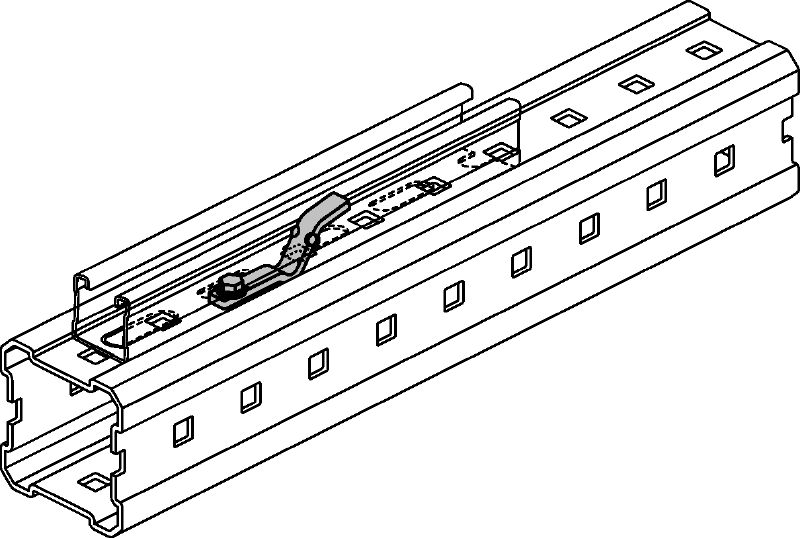

Hot-dip galvanised (HDG) connector for fastening MQ strut channels parallel to MI girders
- Weight: 0.06 kg
- Surface finish: HDG: connector 55 µm - DIN EN ISO 1461; bolt 45 µm - DIN EN ISO 1461
- Environmental conditions: Outdoor, low to moderate pollution (C3 / C4 - low)
Choose options
Modular Girder Type
- 90, 120
Pack size
- 5 pc
Quantity
Packs
Total Pieces
5
Discounted net
£95.70
£19.14 / 1 Piece
Technical Data
Weight
0.06 kg
Surface finish
HDG: connector 55 µm - DIN EN ISO 1461; bolt 45 µm - DIN EN ISO 1461
Environmental conditions
Outdoor, low to moderate pollution (C3 / C4 - low)
Tightening torque
24 Nm
Documents
pdf EN 1090 Certificate of conformity of the factory production control, English [ 348.6 KB ]
Features & Applications
Features
- Allows direct connection to MQ strut channels
- Keyed hold for optimum transmission of forces and moments
Applications

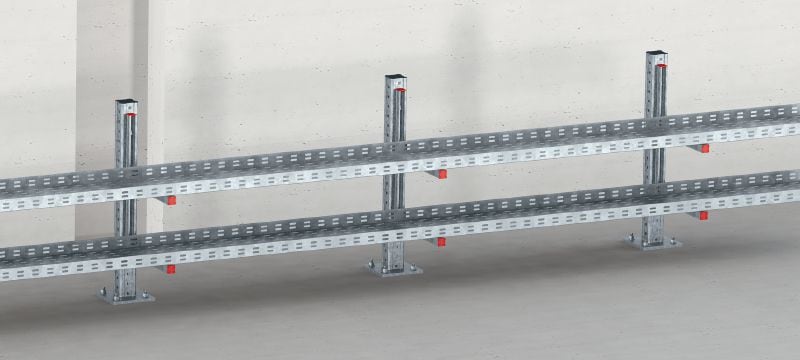

- Direct connection of MQ installation channels to the MI system
- Applications in the chemical, pharma and petrochemical industries or in incineration plants and power stations
