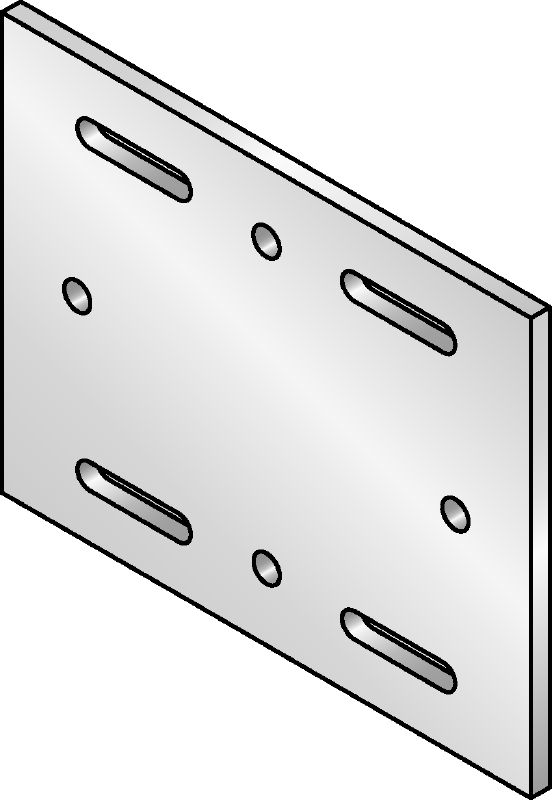

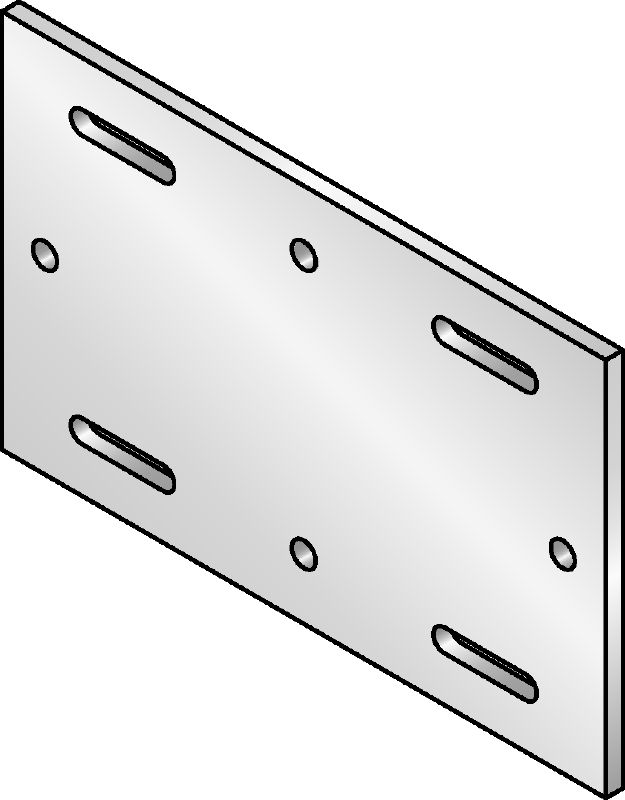

MIQB-S Baseplate
Hot-dip galvanised (HDG) baseplate for fastening MIQ girders to steel
- Material composition: D11 MOD - HN 547, S235JR - DIN EN 10025
- Surface finish: Hot-dip galvanized 55 µmDIN EN ISO 1462
- Environmental conditions: Outdoor, low to moderate pollution (C3 / C4 - low)
Technical Data
Material composition
D11 MOD - HN 547, S235JR - DIN EN 10025
Surface finish
Hot-dip galvanized 55 µmDIN EN ISO 1462
Environmental conditions
Outdoor, low to moderate pollution (C3 / C4 - low)
Documents
Features & Applications
Features
- Designed to cover a large range of flange widths
- Girder connection point can be positioned as desired
Applications
- For use with MIQ-90 girders in combination with MIQC-SC connectors
- Connections to steel
For approval or certificate information, please see individual items.
