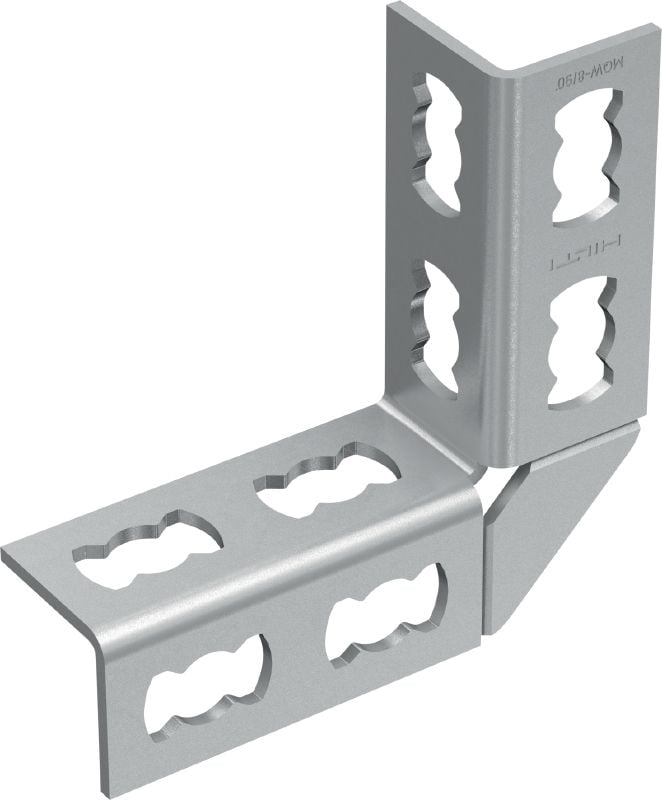

MQW-8/90 Angle bracket
8-hole Angle MQW-8/90 #369659

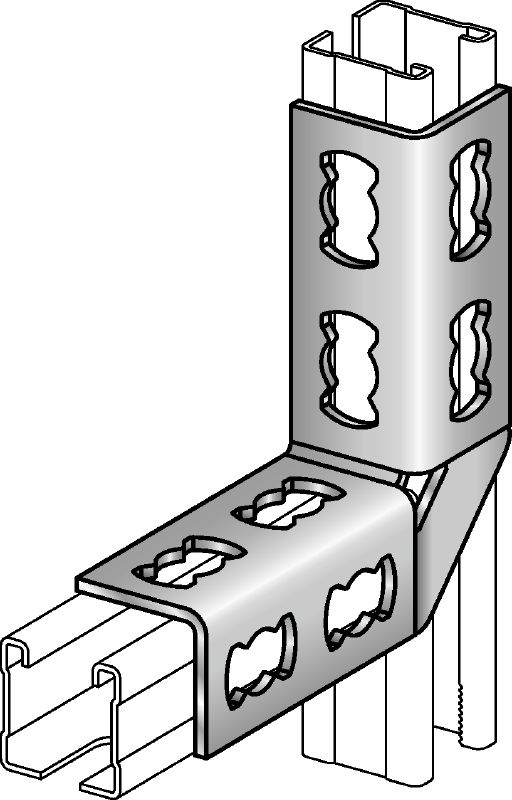

Galvanised 90-degree angle for connecting multiple MQ strut channels
- Approvals: VDE test potential equalisation MQ
- Material composition: S235JR - DIN EN 10025
- Surface finish: Indoor Coated - Electro galvanised
Choose options
Angle
- 90 °
Number of holes
- 8
Pack size
- 10 pc
Quantity
Packs
Total Pieces
10
Discounted net
£474.20
£47.42 / 1 Piece
Technical Data
Approvals
VDE test potential equalisation MQ
Material composition
S235JR - DIN EN 10025
Surface finish
Indoor Coated - Electro galvanised
Number of holes
8
Material thickness
4 mm
Environmental conditions
Dry indoor conditions (C1) Indoor with temporary condensation (C2)
Angle
90 °
Weight
430 g
Documents
pdf Corrosion handbook, English [ 9.6 MB ]
Features & Applications
Features
- Compatible with push button channel connectors – for much faster, adaptable assembly
- Adjustable – easily fit and repositioned along strut channels
- Universal: few parts for all applications
- Easy to handle
Applications
- Assembling frames or connections with 45/135-degree angles
- Compatible with multiple MQ strut channels
- Recommended for use in dry, interior environments
