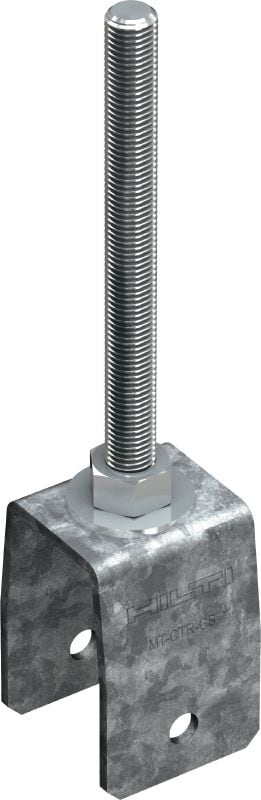

Hanger for suspending MT-70 and MT-80 girders from threaded rod to create heavy-duty MEP and HVAC trapeze

  • Material composition: Q355 or better steel
  • Surface finish: Outdoor Coated - HDG
  • Material thickness: 4 mm

Technical Data

IS_MT-CTR-GS_0001 (2192674)
Material composition
Q355 or better steel
Surface finish
Outdoor Coated - HDG
Material thickness
4 mm
Environmental conditions
Outdoor, low to moderate pollution (C3 / C4 - low)

Documents

Features & Applications

Features

  • Simpler inventory – these hangers make it possible to use standard MT girders in more situations
  • Corrosion resistance – hot-dip galvanised to help protect against moisture and chemical corrosion
  • Compatible with MT Thread Forming Bolt channel connectors – for much faster, adaptable assembly
  • Part of the Hilti MT system – an economical, all-in-one solution for virtually all modular MEP support structures

Applications

  • Assembling trapeze for MEP and HVAC installations subject to loads too heavy for strut trapeze

For approval or certificate information, please see individual items.
