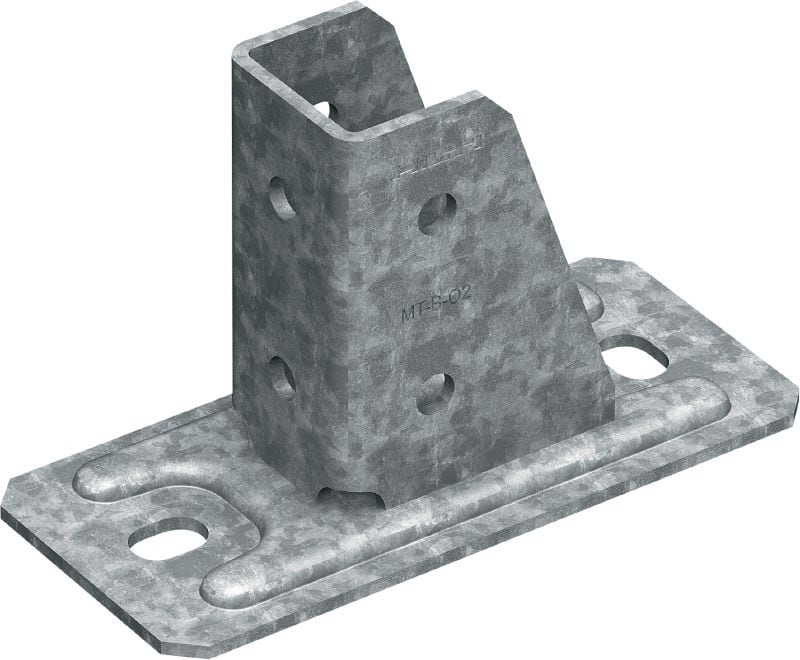

MT-B-O2 OC Baseplate

2-hole Baseplate MT-B-O2 OC

LCG003356_v1 (218286)
03_IS_MT-B-O2_0001 (218664)

Base connector for anchoring strut channel structures to concrete and steel, for outdoor use with low pollution

  • Material composition: Q235 or better steel
  • Surface finish: Hot-dip galvanised - for outdoor use
  • Material thickness: 4 mm

Choose options

Pack size
  • 12 pc
 Product options
Quantity
Packs
Total Pieces
12
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
Price loading error occurred

Please contact us

Technical Data

Material composition
Q235 or better steel
Surface finish
Hot-dip galvanised - for outdoor use
Material thickness
4 mm
Weight
1.03 kg
Environmental conditions
Outdoor, low to moderate pollution (C3 / C4 - low)

Documents

pdf ETA-23-0826 Static MT Base Connectors, English [ 2.4 MB ]
pdf ETA-23-0104_Fire_Frame_MT_Trapeze_EN, English [ 4.8 MB ]
pdf Hilti ETA Fire Booklet_09.2023, English [ 13.4 MB ]
pdf UKCA - MT Channel System - Declaration of Performance BS EN1090, English [ 288 KB ]

Features & Applications

Features

  • Part of the Hilti MT system – an economical, all-in-one solution for virtually all modular MEP support structures
  • Easy to install – compatible with the Hilti MT Twist-Lock, a faster alternative to spring nuts for assembling a modular support system
  • Adjustable – two slotted anchor holes to simplify baseplate positioning and fastening
  • Adaptable – unlike welding, modular post bases allow you to modify strut channel framing for future MEP requirements
  • Part of a complete Hilti solution – compatible with our direct fastening and anchoring solutions

Applications

  • Fastening MT strut channel to concrete floors, walls or ceilings
  • Fastening MT strut channel to structural steel
  • Anchoring metal framing and MEP support structures with medium loads to a base material
  • Suitable for use in moderately corrosive environments
