MT-C-T A OC Corner bracket

Connector MT-C-T A OC adj transv #2272057

Configurator
Technical Data
Documents
Features & Applications
Related Products
LCG003300_v1 (218250)
07_IS_MT-C-T_A_0001 (218637)

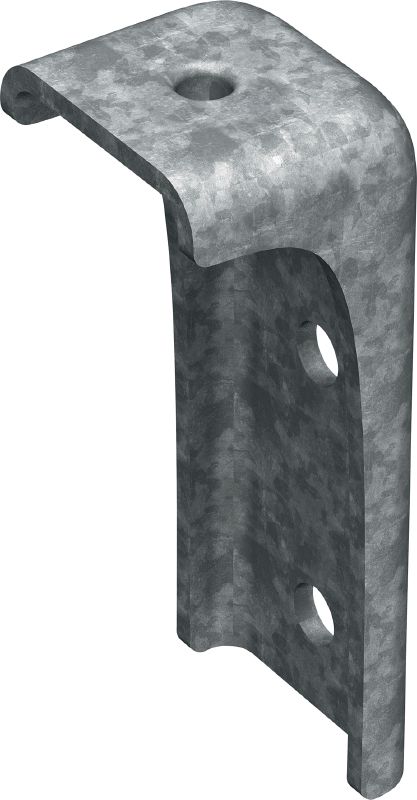

Adjustable angle bracket for assembling strut channels in a T shape, for outdoor use with low pollution

  • Material composition: Q355 or better steel
  • Surface finish: Hot-dip galvanised - for outdoor use
  • Material thickness: 4 mm

Choose options

Pack size
  • 20 pc
 Product options
Quantity
Packs
Total Pieces
20
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
£282.80
£14.14 / 1 Piece

Technical Data

Details
Technical illustrations
Material composition
Q355 or better steel
Surface finish
Hot-dip galvanised - for outdoor use
Material thickness
4 mm
Weight
0.32 kg
Environmental conditions
Outdoor, low to moderate pollution (C3 / C4 - low)

Documents

Certificate
Approval document
Documentation
Technical information
Declaration of performance
Sustainability Documentation
Operating Instruction
pdf EN 1090 Certificate of conformity of the factory production control MT, English [ 348.7 KB ]

Features & Applications

Features

  • Part of the Hilti MT system – an economical, all-in-one solution for virtually all modular MEP support structures
  • Easy to install – compatible with the Hilti MT Twist-Lock, a faster alternative to spring nuts for assembling a modular support system
  • Adjustability – provides up to 25 mm of flexibility during fixation of horizontal strut elements across the top of vertical strut elements
  • Adaptable – unlike welding, angle brackets allow you to modify strut channel framing during installation and for future MEP requirements
  • Extensive software support – PROFIS Modular Support Engineering, the MEP Support Selector, Revit® families, and plug-ins for Staad Pro® and Smart 3D® are all available to streamline design and ordering

Applications

  • Fastening horizontal MT strut channel to vertical MT girders, such as for integrated raised floors in data centers
  • Assembling 2D metal framing for MEP support structures
  • Suitable for use in moderately corrosive environments
