MVA-Z ventilation support

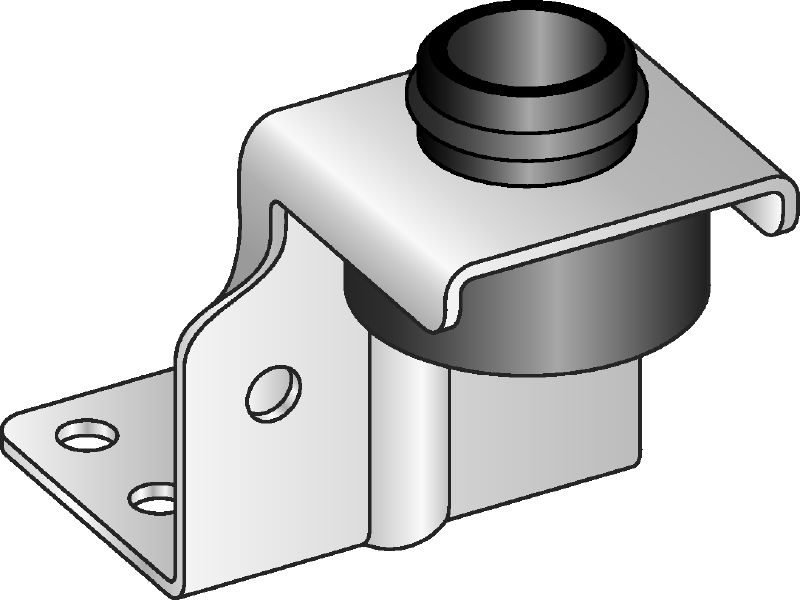

Air duct bracket MVA-Z #386532
Galvanised air duct bracket for fastening light ventilation ducts overhead
- Approvals: Acoustic insulation DIN 4109 inspected
- Thread connection - M: M8, M10
- Noise reduction: 18 dB (A)
Choose options
Thread connection - M
- M8, M10
For use with
- Threaded rod: M8/M10
Maximum load - F
- 500 N
Pack size
- 50 pc
Quantity
Packs
Total Piece
50
Discounted net
£107.50
£2.15 / 1 Piece
Technical Data
Approvals
Acoustic insulation DIN 4109 inspected
Thread connection - M
M8, M10
Noise reduction
18 dB (A)
For use with
Threaded rod: M8/M10
Maximum load - F
500 N
Material composition
DD11 steel - DIN EN 10111, EPDM
Surface finish
Indoor Coated - Electro galvanised
Environmental conditions
Dry indoor conditions (C1) Indoor with temporary condensation (C2)
Hardness insulation material
60° ±5° Shore A
Temperature resistance
-40 - 110 °C
Documents
Features & Applications
Features
- Easy-to-install threaded rod suspension system for ventilation ducts
- Built-in acoustic insulation with through-hole and preassembled U-washer for M8/M10 threaded rods
- Height adjustment possible even after installation
- Insulation can be installed over the bracket
- Hole size/shape suitable for self-drilling screws (4.2) and blind rivets
Applications

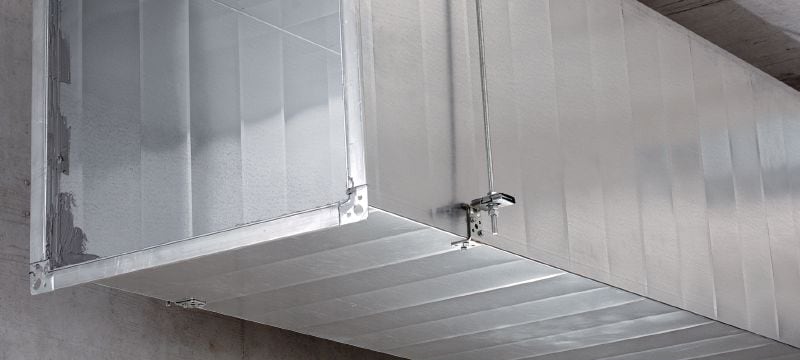

- Fastening rectangular air ducts to ceilings
